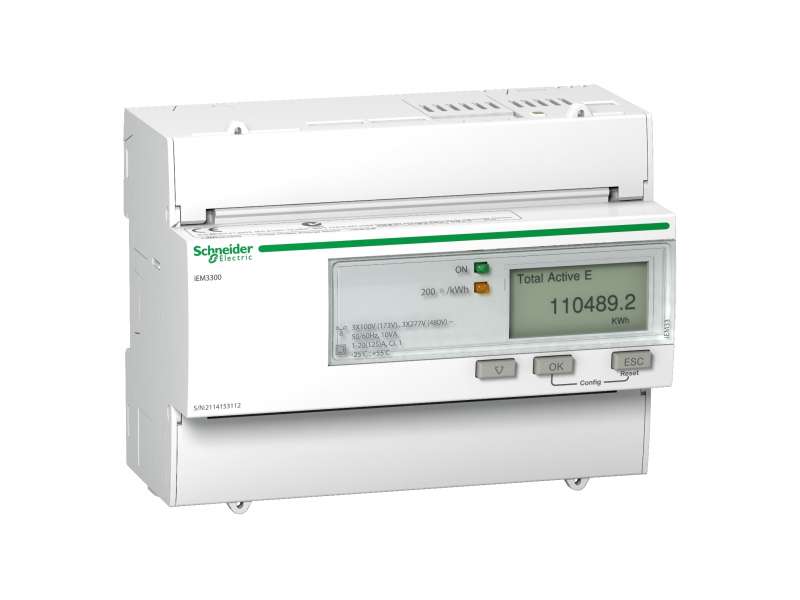

Schneider Electric IEM3300 multimetar - 125 A;A9MEM3300
IEM3200 energy meter - CT...
VAT-exclusive price: 35.315,00 |
VAT-inclusive price: 42.378,00 |
IEM3200 energy meter - CT
| range |
Acti 9
|
|
|---|---|---|
| range of product |
Acti 9 iEM3000
|
|
| device short name |
IEM3200
|
|
| product or component type |
Energy meter
|
| poles description |
1P + N
3P 3P + N |
|
|---|---|---|
| type of measurement |
Active energy
|
|
| device application |
Sub billing
Partial meter |
|
| accuracy class |
Class 0.5S active energy conforming to IEC 62053-22
Class 0.5S active energy conforming to IEC 61557-12 Class C active energy conforming to EN 50470-3 |
|
| input type |
External CT 1 A or 5 A
|
|
| [In] rated current |
5 A
1 A |
|
| rated voltage |
100…277 V
173…480 V |
|
| network frequency |
60 Hz
50 Hz |
|
| technology type |
Electronic
|
|
| display type |
LCD display
|
|
| sampling rate |
32 samples/cycle
|
|
| measurement current |
1…32767000 mA
|
|
| maximum value measured |
99999999 MWh
|
|
| communication port protocol |
-
|
|
| communication port support |
-
|
|
| local signalling |
Green indicator light: power ON
Yellow flashing LED: accuracy checking |
|
| number of inputs |
0
|
|
| number of outputs |
0
|
|
| mounting mode |
Clip-on
|
|
| mounting support |
DIN rail
|
|
| connections - terminals |
Current circuit: screw terminals 6 mm² cable(s)
Voltage circuit: screw terminals 2.5 mm² cable(s) |
|
| overvoltage category |
III
|
|
| standards |
IEC 62053-23
IEC 62053-22 IEC 61036 IEC 61557-12 UL 61010-1 IEC 61010 |
|
| product certifications |
CE conforming to IEC 61010 (safety)
CE conforming to EN 61557-12 (power monitor) CE conforming to IEC 61326-1 (EMC) CULus conforming to UL 61010 (safety) CULus conforming to ANSI C12.20 (sub-meter) EAC (sub-meter) RCM conforming to NMI M 6-1 (sub-meter) UL |
| IP degree of protection |
IP40 front panel: conforming to IEC 60529
IP20 body: conforming to IEC 60529 |
|
|---|---|---|
| pollution degree |
2
|
|
| relative humidity |
5…95 % at 50 °C
|
|
| ambient air temperature for operation |
-25…55 °C - IEC
|
|
| ambient air temperature for storage |
-40…85 °C
|
|
| operating altitude |
< 2000 m
|
|
| colour |
White
|
|
| 9 mm pitches |
10
|
|
| width |
90 mm
|
|
| height |
95 mm
|
|
| depth |
69 mm
|
| Package 1 Weight |
0.335 kg
|
|
|---|---|---|
| Package 1 Height |
8.500 cm
|
|
| Package 1 width |
9.600 cm
|
|
| Package 1 Length |
10.500 cm
|
-
Acti 9 iEM3000 A9MEM3300
