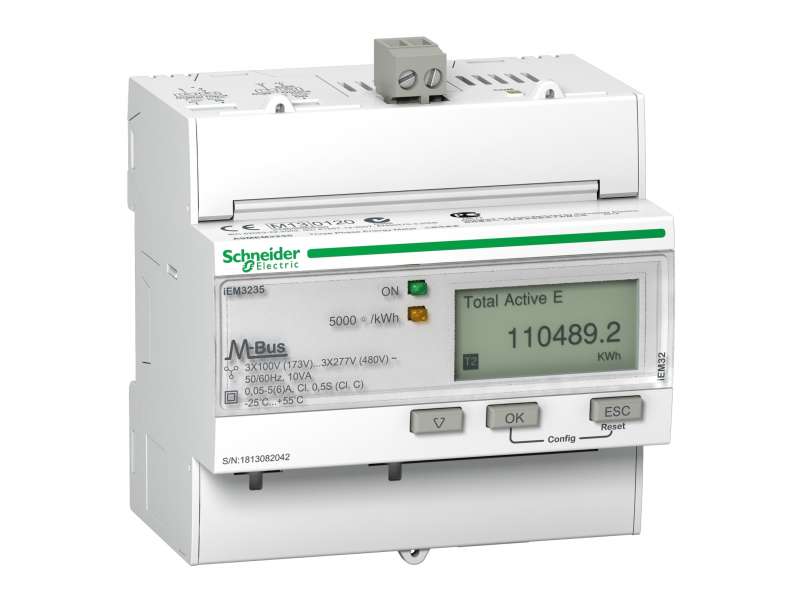

Name: Schneider Electric IEM3235 multimetar - CT - M-bus - 1 digitalni I - 1 digitalni O - višetarifni;A9MEM3235
Brand: Schneider Electric
SKU: A9MEM3235
Price: 46017.60 RSD
Availability: OutOfStock

Schneider Electric IEM3235 multimetar - CT - M-bus - 1 digitalni I - 1 digitalni O - višetarifni;A9MEM3235

IEM3235 energy meter - CT - M-bus - 1 digital I - 1 digital O - multi-tariff - MID...

Brand: Schneider Electric
Product Code: A9MEM3235
Availability: Check availability

VAT-exclusive price: 38.348,00

VAT-inclusive price: 46.017,60

Qnt:

IEM3235 energy meter - CT - M-bus - 1 digital I - 1 digital O - multi-tariff - MID

Main
range	Acti 9
range of product	Acti 9 iEM3000
device short name	IEM3235
product or component type	Energy meter

Complementary
poles description	3P 1P + N 3P + N
type of measurement	Active and reactive energy Active and reactive power Current Voltage
metering type	Active, reactive, apparent energy (signed, four quadrant)
device application	Sub billing Partial meter Multi-tariff
accuracy class	Class 0.5S active energy conforming to IEC 62053-22 Class 0.5S active energy conforming to IEC 61557-12 Class C active energy conforming to EN 50470-3
input type	External CT 1 A or 5 A
[In] rated current	5 A 1 A
rated voltage	100…277 V 173…480 V
network frequency	60 Hz 50 Hz
technology type	Electronic
display type	LCD display
sampling rate	32 samples/cycle
measurement current	1…32767000 mA
maximum value measured	99999999 MWh
tariff input	Tariff (4)
communication port protocol	M-bus at 300, 600, 1200, 2400, 4800 and 9600 bauds, insulation 3750 V
communication port support	Screw terminal block: M-Bus
typical current consumption	Communication M-bus: 2.3 mA
local signalling	Green indicator light: power ON Yellow flashing LED: accuracy checking alarm: overload
number of inputs	1 digital 0...5 V/11...40 V 24 V DC
number of outputs	1 digital (static)
output voltage	5...40 V DC@50 mA
mounting mode	Clip-on
mounting support	DIN rail
connections - terminals	Current circuit: screw terminals 6 mm² cable(s) Voltage circuit: screw terminals 2.5 mm² cable(s)
overvoltage category	III
standards	IEC 61010 IEC 61557-12 UL 61010-1 IEC 62053-22 IEC 62053-23 IEC 61036
product certifications	CE conforming to IEC 61010 (safety) CE conforming to EN 61557-12 (power monitor) CE conforming to IEC 61326-1 (EMC) CULus conforming to UL 61010 (safety) CULus conforming to ANSI C12.20 (sub-meter) EAC (sub-meter) RCM conforming to NMI M 6-1 (sub-meter) UL MID conforming to EN 50470-3 (sub-meter) MID conforming to EN 62052 (sub-meter)

Environment
IP degree of protection	IP40 front panel: conforming to IEC 60529 IP20 body: conforming to IEC 60529
pollution degree	2
relative humidity	5…95 % at 50 °C
ambient air temperature for operation	-25…55 °C - IEC
ambient air temperature for storage	-40…85 °C
operating altitude	< 2000 m
colour	White
9 mm pitches	10
width	90 mm
height	95 mm
depth	69 mm
