Schneider Electric IATL - 24V DC kontrolni i pomoćni kontakt 1 NO sa Ti24 konektorom; A9C15424

Acti9 iATL24 control and remote indication with Ti24 connector...

Brand: Schneider Electric
Product Code: A9C15424
Availability: Check availability

VAT-exclusive price: 3.976,00

VAT-inclusive price: 4.771,20

Qnt:

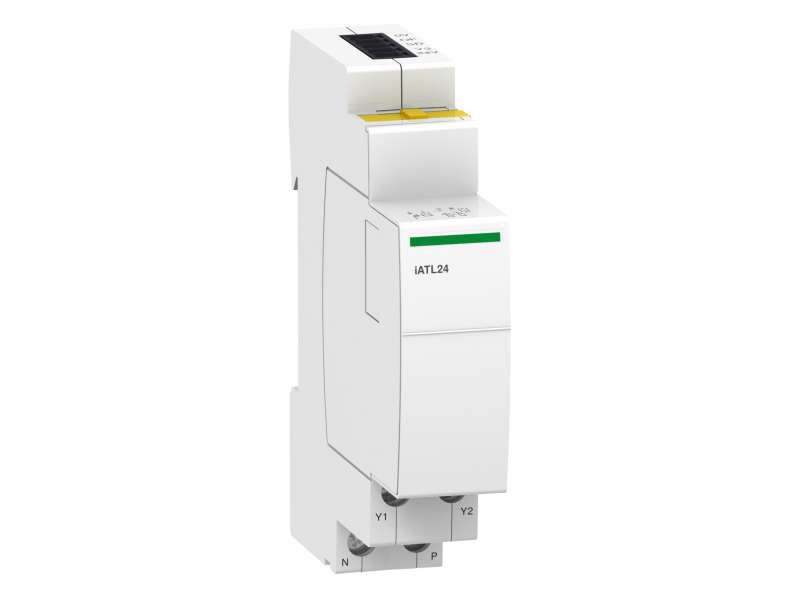

Acti9 iATL24 control and remote indication with Ti24 connector

Main
range of product	Acti9
Device short name	IATL24
Product or component type	Control and indication auxiliary
Signal contacts composition	1 NO
Signalling circuit voltage	24 V DC: +/- 20 % 0.002...0.1 A
[Uc] control circuit voltage	230 V AC 50/60 Hz impulse >= 200 ms 24 V DC falling edge 24 V DC rising edge
[Us] rated supply voltage	230 V AC at 50/60 Hz

Complementary
Control type	Remote control
[Ui] rated insulation voltage	250 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage	8 kV
Power consumption in W	1 W
Mounting mode	Fixed, on the left of CT
Mounting support	DIN rail
Comb busbar and distribution block compatibility	Bottom: YES Top: NO
Electrical durability	250000 cycles conforming to IEC 60947-5-1
immunity to microbreaks	10 ms
undervoltage behaviour	No opening if loss of 24 V DC
9 mm pitches	2
Height	81 mm
Width	18 mm
Depth	68 mm
Colour	White
Connections - terminals	Power supply: tunnel type terminals 1 cable(s) 0.5…10 mm² - rigid Power supply: tunnel type terminals 1 cable(s) 0.5…6 mm² - flexible Power supply: tunnel type terminals 1 cable(s) 0.5…4 mm² - flexible with ferrule Input: tunnel type terminals 2 cable(s) 0.5…2.5 mm² - rigid Input: tunnel type terminals 2 cable(s) 0.5…2.5 mm² - flexible Input: tunnel type terminals 2 cable(s) 0.5…2.5 mm² - flexible with ferrule Ti24 interface: spring-loaded terminal Ti24 2 cable(s) 0.5…1.5 mm² - rigid Ti24 interface: spring-loaded terminal Ti24 1 cable(s) 0.5…1.5 mm² - flexible
Wire stripping length	Power supply: 9 mm for bottom connection Input: 9 mm for bottom connection Ti24 interface: 10 mm for top connection
Tightening torque	Power supply: 1 N.m bottom Input: 1 N.m bottom
Range compatibility	Acti 9 (Acti9 iTL) iTL Acti 9 (Acti9 iTL) iTLi Acti 9 (Acti9 iTL) iTLs Acti 9 (Acti9 iTL) iTLc
Product compatibility	Acti 9 Smartlink ITL (32 A) - 230/240 V 50 Hz ITL (16 A) - 230/240 V 50 Hz

Environment
Overvoltage category	IV
IP degree of protection	IP20 conforming to IEC 60529 IP40 (modular enclosure) conforming to IEC 60529
Pollution degree	3 conforming to IEC 60439-1
Tropicalisation	2 conforming to IEC 60947-5-1
Relative humidity	93 % at 40 °C conforming to IEC 60068-2
Ambient air temperature for operation	-25…60 °C
Ambient air temperature for storage	-40…80 °C
Quality labels	CE
Standards	IEC 60947-1 appendix S

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	2.7 cm
Package 1 Width	7.6 cm
Package 1 Length	8.6 cm
Package 1 Weight	79.0 g
Unit Type of Package 2	S03
Number of Units in Package 2	108
Package 2 Height	30.0 cm
Package 2 Width	30.0 cm
Package 2 Length	40.0 cm
Package 2 Weight	9.166 kg
