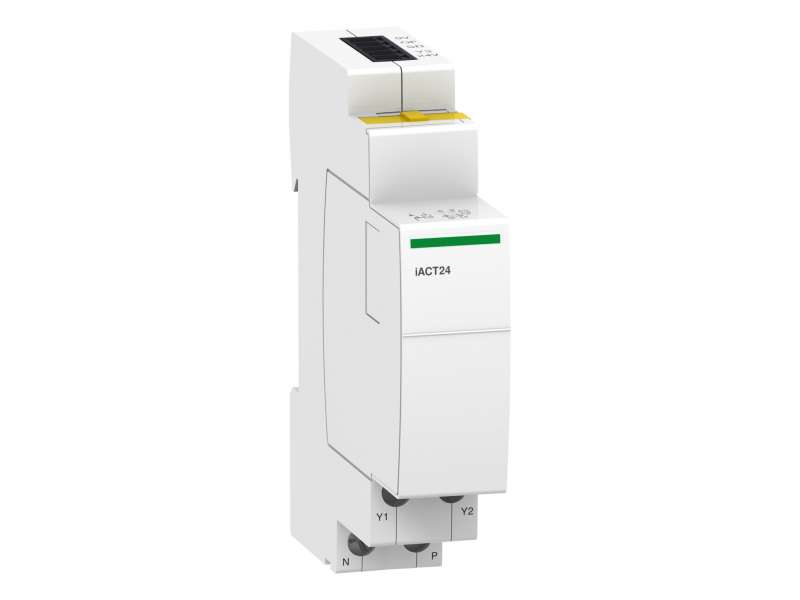

Schneider Electric IACT - 24V DC kontrolni i pomoćni kontakt 1 NO sa Ti24 PLC interfejsom; A9C15924
Acti9 iACT - 24V DC control and auxiliary contact 1 NO with Ti24 PLC interface...
VAT-exclusive price: 7.578,00 |
VAT-inclusive price: 9.093,60 |
Acti9 iACT - 24V DC control and auxiliary contact 1 NO with Ti24 PLC interface
| range |
Acti 9
|
|
|---|---|---|
| product or component type |
Control and indication auxiliary
|
|
| device short name |
IACT24
|
|
| signal contacts composition |
1 NO
|
|
| signalling circuit voltage |
24 V DC: - 20...20 % 0.002...0.1 A
|
|
| [Uc] control circuit voltage |
230 V AC 50/60 Hz maintained >= 200 ms
24 V DC falling edge 24 V DC rising edge |
|
| control type |
Remote control
|
|
| [Us] rated supply voltage |
230 V AC at 50/60 Hz
|
| mounting mode |
Fixed, on the left of CT
|
|
|---|---|---|
| mounting support |
DIN rail
|
|
| comb busbar and distribution block compatibility |
Bottom: YES
Top: NO |
|
| 9 mm pitches |
2
|
|
| height |
81 mm
|
|
| width |
18 mm
|
|
| depth |
68 mm
|
|
| colour |
White
|
|
| overvoltage category |
III
|
|
| [Uimp] rated impulse withstand voltage |
4 kV
|
|
| [Ui] rated insulation voltage |
440 V
|
|
| immunity to microbreaks |
10 ms
|
|
| undervoltage behaviour |
No opening if loss of 24 V DC
|
|
| standards |
IEC 60947-1 annex S
|
|
| quality labels |
CE
|
|
| electrical durability |
250000 cycles conforming to IEC 60947-5-1
|
|
| connections - terminals |
Control circuit: tunnel type terminals 2 cable(s) 2.5 mm² flexible
Control circuit: tunnel type terminals 2 cable(s) 1.5 mm² rigid Auxiliary supply: tunnel type terminals 2 cable(s) 2.5 mm² flexible Auxiliary supply: tunnel type terminals 2 cable(s) 1.5 mm² rigid Control circuit: spring-loaded terminal Ti24 2 cable(s) 0.25…0.75 mm² flexible Control circuit: spring-loaded terminal Ti24 1 cable(s) 0.5…1.5 mm² flexible |
|
| wire stripping length |
Control circuit: 10 mm for bottom connection
Auxiliary supply: 10 mm for bottom connection Control circuit: 10 mm for top connection |
|
| tightening torque |
Control circuit: 1 N.m bottom
Auxiliary supply: 1 N.m bottom |
|
| product compatibility |
ICT 230/240 V 50 Hz
With PLC ICT 220 V 50 Hz Acti 9 Smartlink ICT 220/240 V 50 Hz |
|
| market segment |
Residential
Small commercial |
|
| compatibility code |
IACT24
|
| IP degree of protection |
IP20 conforming to IEC 60529
IP40 (modular enclosure) conforming to IEC 60529 |
|
|---|---|---|
| pollution degree |
3 conforming to IEC 60439-1
|
|
| tropicalisation |
2 conforming to IEC 60947-5-1
|
|
| relative humidity |
93 % at 40 °C conforming to IEC 60068-2
|
|
| ambient air temperature for operation |
-25…60 °C
|
|
| ambient air temperature for storage |
-40…80 °C
|
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
80 g
|
|
| Package 1 Height |
2.7 cm
|
|
| Package 1 width |
7.6 cm
|
|
| Package 1 Length |
8.6 cm
|
|
| Unit Type of Package 2 |
S03
|
-
Acti 9 Smartlink Modbus A9C15924
