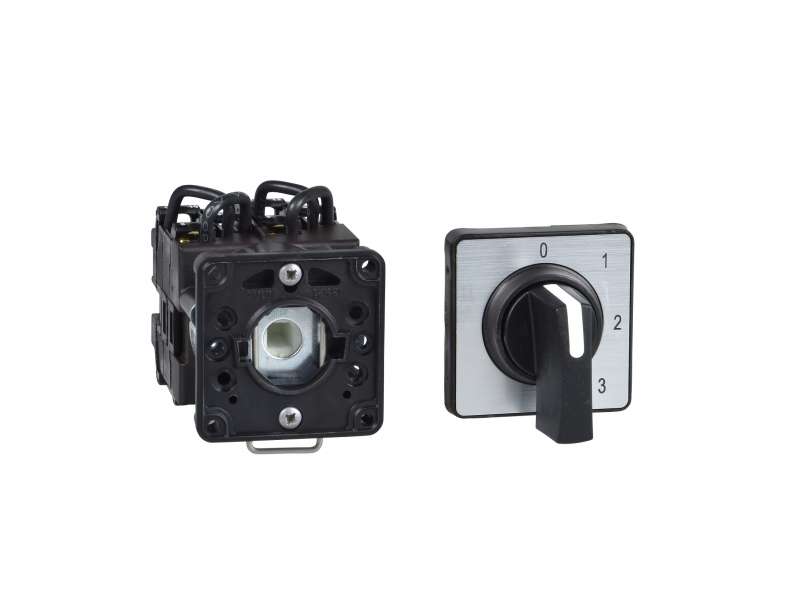

Schneider Electric Grebenasti prekidač - 3P - 45° - 20 A - za Ø 22 mm;K2C003ACH
Cam switch - 3-pole - 45° - 20 A - for Ø 22 mm...
VAT-exclusive price: 3.221,00 |
VAT-inclusive price: 3.865,20 |
Cam switch - 3-pole - 45° - 20 A - for Ø 22 mm
| range of product |
Harmony K
|
|
|---|---|---|
| product or component type |
Complete cam switch
|
|
| component name |
K2
|
|
| [Ith] conventional free air thermal current |
20 A
|
|
| mounting location |
Front
|
|
| fixing mode |
Ø 22 mm hole
|
|
| cam switch head type |
With front plate 45 x 45 mm
|
|
| type of operator |
Black handle, length = 35 mm
|
|
| rotary handle padlocking |
Without
|
|
| presentation of legend |
With metallic legend, 0 - 1 black marking
|
|
| cam switch function |
Switch
|
|
| return |
Without
|
|
| off position |
With Off position
|
|
| poles description |
3P
|
|
| switching positions |
Right: 0° - 45°
|
|
| IP degree of protection |
IP65 conforming to IEC 529
IP65 conforming to NF C 20-010 |
| switching angle |
45 °
|
|
|---|---|---|
| [Ui] rated insulation voltage |
690 V (pollution degree 3) conforming to IEC 60947-1
|
|
| [Ithe] conventional enclosed thermal current |
16 A
|
|
| electrical durability |
200000 cycles AC-23
200000 cycles AC-3 600000 cycles AC-15 600000 cycles AC-21 |
|
| maximum operating rate |
2.5 cyc/mn AC-21
2.5 cyc/mn AC-23 2.5 cyc/mn AC-3 8.333 cyc/mn AC-15 |
|
| short-circuit current |
10000 A
|
|
| short-circuit protection |
20 A cartridge fuse, type gG
|
|
| [Uimp] rated impulse withstand voltage |
4 kV in isolating function
6 kV conforming to IEC 947-1 |
|
| contact operation |
Slow-break
|
|
| positive opening |
With
|
|
| electrical connection |
Captive screw clamp terminals flexible, clamping capacity: 2 x 1.5 mm²
Captive screw clamp terminals solid, clamping capacity: 1 x 2.5 mm² |
|
| mechanical durability |
1000000 cycles
|
|
| CAD overall width |
45 mm
|
|
| CAD overall height |
50 mm
|
|
| CAD overall depth |
59 mm
|
|
| net weight |
0.153 kg
|
| standards |
EN/IEC 60947-3 for power circuit
EN/IEC 60947-5-1 for control circuit CENELEC EN 50013 |
|
|---|---|---|
| product certifications |
CSA 240 V 3 hp 3 phases 2 -pole(s)
UL 240 V 0.33 hp 1 phase 2 -pole(s) CSA 240 V 1 hp 1 phase UL 240 V 1 hp 3 phases |
|
| protective treatment |
TC
|
|
| ambient air temperature for operation |
-25…55 °C
|
|
| ambient air temperature for storage |
-40…70 °C
|
|
| shock resistance |
30 gn conforming to IEC 68-2-27
|
|
| vibration resistance |
5 gn conforming to IEC 68-2-6 (f = 10…150 Hz)
|
|
| overvoltage category |
Class II conforming to IEC 536
Class II conforming to NF C 20-030 |
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
153 g
|
-
Harmony K K2C003ACH
