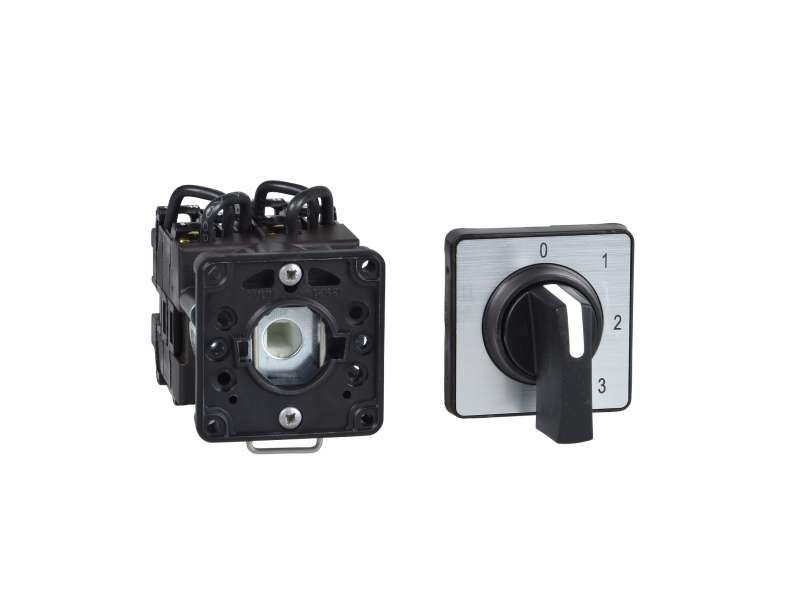

Name: Schneider Electric Grebenasti prekidač - 2P - 90° - 20 A - za Ø 22 mm;K2B1002HCH
Brand: Schneider Electric
SKU: K2B1002HCH
Price: 3034.80 RSD
Availability: OutOfStock

Schneider Electric Grebenasti prekidač - 2P - 90° - 20 A - za Ø 22 mm;K2B1002HCH

Cam switch - 2-pole - 90° - 20 A - for Ø 22 mm...

Brand: Schneider Electric
Product Code: K2B1002HCH
Availability: Check availability

VAT-exclusive price: 2.529,00

VAT-inclusive price: 3.034,80

Qnt:

Cam switch - 2-pole - 90° - 20 A - for Ø 22 mm

Main
range of product	Harmony K
product or component type	Complete cam switch
component name	K2
[Ith] conventional free air thermal current	20 A
mounting location	Front
fixing mode	Ø 22 mm hole
cam switch head type	With front plate 45 x 45 mm
type of operator	Black handle, length = 35 mm
rotary handle padlocking	Without
presentation of legend	With metallic legend, 0 - 1 black marking
cam switch function	Switch
return	Without
off position	With Off position
poles description	2P
switching positions	Right: 0° - 90°
IP degree of protection	IP65 conforming to IEC 529 IP65 conforming to NF C 20-010

Complementary
switching angle	90 °
[Ui] rated insulation voltage	690 V (pollution degree 3) conforming to IEC 60947-1
[Ithe] conventional enclosed thermal current	16 A
rated operational power in W	1300 W AC-3, 230 V 1 phase conforming to IEC 60947-3 14000 W AC-21, 400 V 3 phases conforming to IEC 60947-3 17000 W AC-21, 500...660 V 3 phases conforming to IEC 60947-3 2200 W AC-3, 230 V 3 phases conforming to IEC 60947-3 2200 W AC-3, 400 V 1 phase conforming to IEC 60947-3 4000 W AC-23A, 230 V 3 phases conforming to IEC 60947-3 4000 W AC-3, 400 V 3 phases conforming to IEC 60947-3 4000 W AC-3, 500 V 3 phases conforming to IEC 60947-3 4000 W AC-3, 690 V 3 phases conforming to IEC 60947-3 5500 W AC-23A, 400 V 3 phases conforming to IEC 60947-3 5500 W AC-23A, 500 V 3 phases conforming to IEC 60947-3 5500 W AC-23A, 690 V 3 phases conforming to IEC 60947-3 8000 W AC-21, 230 V 3 phases conforming to IEC 60947-3
[Ie] rated operational current AC	8 A at 400 V AC-3 3 phases conforming to IEC 60947-3 10.8 A at 400 V AC-23A 3 phases conforming to IEC 60947-3 14.6 A at 230 V AC-23A 3 phases conforming to IEC 60947-3 4.7 A at 690 V AC-3 3 phases conforming to IEC 60947-3 6.4 A at 690 V AC-23A 3 phases conforming to IEC 60947-3 6.5 A at 500 V AC-3 3 phases conforming to IEC 60947-3 8.3 A at 230 V AC-3 3 phases conforming to IEC 60947-3 8.9 A at 500 V AC-23A 3 phases conforming to IEC 60947-3 2 A at 500 V AC-15 conforming to IEC 60947-5-1 3 A at 400 V AC-15 conforming to IEC 60947-5-1 4 A at 230 V AC-15 conforming to IEC 60947-5-1
electrical durability	200000 cycles AC-23 200000 cycles AC-3 600000 cycles AC-15 600000 cycles AC-21
maximum operating rate	2.5 cyc/mn AC-21 2.5 cyc/mn AC-23 2.5 cyc/mn AC-3 8.333 cyc/mn AC-15
short-circuit current	10000 A
short-circuit protection	20 A cartridge fuse, type gG
[Uimp] rated impulse withstand voltage	4 kV in isolating function 6 kV conforming to IEC 60947-1
contact operation	Slow-break
positive opening	With
electrical connection	Captive screw clamp terminals flexible, clamping capacity: 2 x 1.5 mm² Captive screw clamp terminals solid, clamping capacity: 1 x 2.5 mm²
mechanical durability	1000000 cycles
CAD overall width	45 mm
CAD overall height	50 mm
CAD overall depth	49 mm
net weight	0.15 kg

Environment
standards	EN 60947-3 for power circuit EN 60947-5-1 for control circuit IEC 60947-3 for power circuit IEC 60947-5-1 for control circuit CENELEC EN 50013
product certifications	CSA 240 V 3 hp 3 phases 2 -pole(s) UL 240 V 0.33 hp 1 phase 2 -pole(s) CSA 240 V 1 hp 1 phase UL 240 V 1 hp 3 phases
protective treatment	TC
ambient air temperature for operation	-25…55 °C
ambient air temperature for storage	-40…70 °C
shock resistance	30 gn conforming to IEC 68-2-27
vibration resistance	5 gn conforming to IEC 68-2-6 (f = 10…150 Hz)
overvoltage category	Class II conforming to IEC 536 Class II conforming to NF C 20-030
