Harmony K

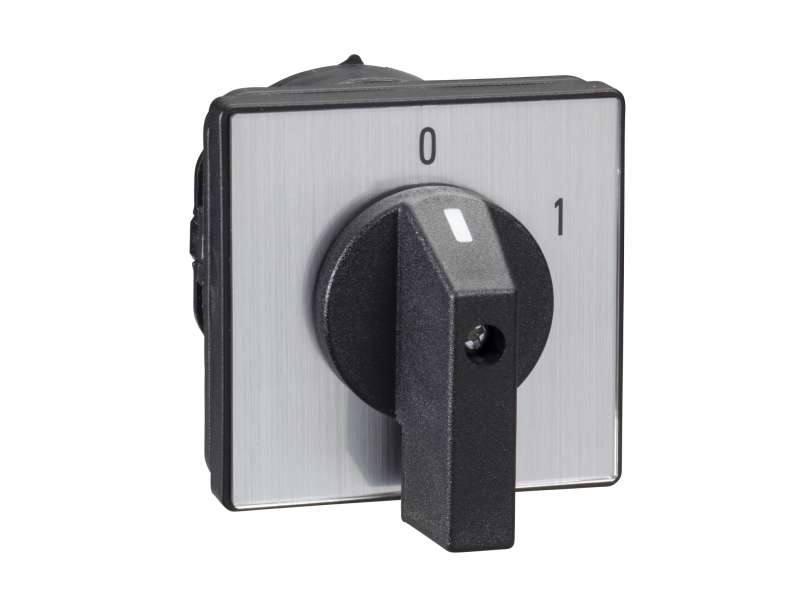

Complete cam switch

K30

32 A

Front mounting

4 holes

With front plate 64 x 64 mm

Black handle

Without

With metallic legend, 0 - 1 black marking

Switch

Without

With Off position

1P

Right: 0° - 60°

IP40 conforming to IEC 529
IP40 conforming to NF C 20-010

60 °

690 V (pollution degree 3) conforming to EN 60947-1
690 V (pollution degree 3) conforming to IEC 60947-1

11000 W AC-3, 380/440 V 3 phases conforming to EN/IEC 60947-3
11000 W AC-3, 660/690 V 3 phases conforming to EN/IEC 60947-3
15000 W AC-23A, 380/440 V 3 phases conforming to EN/IEC 60947-3
15000 W AC-23A, 660/690 V 3 phases conforming to EN/IEC 60947-3
2200 W AC-23A, 110 V 1 phase conforming to EN/IEC 60947-3
2200 W AC-3, 110 V 1 phase conforming to EN/IEC 60947-3
4000 W AC-23A, 220/240 V 1 phase conforming to EN/IEC 60947-3
4000 W AC-3, 220/240 V 1 phase conforming to EN/IEC 60947-3
5500 W AC-3, 220/240 V 3 phases conforming to EN/IEC 60947-3
5500 W AC-3, 380/440 V 1 phase conforming to EN/IEC 60947-3
7500 W AC-23A, 220/240 V 3 phases conforming to EN/IEC 60947-3
7500 W AC-23A, 380/440 V 1 phase conforming to EN/IEC 60947-3

14 A at 220/240 V AC-15 conforming to EN 60947-5-1
14 A at 220/240 V AC-15 conforming to IEC 60947-5-1
32 A AC-21A conforming to EN/IEC 60947-3
6 A at 380/440 V AC-15 conforming to EN 60947-5-1
6 A at 380/440 V AC-15 conforming to IEC 60947-5-1

5000 A

50 A cartridge fuse, type gG

6 kV conforming to EN 947-1
6 kV conforming to IEC 947-1

Slow-break

With

Captive screw clamp terminals flexible, clamping capacity: 2 x 4 mm²
Captive screw clamp terminals solid, clamping capacity: 2 x 6 mm²

1.2 N.m

11000 mA DC at 120 V 2 contact(s) for inductive load (T = 50 ms)
11000 mA DC at 180 V 3 contact(s) for inductive load (T = 50 ms)
11000 mA DC at 60 V 1 contact(s) for inductive load (T = 50 ms)
1200 mA DC at 220 V 1 contact(s) for resistive load (T = 1 ms)
1200 mA DC at 440 V 2 contact(s) for resistive load (T = 1 ms)
1200 mA DC at 660 V 3 contact(s) for resistive load (T = 1 ms)
16000 mA DC at 140 V 3 contact(s) for inductive load (T = 50 ms)
16000 mA DC at 48 V 1 contact(s) for inductive load (T = 50 ms)
16000 mA DC at 95 V 2 contact(s) for inductive load (T = 50 ms)
23000 mA DC at 120 V 2 contact(s) for resistive load (T = 1 ms)
23000 mA DC at 180 V 3 contact(s) for resistive load (T = 1 ms)
23000 mA DC at 60 V 1 contact(s) for resistive load (T = 1 ms)
25000 mA DC at 30 V 1 contact(s) for inductive load (T = 50 ms)
25000 mA DC at 60 V 2 contact(s) for inductive load (T = 50 ms)
25000 mA DC at 90 V 3 contact(s) for inductive load (T = 50 ms)
3200 mA DC at 110 V 1 contact(s) for inductive load (T = 50 ms)
3200 mA DC at 220 V 2 contact(s) for inductive load (T = 50 ms)
3200 mA DC at 330 V 3 contact(s) for inductive load (T = 50 ms)
32000 mA DC at 140 V 3 contact(s) for resistive load (T = 1 ms)
32000 mA DC at 24 V 1 contact(s) for inductive load (T = 50 ms)
32000 mA DC at 24 V 1 contact(s) for resistive load (T = 1 ms)
32000 mA DC at 48 V 1 contact(s) for resistive load (T = 1 ms)
32000 mA DC at 48 V 2 contact(s) for inductive load (T = 50 ms)
32000 mA DC at 48 V 2 contact(s) for resistive load (T = 1 ms)
32000 mA DC at 70 V 3 contact(s) for inductive load (T = 50 ms)
32000 mA DC at 70 V 3 contact(s) for resistive load (T = 1 ms)
32000 mA DC at 95 V 2 contact(s) for resistive load (T = 1 ms)
400 mA DC at 440 V 1 contact(s) for resistive load (T = 1 ms)
400 mA DC at 660 V 2 contact(s) for resistive load (T = 1 ms)
6500 mA DC at 110 V 1 contact(s) for resistive load (T = 1 ms)
6500 mA DC at 220 V 2 contact(s) for resistive load (T = 1 ms)
6500 mA DC at 330 V 3 contact(s) for resistive load (T = 1 ms)

300000 cycles

64 mm

64 mm

81 mm

0.13 kg

EN/IEC 60947-3

CULus 120 V 2 hp 1 phase
CULus 240 V 5 hp 1 phase
CULus 240 V 5 hp 3 phases
CULus 480 V 20 hp 3 phases

TC

-25…55 °C

-40…70 °C

Class II conforming to IEC 60536
Class II conforming to NF C 20-030

0.172 kg

1.150 dm

0.720 dm

0.720 dm

Yes

Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration

Yes

Yes

Yes

China RoHS declaration

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

18 months
