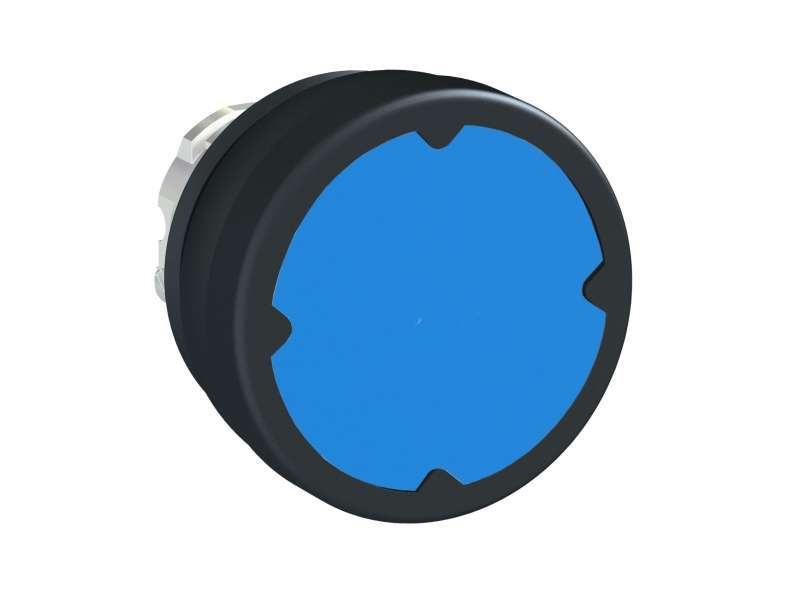

Schneider Electric Glava tastera za otežane uslove rada - tamnoplava - bez oznake;ZB4BC680
Pushbutton head for harsh environment - dark blue - without marking...
VAT-exclusive price: 2.033,00 |
VAT-inclusive price: 2.439,60 |
Pushbutton head for harsh environment - dark blue - without marking
| range of product |
Harmony XB4
|
|
|---|---|---|
| product or component type |
Head for push-button
|
|
| device short name |
ZB4
|
|
| bezel material |
Chromium plated metal
|
|
| head type |
Standard
|
|
| mounting diameter |
22 mm
|
|
| sale per indivisible quantity |
1
|
| CAD overall width |
37 mm
|
|
|---|---|---|
| CAD overall height |
18.5 mm
|
|
| CAD overall depth |
37 mm
|
|
| net weight |
0.036 kg
|
|
| electrical shock protection class |
Class I conforming to IEC 61140
|
|
| shape of signaling unit head |
Round
|
|
| type of operator |
spring return
|
|
| operator profile |
Blue flush, unmarked
|
|
| operator additional information |
Horizontal mounting
Vertical mounting |
|
| mechanical durability |
10000000 cycles
|
|
| vibration resistance |
5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
|
|
| shock resistance |
30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
|
|
| main group |
Harsh environment
|
|
| group of product |
Flush unmarked
|
|
| cap/operator or lens colour |
Blue
|
|
| marking |
Unmarked
|
|
| electrical composition code |
C1 for <9 contacts using single blocks in front mounting
C2 for <9 contacts using single and double blocks in front mounting C11 for <3 contacts using single blocks in front mounting C15 for <1 contacts using single blocks in front mounting |
|
| device presentation |
Basic element
|
| ambient air temperature for storage |
-40…85 °C
|
|
|---|---|---|
| ambient air temperature for operation |
-40…70 °C
|
|
| IP degree of protection |
IP66 conforming to IEC 60529
IP69K IP67 IP69 |
|
| NEMA degree of protection |
NEMA 4 conforming to UL 508
NEMA 13 NEMA 12 |
|
| resistance to high pressure washer |
90 Pa at 82.5 °C
|
|
| IK degree of protection |
IK06 conforming to IEC 62262
|
|
| standards |
UL 508
IEC 60947-5-1 CSA C22.2 IEC 60947-1 |
|
| product certifications |
CSA
UL CE |
| Package 1 Weight |
0.032 kg
|
|
|---|---|---|
| Package 1 Height |
0.380 dm
|
|
| Package 1 width |
0.370 dm
|
|
| Package 1 Length |
0.370 dm
|
Green Premium product
REACh Regulation
REACh free of SVHC
Yes
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration
Toxic heavy metal free
EU RoHS Declaration
Yes
-
Harmony XB4 ZB4BC680
