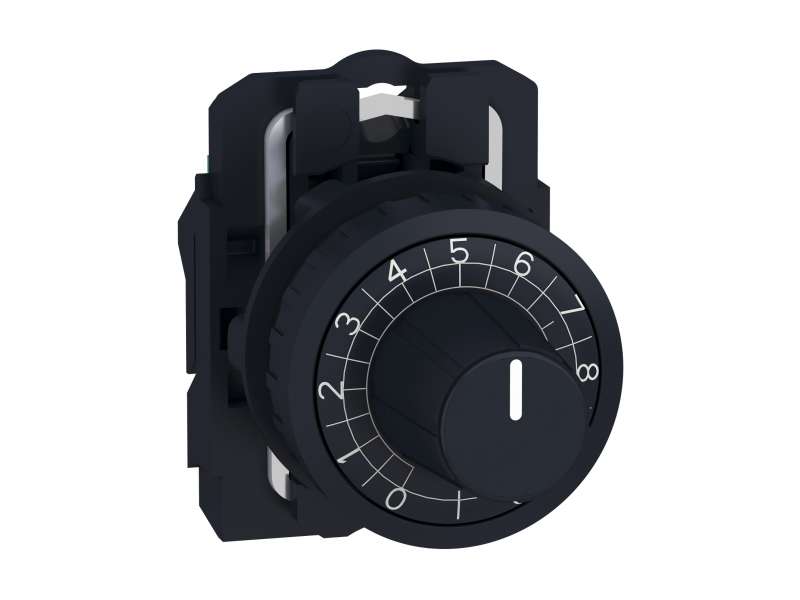

Schneider Electric Glava Ø22 + osnova za montažu za potenciometar;ZB5AD922
Potentiometer head, plastic,black, Ø22, for use with Ø 6.35 mm shaft...
VAT-exclusive price: 6.262,00 |
VAT-inclusive price: 7.514,40 |
Potentiometer head, plastic,black, Ø22, for use with Ø 6.35 mm shaft
| range of product |
Harmony XB5
|
|
|---|---|---|
| product or component type |
Head + mounting base for potentiometer
|
|
| device short name |
ZB5
|
|
| bezel material |
Dark grey plastic
|
|
| mounting diameter |
22 mm
|
|
| head type |
Standard
|
|
| product compatibility |
For use with Ø 6.35 mm shaft
|
|
| sale per indivisible quantity |
1
|
|
| shape of signaling unit head |
Round
|
|
| operator profile |
knurled knob, with (white)
|
| net weight |
0.032 kg
|
|
|---|---|---|
| resistance to high pressure washer |
7000000 Pa at 55 °C, distance : 0.1 m
|
|
| device presentation |
Basic element
|
| protective treatment |
TH
|
|
|---|---|---|
| ambient air temperature for storage |
-40…70 °C
|
|
| ambient air temperature for operation |
-40…70 °C
|
|
| electrical shock protection class |
Class II conforming to IEC 60536
|
|
| IP degree of protection |
IP66 conforming to IEC 60529
|
|
| NEMA degree of protection |
NEMA 13
NEMA 4X |
|
| IK degree of protection |
IK03 conforming to IEC 50102
|
|
| standards |
EN/IEC 60947-5-4
EN/IEC 60947-5-5 UL 508 JIS C8201-5-1 EN/IEC 60947-5-1 EN/IEC 60947-1 CSA C22.2 No 14 JIS C8201-1 |
|
| product certifications |
CSA
UL listed BV RINA DNV LROS (Lloyds register of shipping) GL |
|
| vibration resistance |
5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
|
|
| shock resistance |
30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
34 g
|
|
| Package 1 Height |
6.3 cm
|
|
| Package 1 width |
4.7 cm
|
|
| Package 1 Length |
5.4 cm
|
|
| Unit Type of Package 2 |
S02
|
|
| Number of Units in Package 2 |
80
|
|
| Package 2 Weight |
2.946 kg
|
|
| Package 2 Height |
15 cm
|
|
| Package 2 width |
30 cm
|
|
| Package 2 Length |
40 cm
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| REACh Regulation | ||
| REACh free of SVHC |
Yes
|
|
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
|
| Toxic heavy metal free |
Yes
|
|
| Mercury free |
Yes
|
-
Harmony XB5 ZB5AD922
