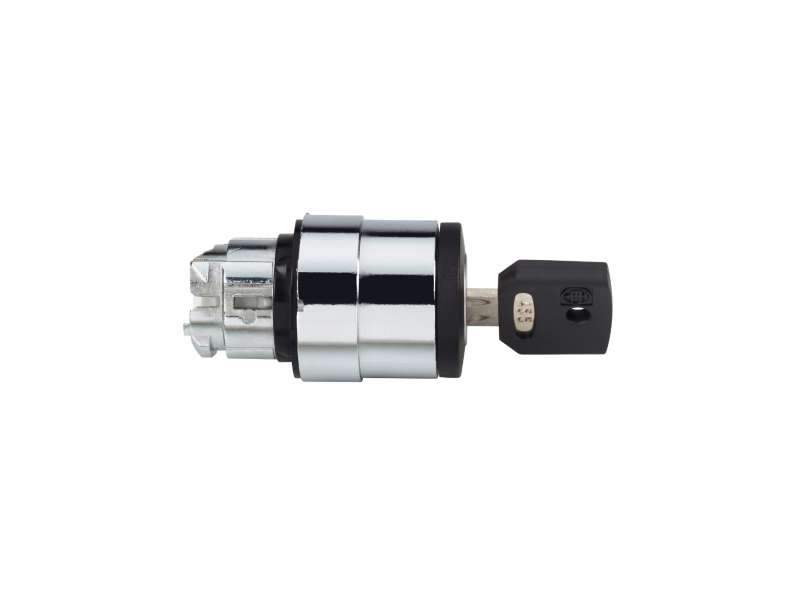

Schneider Electric Glava izbornog prekidača sa ključem;ZB4BG9
Key switch selector head, metal, black, Ø22, key n°455, 3 positions, stay put...
VAT-exclusive price: 3.699,00 |
VAT-inclusive price: 4.438,80 |
Key switch selector head, metal, black, Ø22, key n°455, 3 positions, stay put
| range of product |
Harmony XB4
|
|
|---|---|---|
| product or component type |
Head for key selector switch
|
|
| device short name |
ZB4
|
|
| bezel material |
Chromium plated metal
|
|
| mounting diameter |
22 mm
|
|
| head type |
Standard
|
|
| sale per indivisible quantity |
1
|
|
| shape of signaling unit head |
Round
|
|
| operator profile |
Black key switch
|
|
| type of operator |
Stay put
|
|
| operator position information |
3 positions +/- 45°
|
|
| type of keylock |
Ronis 455
|
|
| key withdrawal position |
Left
|
| CAD overall width |
29 mm
|
|
|---|---|---|
| CAD overall height |
29 mm
|
|
| CAD overall depth |
72 mm
|
|
| net weight |
0.098 kg
|
|
| resistance to high pressure washer |
7000000 Pa at 55 °C, distance : 0.1 m
|
|
| mechanical durability |
1000000 cycles
|
|
| electrical composition code |
C3 for <6 contacts using single blocks in front mounting
C4 for <6 contacts using single and double blocks in front mounting C5 for <5 contacts using single blocks in front mounting C6 for <5 contacts using single and double blocks in front mounting C7 for <4 contacts using single blocks in front mounting C8 for <4 contacts using single and double blocks in front mounting C11 for <3 contacts using single blocks in front mounting |
|
| device presentation |
Basic element
|
| protective treatment |
TH
|
|
|---|---|---|
| ambient air temperature for storage |
-40…70 °C
|
|
| ambient air temperature for operation |
-40…70 °C
|
|
| overvoltage category |
Class I conforming to IEC 60536
|
|
| IP degree of protection |
IP66 conforming to IEC 60529
IP67 IP69 IP69K |
|
| NEMA degree of protection |
NEMA 13
NEMA 4X |
|
| IK degree of protection |
IK06 with keyhole cover ZBGP conforming to IEC 50102
|
|
| standards |
CSA C22.2 No 14
EN/IEC 60947-5-1 GB 14048.5 EN/IEC 60947-1 UL 508 EN/IEC 60947-5-5 EN/IEC 60947-5-4 |
|
| product certifications |
CSA
UL listed DNV RINA GL LROS (Lloyds register of shipping) BV |
|
| vibration resistance |
5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
|
|
| shock resistance |
30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
104 g
|
|
| Package 1 Height |
8.6 cm
|
|
| Package 1 width |
5.2 cm
|
|
| Package 1 Length |
3.3 cm
|
|
| Unit Type of Package 2 |
BB1
|
|
| Number of Units in Package 2 |
5
|
|
| Package 2 Weight |
519 g
|
|
| Package 2 Height |
8.6 cm
|
|
| Package 2 width |
3.3 cm
|
-
Harmony XB4 ZB4BG9
