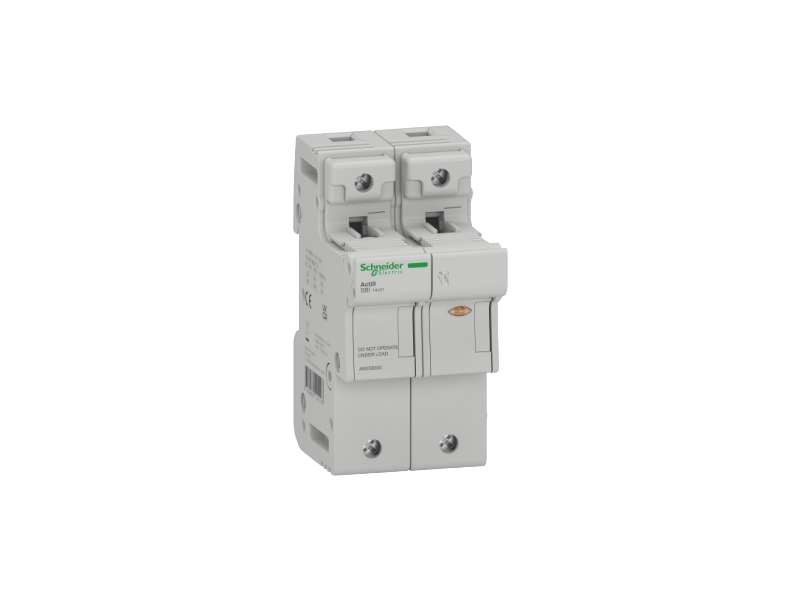

Schneider Electric Fuse Disconnector, Acti9 SBI, 1P+N, 50A, for fuse 14 x 51mm; A9GSB650
Fuse Disconnector, Acti9 SBI, 1P+N, 50A, for fuse 14 x 51mm...
VAT-exclusive price: 3.481,00 |
VAT-inclusive price: 4.177,20 |
Fuse Disconnector, Acti9 SBI, 1P+N, 50A, for fuse 14 x 51mm
| Range | Acti9 |
|---|---|
| Product name | Acti9 SBI |
| Product or component type | Fuse-disconnector |
| Device short name | SBI |
| Poles description | 1P + N |
| [In] rated current |
10 A 12 A 16 A 20 A 25 A 32 A 40 A 50 A |
|---|---|
| Fuse curve |
AM GG |
| Fuse size | 14 x 51 mm |
| [Ue] rated operational voltage | 690 V AC |
| Mounting support | 35 mm symmetrical DIN rail |
| Locking options description | Non padlockable |
| 9 mm pitches | 6 |
| Height | 107 mm |
| Width | 53 mm |
| Depth | 70 mm |
| Connections - terminals |
Screw clamp terminals1 cable(s) 2.5…25 mm² rigid Screw clamp terminals1 cable(s) 2.5…25 mm² flexible |
| Tightening torque | 3.5 N.m |
| Standards | IEC EN 60947-3 |
|---|---|
| Pollution degree | 3 |
| Ambient air temperature for operation | -20…60 °C |
| Ambient air temperature for storage | -40…80 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.500 cm |
| Package 1 Width | 7.800 cm |
| Package 1 Length | 11.200 cm |
| Package 1 Weight | 240.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 3 |
| Package 2 Height | 8.500 cm |
| Package 2 Width | 12.100 cm |
| Package 2 Length | 17.500 cm |
| Package 2 Weight | 820.000 g |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 36 |
| Package 3 Height | 30.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 10.280 kg |
| Warranty | 18 months |
|---|
