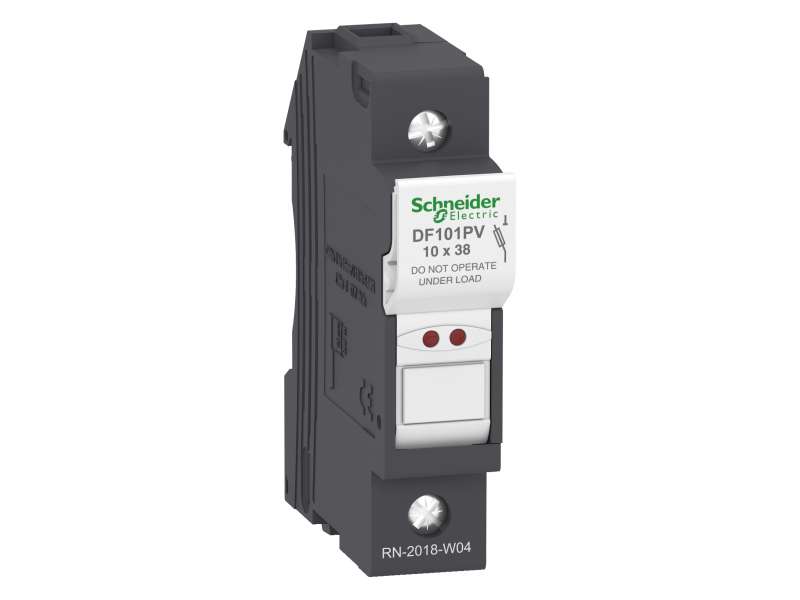

Schneider Electric Fuse carrier, TeSys DF, 1P, 32A, 1000VDC, fuse size 10x38mm; DF101PV
Fuse carrier, TeSys DF, 1P, 32A, 1000VDC, fuse size 10x38mm; DF101PV...
Price on request
Fuse carrier, TeSys DF, 1P, 32A, 1000VDC, fuse size 10x38mm; DF101PV
| Range | TeSys |
|---|---|
| Product name | TeSys DF |
| Product or component type | Fuse carrier |
| device short name | DF10 |
| Poles description | 1P |
| Fuse size | 10 x 38 mm |
| control type | Toggle padlockable |
| utilisation category | DC-20B conforming to IEC 60947-3 |
| [Ue] rated operational voltage | 1000 V DC |
| [Ie] rated operational current | 32 A |
| [Ith] conventional free air thermal current | 32 A 20 °C |
| [Ui] rated insulation voltage | 1000 V DC |
| [Uimp] rated impulse withstand voltage | 6 kV |
| overvoltage category | III |
| short-circuit withstand |
120 kA 400 V conforming to IEC 60947-3 120 kA 500 V conforming to IEC 60947-3 |
| power dissipation in W | 3 W maximum power dissipation by fuse |
