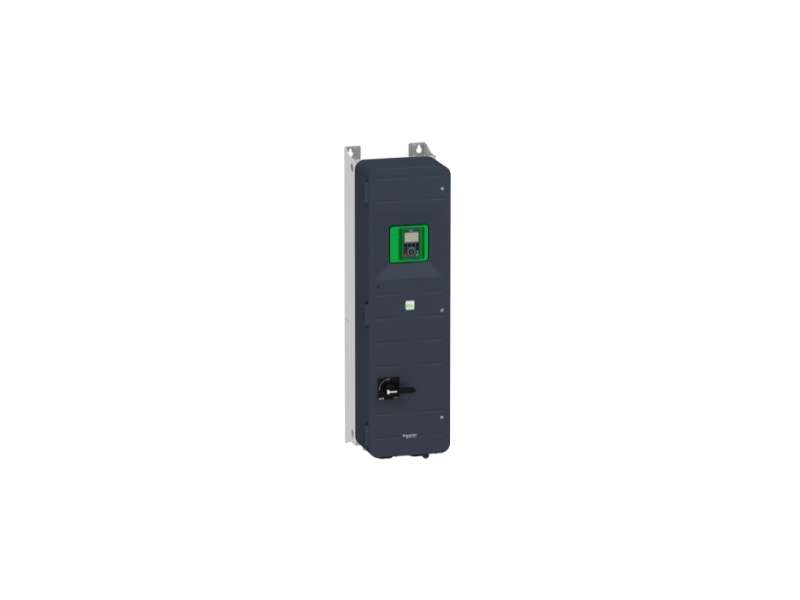

Schneider Electric Frekventni regulator ATV650 - 90kW/125HP - 380...480V - IP55;ATV650D90N4
Variable speed drive, Altivar Process ATV600, ATV650, 90 kW, 400...480 V, IP55...
VAT-exclusive price: 1.100.015,00 |
VAT-inclusive price: 1.320.018,00 |
Variable speed drive, Altivar Process ATV600, ATV650, 90 kW, 400...480 V, IP55
| range of product | Altivar Process ATV600 |
|---|---|
| product or component type | Variable speed drive |
| product specific application | Process and utilities |
| device short name | ATV650 |
| variant | Standard version |
| product destination |
Synchronous motors Asynchronous motors |
| EMC filter | Integrated with 150 m conforming to EN/IEC 61800-3 category C3 |
| IP degree of protection |
IP55 conforming to IEC 60529 IP55 conforming to IEC 61800-5-1 |
| [Us] rated supply voltage | 380...480 V |
| type of cooling | Forced convection |
| supply frequency | 50...60 Hz - 5...5 % |
| [Us] rated supply voltage | 380...480 V - 15...10 % |
| motor power kW |
55 kW (heavy duty) 90 kW (normal duty) |
| motor power hp |
75 hp heavy duty 125 hp normal duty |
| line current |
112.7 A at 480 V (normal duty) 98.9 A at 380 V (heavy duty) 86.9 A at 480 V (heavy duty) 156.2 A at 380 V (normal duty) |
| prospective line Isc | 50 kA |
| apparent power |
72.2 kVA at 480 V (heavy duty) 112.9 kVA at 480 V (normal duty) |
| continuous output current |
106 A at 2.5 kHz for heavy duty 173 A at 2.5 kHz for normal duty |
| maximum transient current |
159 A during 60 s (heavy duty) 190.3 A during 60 s (normal duty) |
| asynchronous motor control profile |
Constant torque standard Optimized torque mode Optimized torque mode |
| synchronous motor control profile |
Synchronous reluctance motor Permanent magnet motor |
| speed drive output frequency | 0.1…500 Hz |
| nominal switching frequency | 2.5 kHz |
| switching frequency |
2...8 kHz adjustable 2.5...8 kHz with derating factor |
| safety function | STO (safe torque off) SIL 3 |
| discrete input logic | 16 preset speeds |
| communication port protocol |
Modbus TCP Modbus serial Ethernet |
| option card |
Slot A: communication module, PROFINET Slot A: communication module, DeviceNet Slot A: communication module, Modbus TCP/EtherNet/IP Slot A: communication module, CANopen daisy chain RJ45 Slot A: communication module, CANopen SUB-D 9 Slot A: communication module, CANopen screw terminals Slot A/slot B: digital and analog I/O extension module Slot A/slot B: output relay extension module Slot A: communication module, Ethernet IP/Modbus TCP/MD-Link Communication module, BACnet MS/TP Communication module, Ethernet Powerlink Slot A: communication module, Profibus DP V1 |
| mounting mode | Wall mount |
|---|---|
| network number of phases | 3 phases |
| discrete output number | 0 |
| discrete output type |
Relay outputs R1A, R1B, R1C 250 V AC 3000 mA Relay outputs R1A, R1B, R1C 30 V DC 3000 mA Relay outputs R2A, R2C 250 V AC 5000 mA Relay outputs R2A, R2C 30 V DC 5000 mA Relay outputs R3A, R3C 250 V AC 5000 mA Relay outputs R3A, R3C 30 V DC 5000 mA |
| output voltage | <= power supply voltage |
| permissible temporary current boost |
1.5 x In during 60 s (heavy duty) 1.1 x In during 60 s (normal duty) |
| motor slip compensation |
Can be suppressed Not available in permanent magnet motor law Automatic whatever the load Adjustable |
| acceleration and deceleration ramps | Linear adjustable separately from 0.01...9999 s |
| physical interface |
Ethernet 2-wire RS 485 |
| braking to standstill | By DC injection |
| protection type |
Safe torque off: motor Motor phase break: motor Thermal protection: drive Safe torque off: drive Overheating: drive Overcurrent between output phases and earth: drive Overload of output voltage: drive Short-circuit protection: drive Motor phase break: drive Overvoltages on the DC bus: drive Line supply overvoltage: drive Line supply undervoltage: drive Line supply phase loss: drive Overspeed: drive Break on the control circuit: drive Thermal protection: motor |
| transmission rate |
10, 100 Mbits 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps |
| frequency resolution |
Analog input: 0.012/50 Hz Display unit: 0.1 Hz |
| transmission frame | RTU |
| electrical connection |
Motor: screw terminal 95...120 mm²/AWG 3...250 kcmil Line side: screw terminal 95 mm²/AWG 2/0...250 kcmil Control: removable screw terminals 0.5...1.5 mm²/AWG 20...AWG 16 |
| connector type |
RJ45 (on the remote graphic terminal) for Modbus serial RJ45 (on the remote graphic terminal) for Ethernet/Modbus TCP |
| data format | 8 bits, configurable odd, even or no parity |
| type of polarization | No impedance |
| exchange mode | Half duplex, full duplex, autonegotiation Ethernet/Modbus TCP |
| number of addresses | 1…247 for Modbus serial |
| method of access | Slave Modbus TCP |
| supply |
Internal supply for reference potentiometer (1 to 10 kOhm): 10.5 V DC +/- 5 %, <10 mA, protection type: overload and short-circuit protection Internal supply for digital inputs and STO: 24 V DC (21…27 V), <200 mA, protection type: overload and short-circuit protection External supply for digital inputs: 24 V DC (19…30 V), <1.25 mA, protection type: overload and short-circuit protection |
| local signalling |
3 LEDs (dual colour) for embedded communication status 4 LEDs (dual colour) for communication module status 1 LED (red) for presence of voltage 3 LEDs for local diagnostic |
| width | 345 mm |
| height | 1250 mm |
| depth | 375 mm |
| net weight | 87 kg |
| analogue input number | 3 |
| analogue input type |
AI1, AI2, AI3 software-configurable voltage: 0...10 V DC, impedance: 31.5 kOhm, resolution 12 bits AI1, AI2, AI3 software-configurable current: 0...20 mA, impedance: 250 Ohm, resolution 12 bits AI2 voltage analog input: - 10...10 V DC, impedance: 31.5 kOhm, resolution 12 bits |
| discrete input number | 8 |
| discrete input type | DI7, DI8 programmable as pulse input: 0…30 kHz, 24 V DC (<= 30 V) |
| input compatibility |
DI5, DI6: discrete input level 1 PLC conforming to IEC 65A-68 STOA, STOB: discrete input level 1 PLC conforming to EN/IEC 61131-2 DI1...DI6: discrete input level 1 PLC conforming to EN/IEC 61131-2 |
| discrete input logic |
Positive logic (source) (DI1...DI8), < 5 V (state 0), > 11 V (state 1) Negative logic (sink) (DI1...DI8), > 16 V (state 0), < 10 V (state 1) |
| analogue output number | 2 |
| analogue output type |
Software-configurable voltage AQ1, AQ2: 0...10 V DC impedance 470 Ohm, resolution 10 bits Software-configurable current AQ1, AQ2: 0...20 mA, resolution 10 bits Software-configurable current DQ-, DQ+: 30 V DC Software-configurable current DQ-, DQ+: 100 mA |
| sampling duration |
5 ms +/- 1 ms (DI5, DI6) - discrete input 5 ms +/- 0.1 ms (AI1, AI2, AI3) - analog input 10 ms +/- 1 ms (AO1) - analog output 2 ms +/- 0.5 ms (DI1...DI4) - discrete input |
| accuracy |
+/- 1 % AO1, AO2 for a temperature variation 60 °C analog output +/- 0.6 % AI1, AI2, AI3 for a temperature variation 60 °C analog input |
| linearity error |
AO1, AO2: +/- 0.2 % for analog output AI1, AI2, AI3: +/- 0.15 % of maximum value for analog input |
| relay output number | 3 |
| relay output type |
Configurable relay logic R2: sequence relay NO electrical durability 100000 cycles Configurable relay logic R3: sequence relay NO electrical durability 100000 cycles Configurable relay logic R1: fault relay NO/NC electrical durability 100000 cycles |
| refresh time | Relay output (R1, R2, R3): 5 ms (+/- 0.5 ms) |
| minimum switching current | Relay output R1, R2, R3: 5 mA at 24 V DC |
| maximum switching current |
Relay output R1, R2, R3 on resistive load, cos phi = 1: 3 A at 30 V DC Relay output R1, R2, R3 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 250 V AC Relay output R1, R2, R3 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 30 V DC Relay output R1, R2, R3 on resistive load, cos phi = 1: 3 A at 250 V AC |
| isolation | Between power and control terminals |
| maximum output frequency | 500 kHz |
| maximum input current | 156.2 A |
| Variable speed drive application selection | Compressor centrifugal Building - HVAC |
| Motor power range AC-3 | 55…100 kW at 380…440 V 3 phases |
| quantity per set | 1 |
| enclosure mounting | Wall mounted |
| insulation resistance | > 1 MOhm 500 V DC for 1 minute to earth |
|---|---|
| noise level | 69.9 dB conforming to 86/188/EEC |
| operating position | Vertical +/- 10 degree |
| maximum THDI | <48 % from 80...100 % of load conforming to IEC 61000-3-12 |
| electromagnetic compatibility |
Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3 Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5 Conducted radio-frequency immunity test level 3 conforming to IEC 61000 |
