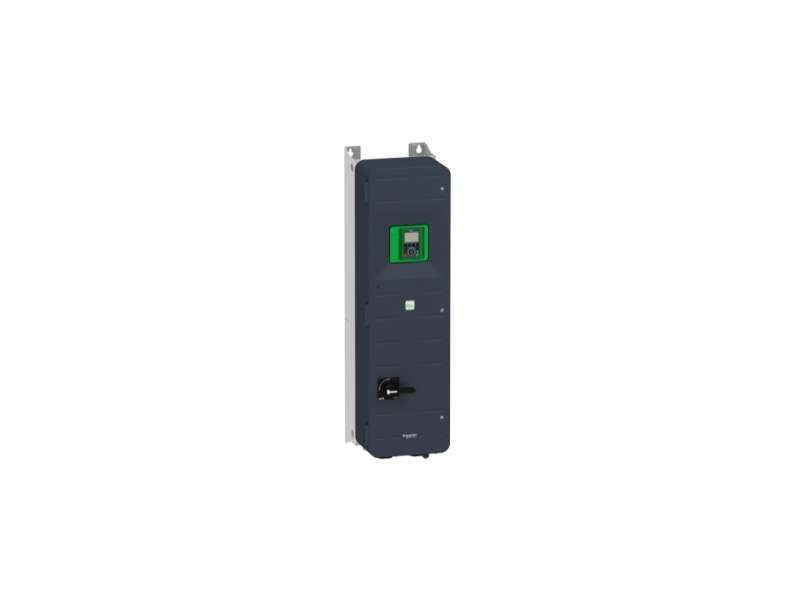

Schneider Electric Frekventni regulator ATV650 - 55kW/75HP - 380...480V - IP55 - sa rastavljačem;ATV650D55N4E
Variable speed drive, Altivar Process ATV600, ATV650, 55 kW, 400...480 V, IP55...
VAT-exclusive price: 853.133,00 |
VAT-inclusive price: 1.023.759,60 |
Variable speed drive, Altivar Process ATV600, ATV650, 55 kW, 400...480 V, IP55
| range of product | Altivar Process ATV600 |
|---|---|
| product or component type | Variable speed drive |
| product specific application | Process and utilities |
| device short name | ATV650 |
| variant | With disconnect switch |
| product destination |
Asynchronous motors Synchronous motors |
| EMC filter | Integrated with 150 m conforming to EN/IEC 61800-3 category C3 |
| IP degree of protection |
IP55 conforming to IEC 60529 IP55 conforming to IEC 61800-5-1 |
| [Us] rated supply voltage | 380...480 V |
| type of cooling | Forced convection |
| supply frequency | 50...60 Hz - 5...5 % |
| [Us] rated supply voltage | 380...480 V - 15...10 % |
| motor power kW |
45 kW (heavy duty) 55 kW (normal duty) |
| motor power hp |
60 hp heavy duty 75 hp normal duty |
| line current |
84.2 A at 480 V (normal duty) 81.4 A at 380 V (heavy duty) 71.8 A at 480 V (heavy duty) 97.2 A at 380 V (normal duty) |
| prospective line Isc | 50 kA |
| apparent power |
59.7 kVA at 480 V (heavy duty) 70 kVA at 480 V (normal duty) |
| continuous output current |
87 A for heavy duty 106 A at 2.5 kHz for normal duty |
| maximum transient current |
132 A during 60 s (heavy duty) 116.6 A during 60 s (normal duty) |
| asynchronous motor control profile |
Variable torque standard Constant torque standard Constant torque standard |
| synchronous motor control profile |
Synchronous reluctance motor Permanent magnet motor |
| speed drive output frequency | 0.1…500 Hz |
| nominal switching frequency | 2.5 kHz |
| switching frequency |
2...8 kHz adjustable 2.5...8 kHz with derating factor |
| safety function | STO (safe torque off) SIL 3 |
| discrete input logic | 16 preset speeds |
| communication port protocol |
Ethernet Modbus TCP Modbus TCP |
| option card |
Slot A: communication module, PROFINET Slot A: communication module, DeviceNet Slot A: communication module, Modbus TCP/EtherNet/IP Slot A: communication module, CANopen daisy chain RJ45 Slot A: communication module, CANopen SUB-D 9 Slot A: communication module, CANopen screw terminals Slot A/slot B: digital and analog I/O extension module Slot A/slot B: output relay extension module Slot A: communication module, Ethernet IP/Modbus TCP/MD-Link Communication module, BACnet MS/TP Communication module, Ethernet Powerlink Slot A: communication module, Profibus DP V1 |
| mounting mode | Wall mount |
|---|---|
| network number of phases | 3 phases |
| discrete output number | 0 |
| discrete output type |
Relay outputs R1A, R1B, R1C 250 V AC 3000 mA Relay outputs R1A, R1B, R1C 30 V DC 3000 mA Relay outputs R2A, R2C 250 V AC 5000 mA Relay outputs R2A, R2C 30 V DC 5000 mA Relay outputs R3A, R3C 250 V AC 5000 mA Relay outputs R3A, R3C 30 V DC 5000 mA |
| output voltage | <= power supply voltage |
| permissible temporary current boost |
1.5 x In during 60 s (heavy duty) 1.1 x In during 60 s (normal duty) |
| motor slip compensation |
Automatic whatever the load Not available in permanent magnet motor law Can be suppressed Adjustable |
| acceleration and deceleration ramps | Linear adjustable separately from 0.01...9999 s |
| physical interface |
Ethernet 2-wire RS 485 |
| braking to standstill | By DC injection |
| protection type |
Safe torque off: motor Motor phase break: motor Thermal protection: drive Safe torque off: drive Overheating: drive Overcurrent between output phases and earth: drive Overload of output voltage: drive Short-circuit protection: drive Motor phase break: drive Overvoltages on the DC bus: drive Line supply overvoltage: drive Line supply undervoltage: drive Line supply phase loss: drive Overspeed: drive Break on the control circuit: drive Thermal protection: motor |
| transmission rate |
10, 100 Mbits 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps |
| frequency resolution |
Analog input: 0.012/50 Hz Display unit: 0.1 Hz |
| transmission frame | RTU |
| electrical connection |
Motor: screw terminal 70...120 mm²/AWG 1/0...250 kcmil Line side: screw terminal 50...120 mm²/AWG 1...250 kcmil Control: removable screw terminals 0.5...1.5 mm² |
| connector type |
RJ45 (on the remote graphic terminal) for Modbus serial RJ45 (on the remote graphic terminal) for Ethernet/Modbus TCP |
| data format | 8 bits, configurable odd, even or no parity |
| type of polarization | No impedance |
| exchange mode | Half duplex, full duplex, autonegotiation Ethernet/Modbus TCP |
| number of addresses | 1…247 for Modbus serial |
| method of access | Slave Modbus TCP |
| supply |
Internal supply for reference potentiometer (1 to 10 kOhm): 10.5 V DC +/- 5 %, <10 mA, protection type: overload and short-circuit protection Internal supply for digital inputs and STO: 24 V DC (21…27 V), <200 mA, protection type: overload and short-circuit protection External supply for digital inputs: 24 V DC (19…30 V), <1.25 mA, protection type: overload and short-circuit protection |
| local signalling |
3 LEDs (dual colour) for embedded communication status 4 LEDs (dual colour) for communication module status 1 LED (red) for presence of voltage 3 LEDs for local diagnostic |
| width | 345 mm |
| height | 1250 mm |
| depth | 436 mm |
| net weight | 89.3 kg |
| analogue input number | 3 |
| analogue input type |
AI1, AI2, AI3 software-configurable voltage: 0...10 V DC, impedance: 31.5 kOhm, resolution 12 bits AI1, AI2, AI3 software-configurable current: 0...20 mA, impedance: 250 Ohm, resolution 12 bits AI2 voltage analog input: - 10...10 V DC, impedance: 31.5 kOhm, resolution 12 bits |
| discrete input number | 8 |
| discrete input type | DI7, DI8 programmable as pulse input: 0…30 kHz, 24 V DC (<= 30 V) |
| input compatibility |
DI5, DI6: discrete input level 1 PLC conforming to IEC 65A-68 STOA, STOB: discrete input level 1 PLC conforming to EN/IEC 61131-2 DI1...DI6: discrete input level 1 PLC conforming to EN/IEC 61131-2 |
| discrete input logic |
Positive logic (source) (DI1...DI8), < 5 V (state 0), > 11 V (state 1) Negative logic (sink) (DI1...DI8), > 16 V (state 0), < 10 V (state 1) |
| analogue output number | 2 |
| analogue output type |
Software-configurable voltage AQ1, AQ2: 0...10 V DC impedance 470 Ohm, resolution 10 bits Software-configurable current AQ1, AQ2: 0...20 mA, resolution 10 bits Software-configurable current DQ-, DQ+: 30 V DC Software-configurable current DQ-, DQ+: 100 mA |
| sampling duration |
5 ms +/- 1 ms (DI5, DI6) - discrete input 5 ms +/- 0.1 ms (AI1, AI2, AI3) - analog input 10 ms +/- 1 ms (AO1) - analog output 2 ms +/- 0.5 ms (DI1...DI4) - discrete input |
| accuracy |
+/- 1 % AO1, AO2 for a temperature variation 60 °C analog output +/- 0.6 % AI1, AI2, AI3 for a temperature variation 60 °C analog input |
| linearity error |
AO1, AO2: +/- 0.2 % for analog output AI1, AI2, AI3: +/- 0.15 % of maximum value for analog input |
| relay output number | 3 |
| relay output type |
Configurable relay logic R2: sequence relay NO electrical durability 100000 cycles Configurable relay logic R3: sequence relay NO electrical durability 100000 cycles Configurable relay logic R1: fault relay NO/NC electrical durability 100000 cycles |
| refresh time | Relay output (R1, R2, R3): 5 ms (+/- 0.5 ms) |
| minimum switching current | Relay output R1, R2, R3: 5 mA at 24 V DC |
| maximum switching current |
Relay output R1, R2, R3 on resistive load, cos phi = 1: 3 A at 30 V DC Relay output R1, R2, R3 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 250 V AC Relay output R1, R2, R3 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 30 V DC Relay output R1, R2, R3 on resistive load, cos phi = 1: 3 A at 250 V AC |
| isolation | Between power and control terminals |
| maximum output frequency | 500 kHz |
| maximum input current | 97.2 A |
| Variable speed drive application selection |
Other application Food and beverage processing Fan Mining mineral and metal Pump Mining mineral and metal Fan Oil and gas Other application Water and waste water Screw compressor Building - HVAC Pump Food and beverage processing Fan Food and beverage processing Atomization Food and beverage processing Electro submersible pump (ESP) Oil and gas Water injection pump Oil and gas Jet fuel pump Oil and gas Compressor for refinery Oil and gas Centrifuge pump Water and waste water Positive displacement pump Water and waste water Electro submersible pump (ESP) Water and waste water Screw pump Water and waste water Lobe compressor Water and waste water Screw compressor Water and waste water Compressor centrifugal Water and waste water Fan Water and waste water Conveyor Water and waste water Mixer Water and waste water |
| Motor power range AC-3 | 55…100 kW at 480…500 V 3 phases |
| quantity per set | 1 |
| enclosure mounting | Wall mounted |
| insulation resistance | > 1 MOhm 500 V DC for 1 minute to earth |
|---|---|
| noise level | 69.9 dB conforming to 86/188/EEC |
| operating position | Vertical +/- 10 degree |
