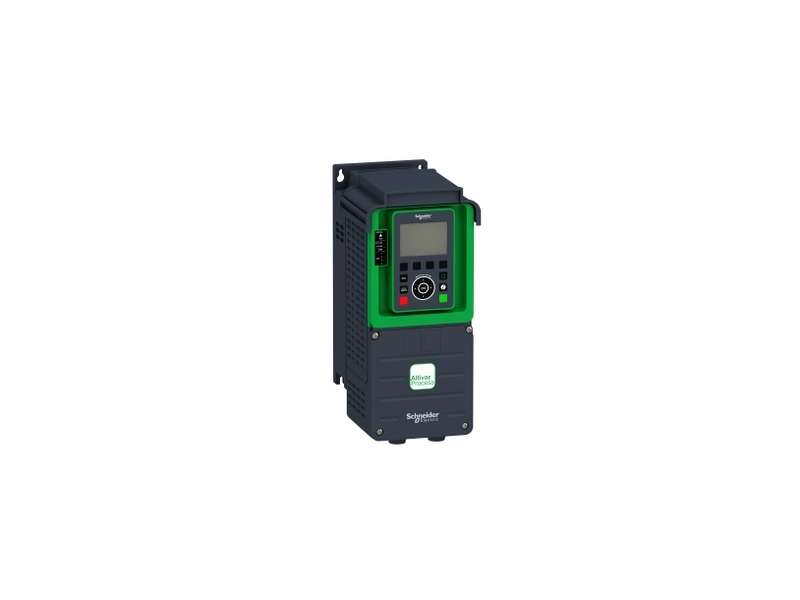

Schneider Electric Frekventni regulator ATV630 - 1.5kW/2HP - 200...240V - IP21/UL tip 1;ATV630U15M3
Variable speed drive, Altivar Process ATV600, ATV630, 1.5kW/2 hp, 200...240 V, IP21/UL type 1...
VAT-exclusive price: 99.037,00 |
VAT-inclusive price: 118.844,40 |
Variable speed drive, Altivar Process ATV600, ATV630, 1.5kW/2 hp, 200...240 V, IP21/UL type 1
| range of product | Altivar Process ATV600 |
|---|---|
| product or component type | Variable speed drive |
| product specific application | Process and utilities |
| device short name | ATV630 |
| variant | Standard version |
| product destination |
Asynchronous motors Synchronous motors |
| EMC filter | Without EMC filter |
| IP degree of protection |
IP21 conforming to IEC 61800-5-1 IP21 conforming to IEC 60529 |
| [Us] rated supply voltage | 200...240 V |
| degree of protection | UL type 1 conforming to UL 508C |
| type of cooling | Forced convection |
| supply frequency | 50...60 Hz - 5...5 % |
| [Us] rated supply voltage | 200...240 V - 15...10 % |
| motor power kW |
1.5 kW (normal duty) 0.75 kW (heavy duty) |
| motor power hp |
2 hp normal duty 1 hp heavy duty |
| line current |
5.9 A at 200 V (normal duty) 5 A at 240 V (normal duty) 3.3 A at 200 V (heavy duty) 3 A at 240 V (heavy duty) |
| prospective line Isc | 50 kA |
| apparent power |
