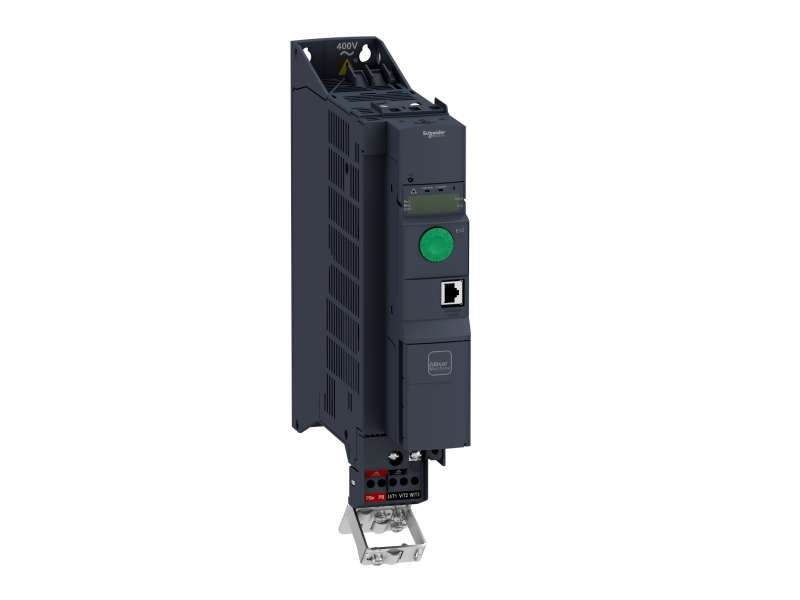

Schneider Electric Frekventni regulator ATV320 - 3kW - 380...500V - 3-fazno - format knjige ; ATV320U30N4B
variable speed drive, ATV320, 3 kW, 380…500 V, 3 phases, book...
VAT-exclusive price: 83.183,00 |
VAT-inclusive price: 99.819,60 |
variable speed drive, ATV320, 3 kW, 380…500 V, 3 phases, book
| [Us] rated supply voltage |
380...500 V - 15...10 %
|
|
|---|---|---|
| supply voltage limits |
323…550 V
|
|
| mounting mode |
Cabinet mount
|
|
| relative symmetric mains voltage tolerance |
10 %
|
|
| maximum output voltage |
500.0 V
|
|
| range of product |
Altivar Machine ATV320
|
|
| product or component type |
Variable speed drive
|
|
| network frequency |
50...60 Hz
|
|
| prospective line Isc |
5 kA
|
|
| product specific application |
Complex machines
|
|
| relative symmetric network frequency tolerance |
5 %
|
|
| variant |
Standard version
|
|
| continuous output current |
7.1 A at 4 kHz for heavy duty
|
|
| EMC filter |
Class C2 EMC filter integrated
|
|
| 4 quadrant operation possible |
True
|
|
| asynchronous motor control profile |
Voltage/frequency ratio, 5 points
Flux vector control without sensor, standard Voltage/frequency ratio - Energy Saving, quadratic U/f Flux vector control without sensor - Energy Saving Voltage/frequency ratio, 2 points |
|
| synchronous motor control profile |
Vector control without sensor
|
|
| type of cooling |
Fan
|
|
| speed drive output frequency |
0.1…599 Hz
|
|
| network number of phases |
3 phases
|
|
| nominal switching frequency |
4 kHz
|
|
| supply frequency |
50...60 Hz - 5...5 %
|
|
| switching frequency |
2...16 kHz adjustable
4...16 kHz with derating factor |
|
| motor power kW |
3.0 kW for heavy duty
|
|
| brake chopper integrated |
True
|
|
| communication port protocol |
Modbus serial
CANopen |
|
| application in industrial area permitted |
True
|
|
| apparent power |
7.3 kVA at 500 V (heavy duty)
|
|
| output voltage |
<= power supply voltage
|
|
| overvoltage category |
III
|
|
| regulation loop |
Adjustable PID regulator
|
|
| motor slip compensation |
Automatic whatever the load
Adjustable 0...300 % Not available in voltage/frequency ratio (2 or 5 points) |
|
| acceleration and deceleration ramps |
Linear
U S CUS Ramp switching Acceleration/deceleration ramp adaptation Acceleration/deceleration automatic stop with DC injection |
|
| braking to standstill |
By DC injection
|
|
| protection type |
Input phase breaks: drive
Overcurrent between output phases and earth: drive Overheating protection: drive Short-circuit between motor phases: drive Thermal protection: drive |
|
| frequency resolution |
Display unit: 0.1 Hz
Analog input: 0.012/50 Hz |
|
| method of access |
Slave CANopen
|
|
| width |
60.0 mm
|
|
| depth |
245.0 mm
|
|
| net weight |
3.0 kg
|
|
| analogue input number |
3
|
|
| discrete input number |
7
|
|
| analogue output number |
1
|
|
| sampling duration |
2 ms (AI1, AI2, AI3) - analog input
2 ms (AQ1) - analog output |
|
| accuracy |
+/- 0.2 % AI1, AI2, AI3 for a temperature of -10...60 °C analog input
+/- 0.5 % AI1, AI2, AI3 for a temperature of 25 °C analog input +/- 1 % AQ1 for a temperature of 25 °C analog output +/- 2 % AQ1 for a temperature of -10...60 °C analog output |
|
| linearity error |
AI1, AI2, AI3: +/- 0.2...0.5 % of maximum value for analog input
AQ1: +/- 0.3 % for analog output |
|
| with safety function Safe torque off (STO) |
True
|
|
| discrete output number |
3
|
|
| discrete output type |
Configurable relay logic: (R1A, R1B, R1C) NO/NC - 100000 cycles
Configurable relay logic: (R2A, R2B) NO - 100000 cycles Logic: (LO) |
|
| with safety function Safe Stop 1 (SS1) |
True
|
|
| refresh time |
Logic input (DI1...DI6): 8 ms (+/- 0.7 ms)
Relay output (R1A, R1B, R1C): 2 ms Relay output (R2A, R2C): 2 ms |
|
| with sft fct Safe Stop 2 (SS2) |
False
|
|
| minimum switching current |
Relay output R1, R2: 5 mA at 24 V DC
|
|
| with safety function Safe Operating Stop (SOS) |
False
|
|
| maximum switching current |
Relay output R1 on resistive load, cos phi = 1: 3 A at 250 V AC
Relay output R1 on resistive load, cos phi = 1: 4 A at 30 V DC Relay output R1, R2 on inductive load, cos phi = 0.4: 2 A at 250 V AC Relay output R1, R2 on inductive load, cos phi = 0.4: 2 A at 30 V DC Relay output R2 on resistive load, cos phi = 1: 5 A at 250 V AC Relay output R2 on resistive load, cos phi = 1: 5 A at 30 V DC |
|
| with safety function Safe brake management (SBC/SBT) |
False
|
|
| with safety function Safely Limited Speed (SLS) |
True
|
|
| isolation |
Between power and control terminals
|
|
| insulation resistance |
> 1 MOhm 500 V DC for 1 minute to earth
|
|
| with safety function Safe Speed Monitor (SSM) |
False
|
|
| with safety function Safe Direction (SDI) |
False
|
|
| power dissipation in W |
Fan: 93.0 W at 380 V, switching frequency 4 kHz
|
|
| with safety function Safely Limited Position (SLP) |
False
|
|
| with safety function Safe Position (SP) |
False
|
|
| volume of cooling air |
11.3 m3/h
|
|
| with safety function Safe programmable logic |
False
|
|
| operating position |
Vertical +/- 10 degree
|
|
| ambient air transport temperature |
-25…70 °C
|
|
| product certifications |
CE
ATEX NOM GOST EAC RCM KC REACH |
|
| marking |
CE
ATEX UL CSA EAC RCM |
| electromagnetic compatibility |
Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2
Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3 Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5 Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6 Voltage dips and interruptions immunity test conforming to IEC 61000-4-11 |
|
|---|---|---|
| vibration resistance |
1 gn (f= 13…200 Hz) conforming to EN/IEC 60068-2-6
1.5 mm peak to peak (f= 2…13 Hz) conforming to EN/IEC 60068-2-6 |
|
| shock resistance |
15 gn for 11 ms conforming to EN/IEC 60068-2-27
|
|
| relative humidity |
5…95 % without condensation conforming to IEC 60068-2-3
5…95 % without dripping water conforming to IEC 60068-2-3 |
|
| ambient air temperature for operation |
-10…50 °C without derating
50…60 °C with derating factor |
|
| ambient air temperature for storage |
-25…70 °C
|
|
| environmental characteristic |
Chemical pollution resistance class 3C3 conforming to EN/IEC 60721-3-3
Dust pollution resistance class 3S2 conforming to EN/IEC 60721-3-3 |
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
2.84 kg
|
|
| Package 1 Height |
9.6 cm
|
|
| Package 1 width |
27.5 cm
|
|
| Package 1 Length |
32.5 cm
|
|
| Unit Type of Package 2 |
P06
|
|
| Number of Units in Package 2 |
20
|
|
| Package 2 Weight |
69.8 kg
|
|
| Package 2 Height |
80 cm
|
|
| Package 2 width |
80 cm
|
|
| Package 2 Length |
60 cm
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation | ||
| Environmental Disclosure | ||
| Circularity Profile | ||
| WEEE |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
|
-
Altivar Machine ATV320 ATV320U30N4B
