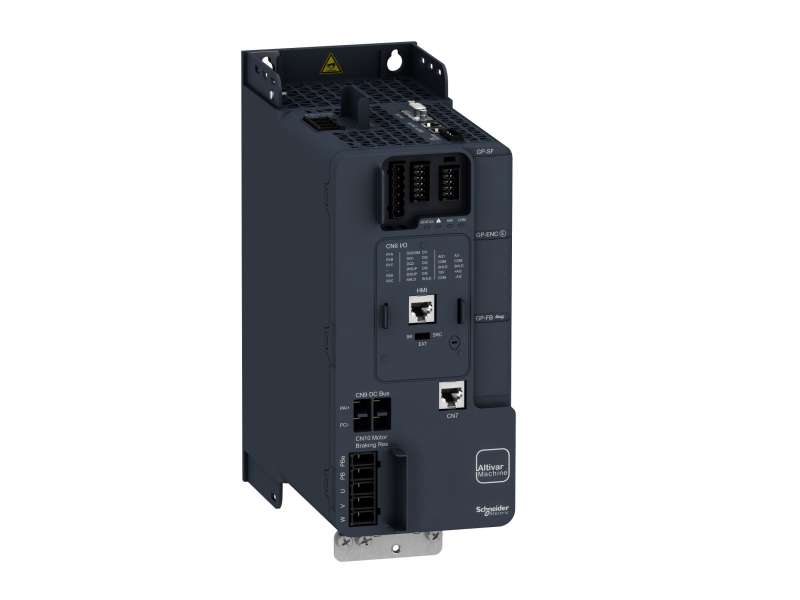

Schneider Electric Frekventni regulator - 5.5kW- 400V - 3-fazno - ATV340; ATV340U55N4
variable speed drive - 5.5kW- 400V - 3 phases - ATV340...
138.331,00
saving: 5.533,24
VAT-exclusive price: 110.664,80 |
VAT-inclusive price: 132.797,76 |
variable speed drive - 5.5kW- 400V - 3 phases - ATV340
| range of product |
Altivar Machine ATV340
|
|
|---|---|---|
| product or component type |
Variable speed drive
|
|
| device application |
Machine
|
|
| device short name |
ATV340
|
|
| variant |
Standard version
|
|
| product destination |
Asynchronous motors
Synchronous motors |
|
| EMC filter |
Integrated with 20 m conforming to EN/IEC 61800-3 category C3
|
|
| IP degree of protection |
IP20 conforming to IEC 61800-5-1
IP20 conforming to IEC 60529 |
|
| type of cooling |
Forced convection
|
|
| supply frequency |
50...60 Hz +/- 5 %
|
|
| network number of phases |
3 phases
|
|
| [Us] rated supply voltage |
380...480 V - 15...10 %
|
|
| motor power kW |
7.5 kW for normal duty
5.5 kW for heavy duty |
|
| motor power hp |
10 hp for normal duty
7 hp for heavy duty |
|
| line current |
20 A at 380 V without line choke (heavy duty)
16 A at 480 V without line choke (heavy duty) 15.3 A at 380 V with external line choke (normal duty) 12.2 A at 480 V with external line choke (normal duty) 11.6 A at 380 V with external line choke (heavy duty) 9.4 A at 480 V with external line choke (heavy duty) |
|
| prospective line Isc |
22 kA
|
|
| apparent power |
12.1 kVA at 480 V (normal duty)
13.3 kVA at 480 V (heavy duty) |
|
| continuous output current |
16.5 A at 4 kHz for normal duty
12.7 A at 4 kHz for heavy duty |
|
| maximum transient current |
18.2 A during 60 s (normal duty)
19.1 A during 60 s (heavy duty) 22.3 A during 2 s (normal duty) 22.9 A during 2 s (heavy duty) |
|
| asynchronous motor control profile |
Variable torque standard
Optimized torque mode Constant torque standard |
|
| synchronous motor control profile |
Permanent magnet motor
Reluctance motor |
|
| speed drive output frequency |
0.1…599 Hz
|
|
| nominal switching frequency |
4 kHz
|
|
| switching frequency |
2...16 kHz adjustable
7...16 kHz with derating factor |
|
| safety function |
STO (safe torque off) SIL 3
|
| number of preset speeds |
16 preset speeds
|
|
|---|---|---|
| communication port protocol |
Modbus serial
|
|
| option card |
Slot GP-FB: communication module for Profibus DP V1
Slot GP-FB: communication module for Profinet Slot GP-FB: communication module for DeviceNet Slot GP-FB: communication module for CANopen daisy chain RJ45 Slot GP-FB: communication module for CANopen SUB-D 9 Slot GP-FB: communication module for CANopen screw terminals Slot GP-FB: communication module for EtherCAT Slot GP-X: digital and analog I/O extension module Slot GP-X: output relay extension module Slot GP-ENC: 5/12 V digital encoder interface module Slot GP-ENC: analog encoder interface module Slot GP-ENC: resolver encoder interface module |
|
| output voltage |
<= power supply voltage
|
|
| permissible temporary current boost |
1.1 x In during 60 s (normal duty)
1.35 x In during 2 s (normal duty) 1.5 x In during 60 s (heavy duty) 1.8 x In during 2 s (heavy duty) |
|
| motor slip compensation |
Adjustable
Automatic whatever the load Can be suppressed Not available in permanent magnet motor law |
|
| acceleration and deceleration ramps |
Linear adjustable separately from 0.01...9999 s
S, U or customized |
|
| braking to standstill |
By DC injection
|
|
| protection type |
Thermal protection: motor
Safe torque off: motor Motor phase loss: motor Thermal protection: drive Safe torque off: drive Overheating: drive Overcurrent: drive Output overcurrent between motor phase and earth: drive Output overcurrent between motor phases: drive Short-circuit between motor phase and earth: drive Short-circuit between motor phases: drive Motor phase loss: drive DC Bus overvoltage: drive Line supply overvoltage: drive Line supply undervoltage: drive Input supply loss: drive Exceeding limit speed: drive Break on the control circuit: drive |
|
| frequency resolution |
Display unit: 0.1 Hz
Analog input: 0.012/50 Hz |
|
| electrical connection |
DC bus: screw terminal4...6 mm²/AWG 12...AWG 10
Control: screw terminal0.2...2.5 mm²/AWG 24...AWG 12 Line side: screw terminal1.5...6 mm²/AWG 14...AWG 10 Motor: screw terminal1.5...6 mm²/AWG 14...AWG 10 |
|
| connector type |
connector(s)1 x RJ45, Modbus serial on front face
connector(s)1 x RJ45, Modbus serial for HMI on front face |
|
| physical interface |
2-wire RS 485 for Modbus serial
|
|
| transmission frame |
RTU for Modbus serial
|
|
| transmission rate |
4800 bps, 9600 bps, 19200 bps, 38.4 Kbps for Modbus serial
|
|
| data format |
8 bits, configurable odd, even or no parity for Modbus serial
|
|
| type of polarization |
No impedance for Modbus serial
|
|
| number of addresses |
1…247 for Modbus serial
|
|
| method of access |
Slave Modbus RTU
|
|
| supply |
External supply for digital inputs: 24 V DC (19…30 V), <1.25 mA, protection type: overload and short-circuit protection
Internal supply for reference potentiometer (1 to 10 kOhm): 10.5 V DC +/- 5 %, <10 mA, protection type: overload and short-circuit protection Internal supply for digital inputs and STO: 24 V DC (21…27 V), <200 mA, protection type: overload and short-circuit protection |
|
| local signalling |
Local diagnostic: 4 LED (mono/dual colour)
Communication module status: 4 LED (dual colour) |
|
| width |
110 mm
|
|
| height |
270 mm
|
|
| depth |
234 mm
|
|
| net weight |
2.9 kg
|
|
| analogue input number |
2
|
|
| analogue input type |
AI1 software-configurable current: 0...20 mA, impedance: 250 Ohm, resolution 12 bits
AI1 software-configurable temperature probe or water level sensor AI1 software-configurable voltage: 0...10 V DC, impedance: 31.5 kOhm, resolution 12 bits AI2 software-configurable voltage: - 10...10 V DC, impedance: 20 kOhm, resolution 12 bits |
|
| discrete input number |
8
|
|
| discrete input type |
PTI programmable as pulse input: 0…30 kHz, 24 V DC (<= 30 V)
STOA, STOB safe torque off, 24 V DC (<= 30 V), impedance: > 2.2 kOhm DI1...DI5 programmable, 24 V DC (<= 30 V), impedance: 4.4 kOhm |
|
| input compatibility |
DI1...DI5: discrete input level 1 PLC conforming to EN/IEC 61131-2
PTI: pulse input level 1 PLC conforming to IEC 65A-68 STOA, STOB: discrete input level 1 PLC conforming to EN/IEC 61131-2 |
|
| discrete input logic |
Positive logic (source) (DI1...DI5), < 5 V (state 0), > 11 V (state 1)
Negative logic (sink) (DI1...DI5), > 16 V (state 0), < 10 V (state 1) Positive logic (source) (PTI), < 0.6 V (state 0), > 2.5 V (state 1) Positive logic (source) (STOA, STOB), < 5 V (state 0), > 11 V (state 1) |
|
| analogue output number |
1
|
|
| analogue output type |
Software-configurable voltage AQ1: 0...10 V DC impedance 470 Ohm, resolution 10 bits
Software-configurable current AQ1: 0...20 mA impedance 500 Ohm, resolution 10 bits |
|
| input/output type |
Programmable as logic input/output DQ1: 0…1 kHz, <= 30 V DC, 100 mA
Programmable as logic input/output DQ2: 0…1 kHz, <= 30 V DC, 100 mA |
|
| sampling duration |
2 ms +/- 0.5 ms (DI1...DI5) - discrete input
5 ms +/- 1 ms (PTI) - pulse input 1 ms +/- 1 ms (AI1, AI2) - analog input 5 ms +/- 1 ms (AQ1) - analog output 2 ms +/- 0.5 ms (DQ1, DQ2) - discrete input/output |
|
| accuracy |
+/- 0.6 % AI1, AI2 for a temperature variation 60 °C analog input
+/- 1 % AQ1 for a temperature variation 60 °C analog output |
|
| linearity error |
AI1, AI2: +/- 0.15 % of maximum value for analog input
AQ1: +/- 0.2 % for analog output |
|
| relay output number |
2
|
|
| relay output type |
Configurable relay logic R1: fault relay NO/NC electrical durability 100000 cycles
Configurable relay logic R2: sequence relay NO electrical durability 100000 cycles |
|
| refresh time |
Relay output (R1, R2): 5 ms (+/- 0.5 ms)
|
|
| minimum switching current |
Relay output R1, R2: 5 mA at 24 V DC
|
|
| maximum switching current |
Relay output R1 on resistive load, cos phi = 1: 3 A at 250 V AC
Relay output R1 on resistive load, cos phi = 1: 3 A at 30 V DC Relay output R1 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 250 V AC Relay output R1 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 30 V DC Relay output R2 on resistive load, cos phi = 1: 5 A at 250 V AC Relay output R2 on resistive load, cos phi = 1: 5 A at 30 V DC Relay output R2 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 250 V AC Relay output R2 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 30 V DC |
|
| mounting mode |
Cabinet mount
|
| isolation |
Between power and control terminals
|
|
|---|---|---|
| insulation resistance |
> 1 MOhm 500 V DC for 1 minute to earth
|
|
| noise level |
46.6 dB conforming to 86/188/EEC
|
|
| power dissipation in W |
Natural convection: 134 W at 380 V, switching frequency 4 kHz (heavy duty)
Forced convection: 134 W at 380 V, switching frequency 4 kHz (heavy duty) Natural convection: 164 W at 380 V, switching frequency 4 kHz (normal duty) Forced convection: 164 W at 380 V, switching frequency 4 kHz (normal duty) |
|
| operating position |
Vertical +/- 10 degree
|
|
| electromagnetic compatibility |
Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2
Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3 Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5 Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6 |
|
| pollution degree |
2 conforming to EN/IEC 61800-5-1
|
|
| vibration resistance |
1.5 mm peak to peak (f= 2…19 Hz) conforming to EN/IEC 60721-3-3 class 3M3
1 gn (f= 9…200 Hz) conforming to EN/IEC 60721-3-3 class 3M3 |
|
| shock resistance |
15 gn for 11 ms, class 3M3 conforming to EN/IEC 60721-3-3
|
|
| relative humidity |
5…95 % without condensation conforming to EN/IEC 60721-3-3 class 3K3
|
|
| ambient air temperature for operation |
-15…50 °C without current derating (heavy duty)
-15…40 °C without current derating (normal duty) 50…60 °C with current derating (heavy duty) 40…60 °C with current derating (normal duty) |
|
| ambient air temperature for storage |
-40…70 °C
|
|
| operating altitude |
<= 1000 m without derating
1000...3000 m with current derating 1 % per 100 m |
|
| environmental characteristic |
Chemical pollution resistance class 3C3 conforming to EN/IEC 60721-3-3
Dust pollution resistance class 3S3 conforming to EN/IEC 60721-3-3 |
|
| standards |
EN/IEC 61800-3
Environment 1 category C2 EN/IEC 61800-3 Environment 2 category C3 EN/IEC 61800-3 EN/IEC 61800-5-1 IEC 60721-3 IEC 61508 IEC 13849-1 UL 618000-5-1 |
|
| product certifications |
REACH
CSA TÜV UL |
|
| marking |
CE
|
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
3.72 kg
|
|
| Package 1 Height |
13 cm
|
|
| Package 1 width |
37 cm
|
|
| Package 1 Length |
31.5 cm
|
|
| Unit Type of Package 2 |
S04
|
|
| Number of Units in Package 2 |
2
|
|
| Package 2 Weight |
8.14 kg
|
|
| Package 2 Height |
30 cm
|
|
| Package 2 width |
40 cm
|
|
| Package 2 Length |
60 cm
|
|
| Unit Type of Package 3 |
P06
|
|
| Number of Units in Package 3 |
10
|
|
| Package 3 Weight |
50.2 kg
|
|
| Package 3 Height |
80 cm
|
|
| Package 3 width |
80 cm
|
|
| Package 3 Length |
60 cm
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| REACh Regulation | ||
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation | ||
| Environmental Disclosure | ||
| Circularity Profile | ||
| WEEE |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
|
-
