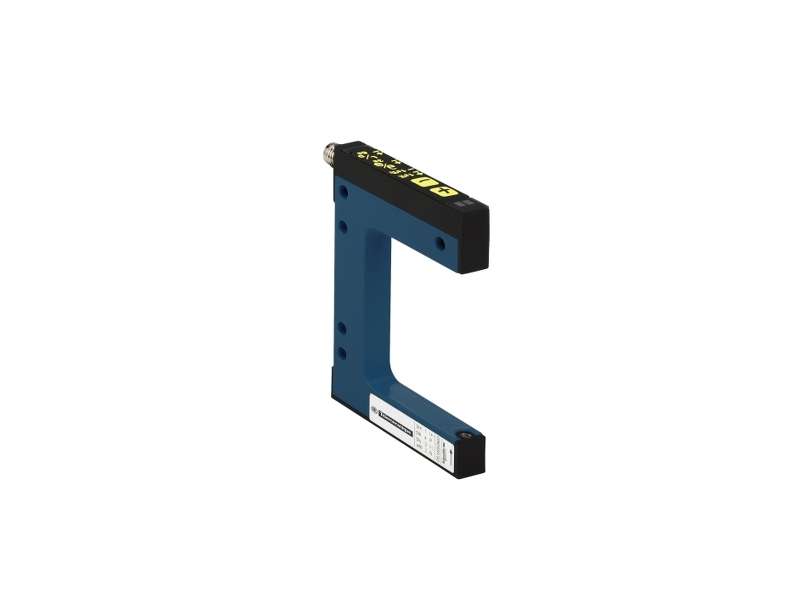

Schneider Electric Fotoelektrični senzor - XUY - viljuškasti - teach - 50X59mm - 12..24VDC - M8;XUYFANEP60050
Photoelectric sensors XU, XUY, fork, teach, 50X59mm, 12...24 VDC, M8...
VAT-exclusive price: 25.584,00 |
VAT-inclusive price: 30.700,80 |
Photoelectric sensors XU, XUY, fork, teach, 50X59mm, 12...24 VDC, M8
| range of product | Telemecanique Photoelectric sensors XU |
|---|---|
| series name | Application |
| electronic sensor type | Photo-electric sensor |
| sensor name | XUY |
| sensor design | Fork |
| detection system | Thru beam |
| emission | Infrared LED, modulated |
| passage width | 50 mm |
| passage depth | 59 mm |
| material | Metal/plastic |
| supply circuit type | DC |
| wiring technique | 4-wire |
| discrete output type | PNP and NPN |
| discrete output function | 1 NO or 1 NC programmable |
| electrical connection | 1 male connector M8, 4 pins |
| product specific application |
Detection on small conveyor Detection on vibrating rail Detection of double sheet Detection of labels Detection of reference marks |
| [Sn] nominal sensing distance | 50 mm |
| enclosure material | Painted aluminium and polyamide/glass |
|---|---|
| keypad type | Yellow |
| minimum object diameter for detection | 0.2 mm |
| type of output signal | Discrete |
| output type | Solid state |
| status LED |
Adjustment mode and keypad locking: 1 LED (red) Output state: 1 LED (yellow) |
| [Us] rated supply voltage | 12...24 V DC with reverse polarity protection |
| supply voltage limits | 10…30 V DC |
| switching capacity in mA | 100 mA (overload and short-circuit protection) |
| switching frequency | 10 kHz |
| maximum voltage drop | <2 V (closed state) |
| current consumption | 40 mA no-load |
| load capacitance | 330 nF |
| time response | -20…20 µs |
| setting-up | Self teaching |
| net weight | 0.19 kg |
| product certifications |
CE cULus |
|---|---|
| ambient air temperature for operation | -20…60 °C |
| ambient air temperature for storage | -30…80 °C |
| immunity to ambient light |
10000 lux natural light 5000 lux incandescent bulb |
| vibration resistance | 7 gn, amplitude = +/- 0.75 mm (f = 10…55 Hz) conforming to IEC 60068-2-6 |
| shock resistance | 30 gn (duration = 11 ms) conforming to IEC 60068-2-27 |
| IP degree of protection | IP65 conforming to IEC 60529 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 82.0 g |
| Package 1 Height | 1.7 cm |
| Package 1 Width | 13.2 cm |
| Package 1 Length | 16.2 cm |
| Unit Type of Package 2 | S01 |
| Number of Units in Package 2 | 12 |
| Package 2 Weight | 1.168 kg |
| Package 2 Height | 15.0 cm |
| Package 2 Width | 15.0 cm |
| Package 2 Length | 40.0 cm |
| Warranty | 18 months |
|---|
