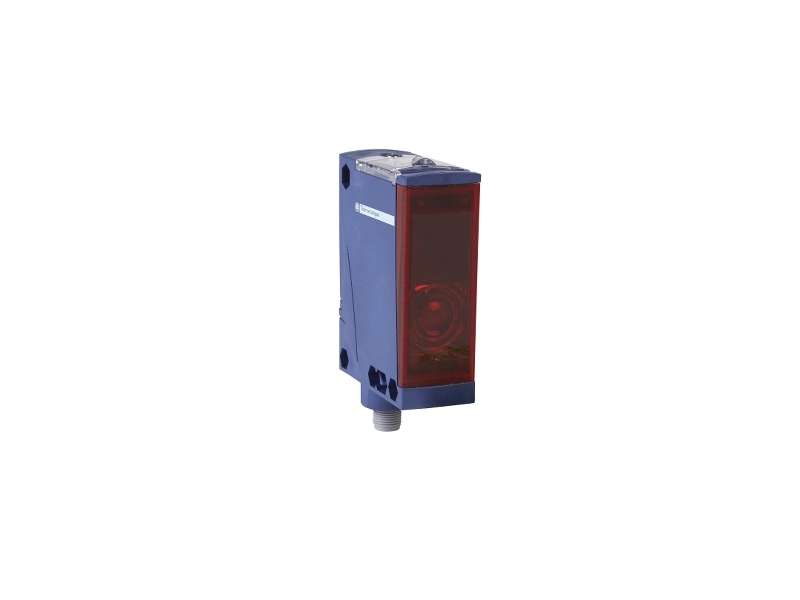

Schneider Electric Fotoelektrični senzor - XUX - refleksni - Sn 14m - 12..24VDC - M12;XUX1APANM12

Schneider Electric Fotoelektrični senzor - XUX - refleksni - Sn 14m - 12..24VDC - M12;XUX1APANM12

Photoelectric sensors XU, XUX, reflex, Sn 14 m, 12...24 VDC, M12...

Brand: Schneider Electric
Product Code: XUX1APANM12
Availability: Check availability
VAT-exclusive price: 15.862,00
VAT-inclusive price: 19.034,40

Photoelectric sensors XU, XUX, reflex, Sn 14 m, 12...24 VDC, M12




Main
range of product Telemecanique Photoelectric sensors XU
series name General purpose single mode
electronic sensor type Photo-electric sensor
sensor name XUX
sensor design Compact 92 x 71
detection system Reflex
material Plastic
type of output signal Discrete
supply circuit type DC
wiring technique 3-wire
discrete output type PNP
discrete output function 1 NO
electrical connection 1 male connector M12, 4 pins
product specific application -
emission Infrared reflex
[Sn] nominal sensing distance 14 m reflex need reflector XUZC50
Complementary
enclosure material PBT
lens material PMMA
maximum sensing distance 20 m reflex
output type Solid state
status LED 1 LED (yellow) for output state
1 LED (green) for supply
[Us] rated supply voltage 12...24 V DC
switching capacity in mA <= 100 mA (overload and short-circuit protection)
switching frequency <= 250 Hz
maximum voltage drop <1.5 V (closed state)
current consumption <= 35 mA no-load
maximum delay first up 15 ms
maximum delay response 2 ms
maximum delay recovery 2 ms
setting-up Sensitivity adjustment
depth 77 mm
height 92 mm
width 31 mm
net weight 0.2 kg
Environment
product certifications CSA
UL
CE
ambient air temperature for operation -25…55 °C
ambient air temperature for storage -40…70 °C
vibration resistance 7 gn, amplitude = +/- 1.5 mm (f = 10…55 Hz) conforming to IEC 60068-2-6
shock resistance 30 gn (duration = 11 ms) conforming to IEC 60068-2-27
IP degree of protection IP67 double insulation conforming to IEC 60529
IP65 double insulation conforming to IEC 60529
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Weight 186.0 g
Package 1 Height 4.3 cm
Package 1 width 9.5 cm
Package 1 Length 13.0 cm
Unit Type of Package 2 S01
Number of Units in Package 2 11
Package 2 Weight 2.282 kg
Package 2 Height 15.0 cm
Package 2 width 15.0 cm
Package 2 Length 40.0 cm
Unit Type of Package 3 S02
Number of Units in Package 3 22
Package 3 Weight 4.38 kg
Package 3 Height 15.0 cm
Package 3 width 30.0 cm
Package 3 Length 40.0 cm

Contractual warranty
Warranty 18 months

Main
range of product Telemecanique Photoelectric sensors XU
series name General purpose single mode
electronic sensor type Photo-electric sensor
sensor name XUX
sensor design Compact 92 x 71
detection system Reflex
material Plastic
type of output signal Discrete
supply circuit type DC
wiring technique 3-wire
discrete output type PNP
discrete output function 1 NO
electrical connection 1 male connector M12, 4 pins
product specific application -
emission Infrared reflex
[Sn] nominal sensing distance 14 m reflex need reflector XUZC50
Complementary
enclosure material PBT
lens material PMMA
maximum sensing distance 20 m reflex
output type Solid state
status LED 1 LED (yellow) for output state
1 LED (green) for supply
[Us] rated supply voltage 12...24 V DC
switching capacity in mA <= 100 mA (overload and short-circuit protection)
switching frequency <= 250 Hz
maximum voltage drop <1.5 V (closed state)
current consumption <= 35 mA no-load
maximum delay first up 15 ms
maximum delay response 2 ms
maximum delay recovery 2 ms
setting-up Sensitivity adjustment
depth
