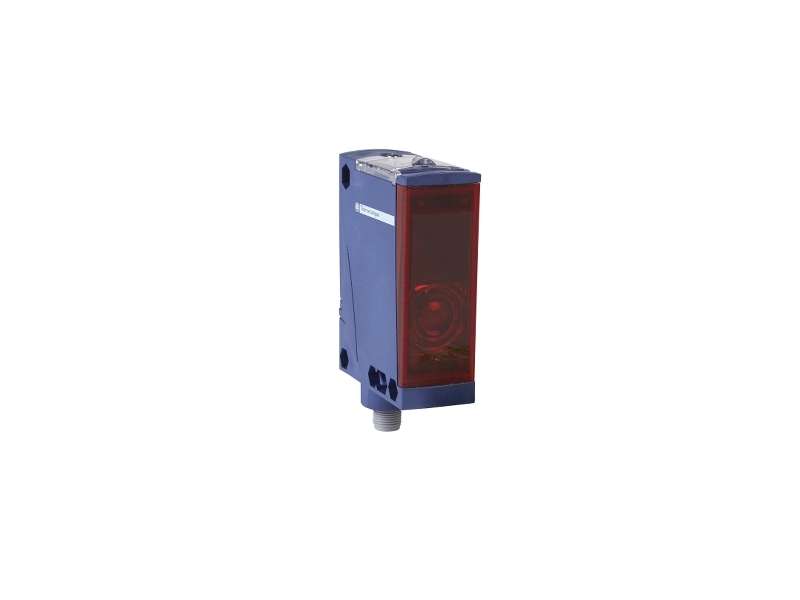

Schneider Electric Fotoelektrični senzor - XUX - multi - Sn 0..40m - 12..24VDC - M12;XUX0AKSAM12

Photoelectric sensors XU, XUX, multi, Sn 0...40 m, 12...24 VDC, M12...

Brand: Schneider Electric
Product Code: XUX0AKSAM12
Availability: Check availability

VAT-exclusive price: 23.339,00

VAT-inclusive price: 28.006,80

Qnt:

Description
Specification

Photoelectric sensors XU, XUX, multi, Sn 0...40 m, 12...24 VDC, M12

Main
range of product	Telemecanique Photoelectric sensors XU
series name	General purpose multimode
electronic sensor type	Photo-electric sensor
sensor name	XUX
sensor design	Compact 92 x 71
detection system	Multimode
material	Plastic
type of output signal	Discrete
supply circuit type	DC
wiring technique	3-wire
discrete output function	1 NO or 1 NC programmable
electrical connection	1 male connector M12, 4 pins
product specific application	-
emission	Infrared diffuse Infrared diffuse with background suppression Infrared thru beam Red polarised reflex
[Sn] nominal sensing distance	11 m polarised reflex need reflector XUZC50 40 m thru beam need a transmitter XUX0AKSAM12T 2 m diffuse 1.3 m diffuse with background suppression

Complementary
enclosure material	PBT
lens material	PMMA
maximum sensing distance	15 m polarised reflex 3 m diffuse 60 m thru beam 1.3 m diffuse with background suppression
output type	Solid state
add on output	With alarm output, <= 100 mA with overload and short-circuit protection
status LED	1 LED (green) for supply 1 LED (red) for instability 1 LED (yellow) for output state
[Us] rated supply voltage	12...24 V DC with reverse polarity protection
switching capacity in mA	<= 100 mA (overload and short-circuit protection)
switching frequency	<= 250 Hz
maximum voltage drop	<1.5 V (closed state)
current consumption	<= 35 mA no-load
maximum delay first up	200 ms
maximum delay response	2 ms
maximum delay recovery	2 ms
setting-up	Self-teaching
depth	77 mm
height	92 mm
width	31 mm
net weight	0.2 kg

Environment
product certifications	UL CSA CE
ambient air temperature for operation	-25…55 °C
ambient air temperature for storage	-40…70 °C
vibration resistance	7 gn, amplitude = +/- 1.5 mm (f = 10…55 Hz) conforming to IEC 60068-2-6
shock resistance	30 gn (duration = 11 ms) conforming to IEC 60068-2-27
IP degree of protection	IP65 double insulation conforming to IEC 60529 IP67 double insulation conforming to IEC 60529

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Weight	198.0 g
Package 1 Height	4.2 cm
Package 1 width	9.5 cm
Package 1 Length	13.0 cm
Unit Type of Package 2	S02
Number of Units in Package 2	22
Package 2 Weight	4.687 kg
Package 2 Height	15.0 cm
Package 2 width	30.0 cm
Package 2 Length	40.0 cm

Contractual warranty
Warranty	18 months
