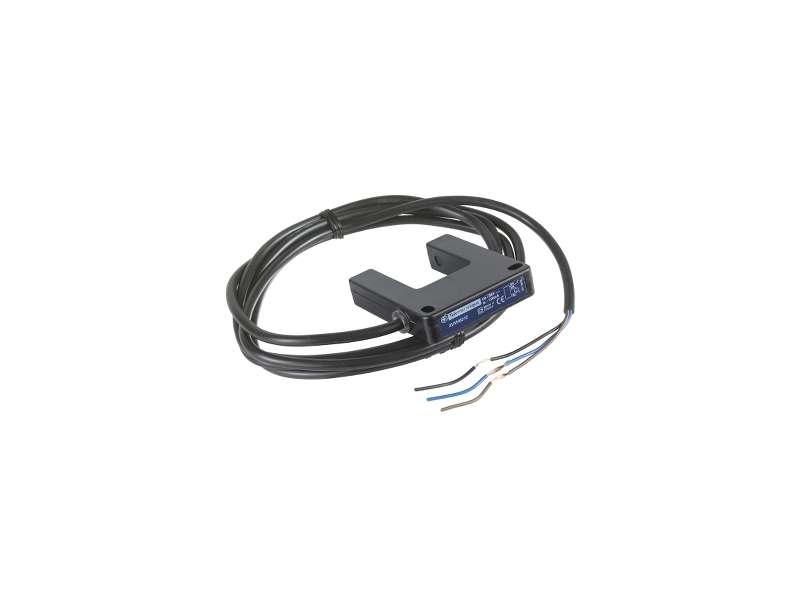

Schneider Electric Fotoelektrični senzor - XUV - viljuškasti - 30X30mm - 12..24VDC - kabl 2m;XUVH0312
Photoelectric sensors XU, XUV, fork, handling, 30X30mm, 12...24 VDC, cable 2 m...
VAT-exclusive price: 18.894,00 |
VAT-inclusive price: 22.672,80 |
Photoelectric sensors XU, XUV, fork, handling, 30X30mm, 12...24 VDC, cable 2 m
| range of product | Telemecanique Photoelectric sensors XU |
|---|---|
| series name | Application material handling |
| electronic sensor type | Photo-electric sensor |
| sensor name | XUV |
| sensor design | Fork |
| detection system | Thru beam |
| emission | Infrared |
| passage width | 30 mm |
| passage depth | 40 mm |
| material | Plastic |
| supply circuit type | DC |
| wiring technique | 3-wire |
| discrete output type | PNP |
| discrete output function | 1 NO |
| electrical connection | Cable |
| cable length | 2 m |
| product specific application | Detection of flags in lifts/transtockers |
| [Sn] nominal sensing distance | 30 mm |
| enclosure material | ABS/PC |
|---|---|
| lens material | PMMA |
| type of output signal | Discrete |
| output type | Solid state |
| output function governance | Dark |
| cable composition | 3 x 0.34 mm² |
| wire insulation material | PvR |
| cable outer diameter | 5 mm |
| status LED | Output state: 1 LED (red) |
| [Us] rated supply voltage | 24 V DC with reverse polarity protection |
| supply voltage limits | 19…38 V DC |
| switching capacity in mA | <= 150 mA (overload and short-circuit protection) |
| switching frequency | <= 1 kHz |
| maximum voltage drop | <1.5 V (closed state) |
| current consumption | <= 20 mA no-load |
| maximum delay first up | 30 ms |
| maximum delay response | 0.5 ms |
| maximum delay recovery | 0.5 ms |
| setting-up | Without sensitivity adjustment |
| depth | 68 mm |
| height | 59 mm |
| width | 14 mm |
| net weight | 0.13 kg |
| product certifications | CE |
|---|---|
| ambient air temperature for operation | -5…55 °C |
| ambient air temperature for storage | -20…70 °C |
| vibration resistance | 7 gn, amplitude = +/- 1 mm (f = 10…42 Hz) conforming to IEC 60068-2-6 |
| shock resistance | 30 gn (duration = 11 ms) conforming to IEC 60068-2-27 |
| IP degree of protection | IP54 conforming to IEC 60529 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 100.0 g |
| Package 1 Height | 2.5 cm |
| Package 1 Width | 15.0 cm |
| Package 1 Length | 15.0 cm |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 25 |
| Package 2 Weight | 2.834 kg |
| Package 2 Height | 15.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Warranty | 18 months |
|---|
