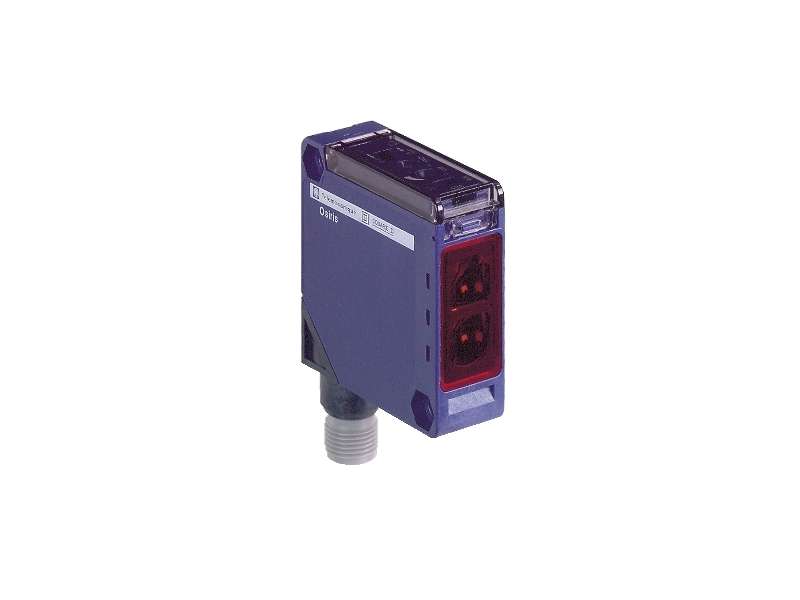

Schneider Electric Fotoelektrični senzor - XUK - refleksni - Sn 7m - 12..24VDC - M12;XUK1APBNM12

Photoelectric sensors XU, XUK, reflex, Sn 7 m, 12...24 VDC, M12...

Brand: Schneider Electric
Product Code: XUK1APBNM12
Availability: Check availability

VAT-exclusive price: 11.115,00

VAT-inclusive price: 13.338,00

Qnt:

Description
Specification

Photoelectric sensors XU, XUK, reflex, Sn 7 m, 12...24 VDC, M12

Main
range of product	Telemecanique Photoelectric sensors XU
series name	General purpose single mode
electronic sensor type	Photo-electric sensor
sensor name	XUK
sensor design	Compact 50 x 50
detection system	Reflex
material	Plastic
type of output signal	Discrete
supply circuit type	DC
wiring technique	3-wire
discrete output type	PNP
discrete output function	1 NC
electrical connection	1 male connector M12, 4 pins
product specific application	-
emission	Infrared reflex
[Sn] nominal sensing distance	7 m reflex need reflector XUZC50

Complementary
enclosure material	PBT
lens material	PMMA
maximum sensing distance	10 m reflex
output type	Solid state
wire insulation material	PVC
status LED	1 LED (yellow) for output state
[Us] rated supply voltage	12...24 V DC
switching capacity in mA	<= 100 mA (overload and short-circuit protection)
switching frequency	<= 250 Hz
maximum voltage drop	<1.5 V (closed state)
current consumption	<= 35 mA no-load
maximum delay first up	15 ms
maximum delay response	2 ms
maximum delay recovery	2 ms
setting-up	Without sensitivity adjustment
depth	50 mm
height	50 mm
width	18 mm
net weight	0.175 kg

Environment
product certifications	UL CSA CE
ambient air temperature for operation	-25…55 °C
ambient air temperature for storage	-40…70 °C
vibration resistance	7 gn, amplitude = +/- 1.5 mm (f = 10…55 Hz) conforming to IEC 60068-2-6
shock resistance	30 gn (duration = 11 ms) conforming to IEC 60068-2-27
IP degree of protection	IP65 double insulation conforming to IEC 60529

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Weight	59.0 g
Package 1 Height	4.2 cm
Package 1 width	9.7 cm
Package 1 Length	6.7 cm
Unit Type of Package 2	S02
Number of Units in Package 2	44
Package 2 Weight	2.988 kg
Package 2 Height	15.0 cm
Package 2 width	30.0 cm
Package 2 Length	40.0 cm

Contractual warranty
Warranty	18 months
