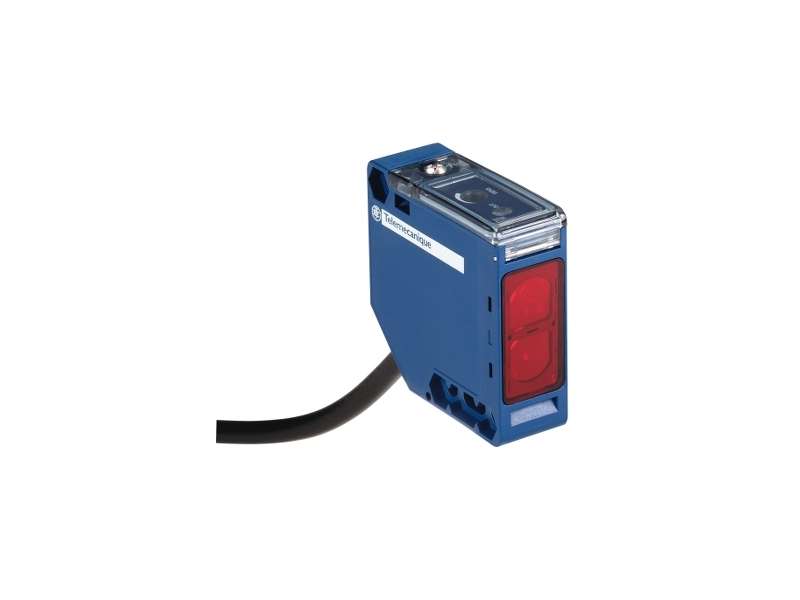

Schneider Electric Fotoelektrični senzor - XUK - polarizovani - Sn 5m - 24..240 V AC/DC - kabl 10m;XUK9ARCNL10
Photoelectric sensors XU, XUK, polarised, Sn 5 m, 24...240VAC/DC, cable 10 m...
Price on request
Photoelectric sensors XU, XUK, polarised, Sn 5 m, 24...240VAC/DC, cable 10 m
| range of product | Telemecanique Photoelectric sensors XU |
|---|---|
| series name | General purpose single mode |
| electronic sensor type | Photo-electric sensor |
| sensor name | XUK |
| sensor design | Compact 50 x 50 |
| detection system | Polarised reflex |
| material | Plastic |
| type of output signal | Discrete |
| supply circuit type | AC/DC |
| wiring technique | 5-wire |
| discrete output function | 1 C/O |
| electrical connection | Cable |
| cable length | 10 m |
| product specific application | - |
| emission | Red polarised reflex |
| [Sn] nominal sensing distance | 6 m polarised reflex need reflector XUZC50 |
| enclosure material | PBT |
|---|---|
| lens material | PMMA |
| maximum sensing distance | 8 m polarised reflex |
| output type | Relay |
| wire insulation material | PVC |
| status LED |
1 LED (yellow) for output state 1 LED (green) for supply |
| [Us] rated supply voltage | 24...240 V AC/DC |
| supply voltage limits |
20…264 V AC 20…264 V DC |
| switching capacity in mA | 3 A (cos φ = 1 for 0.5 million cycles at 1 operating cycle per second at 250 V) |
| switching frequency | <= 20 Hz |
| maximum voltage drop | <1.5 V (closed state) |
| current consumption | <= 35 mA no-load |
| maximum power consumption in W | 2 W AC |
| maximum delay first up | 60 ms |
| maximum delay response | 25 ms |
| maximum delay recovery | 25 ms |
| setting-up | Without sensitivity adjustment |
| electrical durability | 500000 cycles, cos f = 1, operating rate <60 cyc/mn at 250 V |
| depth | 50 mm |
| height | 50 mm |
| width | 18 mm |
| net weight | 0.19 kg |
| product certifications |
CSA UL CE |
|---|---|
| ambient air temperature for operation | -25…55 °C |
| ambient air temperature for storage | -40…70 °C |
| vibration resistance | 7 gn, amplitude = +/- 1.5 mm (f = 10…55 Hz) conforming to IEC 60068-2-6 |
| shock resistance | 30 gn (duration = 11 ms) conforming to IEC 60068-2-27 |
| IP degree of protection | IP65 double insulation conforming to IEC 60529 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 578.0 g |
| Package 1 Height | 7.5 cm |
| Package 1 width | 13.0 cm |
| Package 1 Length | 13.0 cm |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 10 |
| Package 2 Weight | 6.152 kg |
| Package 2 Height | 15.0 cm |
| Package 2 width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Warranty | 18 months |
|---|
