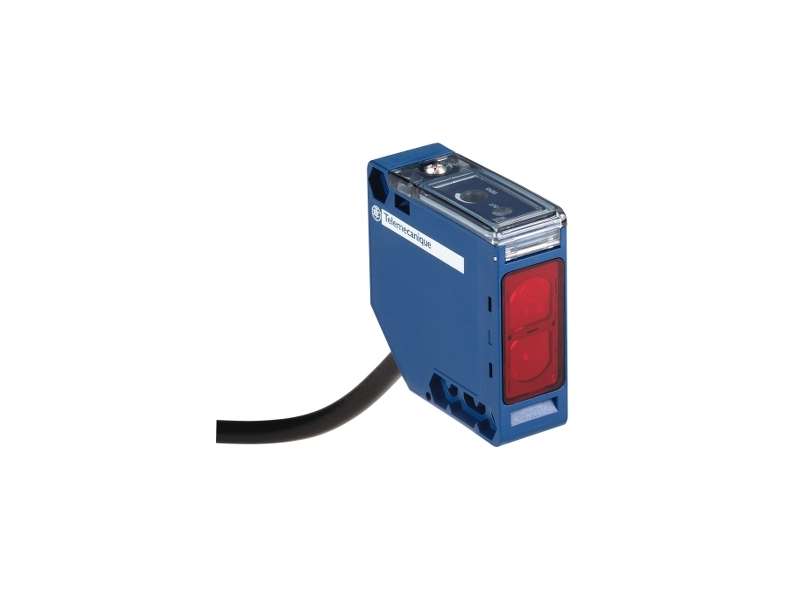

Schneider Electric Fotoelektrični senzor - XUK - BGS - Sn 0.7m - 24..240 V AC/DC - kabl 2m;XUK8ARCTL2
Photoelectric sensors XU, XUK, BGS, Sn 0.7 m, 24...240VAC/DC, cable 2 m...
VAT-exclusive price: 18.292,00 |
VAT-inclusive price: 21.950,40 |
Photoelectric sensors XU, XUK, BGS, Sn 0.7 m, 24...240VAC/DC, cable 2 m
| range of product | Telemecanique Photoelectric sensors XU |
|---|---|
| series name | General purpose single mode |
| electronic sensor type | Photo-electric sensor |
| sensor name | XUK |
| sensor design | Compact 50 x 50 |
| detection system | Diffuse with background suppression |
| material | Plastic |
| type of output signal | Discrete |
| supply circuit type | AC/DC |
| wiring technique | 5-wire |
| discrete output function | 1 C/O |
| electrical connection | Cable |
| cable length | 2 m |
| product specific application | - |
| emission | Infrared diffuse with background suppression |
| [Sn] nominal sensing distance | 0.75 m diffuse with background suppression |
| enclosure material | PBT |
|---|---|
| lens material | PMMA |
| maximum sensing distance | 0.75 m diffuse with background suppression |
| output type | Relay |
| cable composition | 5 x 0.34 mm² |
| wire insulation material | PVC |
| cable outer diameter | 6 mm |
| status LED |
1 LED (green) for supply on 1 LED (yellow) for output state |
| [Us] rated supply voltage | 24...240 V AC/DC |
| supply voltage limits |
20…264 V AC 20…264 V DC |
| switching capacity in mA | 3 A (cos φ = 1 for 0.5 million cycles at 1 operating cycle per second at 250 V) |
| switching frequency | <= 20 Hz |
| maximum voltage drop | <1.5 V (closed state) |
| current consumption | <= 35 mA no-load |
| maximum power consumption in W | 2 W AC |
| maximum delay first up | 60 ms |
| maximum delay response | 25 ms |
| maximum delay recovery | 25 ms |
| setting-up | Self teaching |
| electrical durability | 500000 cycles, cos f = 1, operating rate <60 cyc/mn at 250 V |
| depth | 50 mm |
| height | 50 mm |
| width | 18 mm |
| net weight | 0.15 kg |
| product certifications |
CE Ecolab |
|---|---|
| ambient air temperature for operation | -20…60 °C |
| ambient air temperature for storage | -30…70 °C |
| vibration resistance | 7 gn (f = 10…55 Hz) conforming to IEC 60068-2-6 |
| shock resistance | 30 gn (duration = 11 ms) conforming to IEC 60947-5-2 |
| IP degree of protection | IP65 double insulation conforming to IEC 60529 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 181.0 g |
| Package 1 Height | 4.0 cm |
| Package 1 width | 9.5 cm |
| Package 1 Length | 13.2 cm |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 22 |
| Package 2 Weight | 4.46 kg |
| Package 2 Height | 15.0 cm |
| Package 2 width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Warranty | 18 months |
|---|
