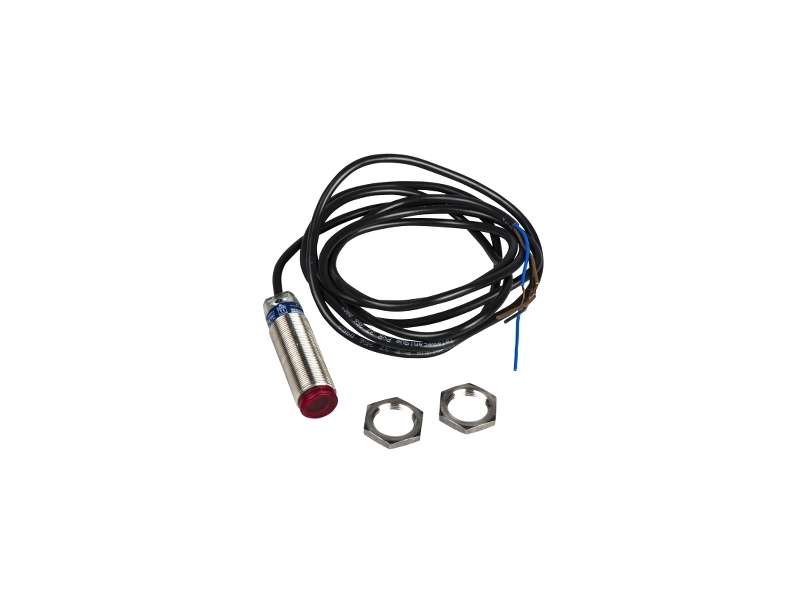

Schneider Electric Fotoelektrični senzor - XUBT - polarizovan - Sn 1.4m - 12..24VDC - kabl 2m;XUBTANSNL2

Photoelectric sensors XU, XUBT, polarised, Sn 1.4 m, 12...24 VDC, cable 2 m...

Brand: Schneider Electric
Product Code: XUBTANSNL2
Availability: Check availability

VAT-exclusive price: 20.661,00

VAT-inclusive price: 24.793,20

Qnt:

Description
Specification

Photoelectric sensors XU, XUBT, polarised, Sn 1.4 m, 12...24 VDC, cable 2 m

Main
range of product	Telemecanique Photoelectric sensors XU
series name	Application packaging
electronic sensor type	Photo-electric sensor
product specific application	Detection of transparent object
sensor name	XUBT
sensor design	Cylindrical M18
detection system	Reflex
material	Plastic
line of sight type	Axial
supply circuit type	DC
wiring technique	3-wire
discrete output type	NPN
discrete output function	1 NO or 1 NC programmable
electrical connection	Cable
cable length	2 m
emission	Coaxial polarised red reflex
[Sn] nominal sensing distance	0…1.4 m with reflector XUZ C50/C50HP

Complementary
kit composition	Sensor Reflector XUZC50HP
enclosure material	PBT
lens material	PMMA
beam angle	1.5 °
blind zone	0 mm
spot diameter	37 mm
type of output signal	Discrete
output type	Solid state
wire insulation material	PvR
status LED	Supply on: 1 LED (green) Stability: 1 LED (red) Output state: 1 LED (yellow)
[Us] rated supply voltage	12...24 V DC with reverse polarity protection
supply voltage limits	10…32 V DC
switching capacity in mA	100 mA (overload and short-circuit protection)
switching frequency	1000 Hz
maximum voltage drop	<1.5 V (closed state)
current consumption	45 mA no-load
maximum delay first up	200 ms
maximum delay response	500 ms
maximum delay recovery	500 ms
net weight	0.11 kg

Environment
product certifications	CSA UL CE
ambient air temperature for operation	0…55 °C
ambient air temperature for storage	-40…70 °C
vibration resistance	7 gn, amplitude = +/- 1 mm (f = 10…55 Hz) conforming to IEC 60068-2-6
shock resistance	30 gn (duration = 11 ms) conforming to IEC 60068-2-27
IP degree of protection	IP65 conforming to IEC 60529 (double insulation) IP67 conforming to IEC 60529 (double insulation)

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Weight	103.0 g
Package 1 Height	4.2 cm
Package 1 Width	9.7 cm
Package 1 Length	13.2 cm

Contractual warranty
Warranty	18 months
