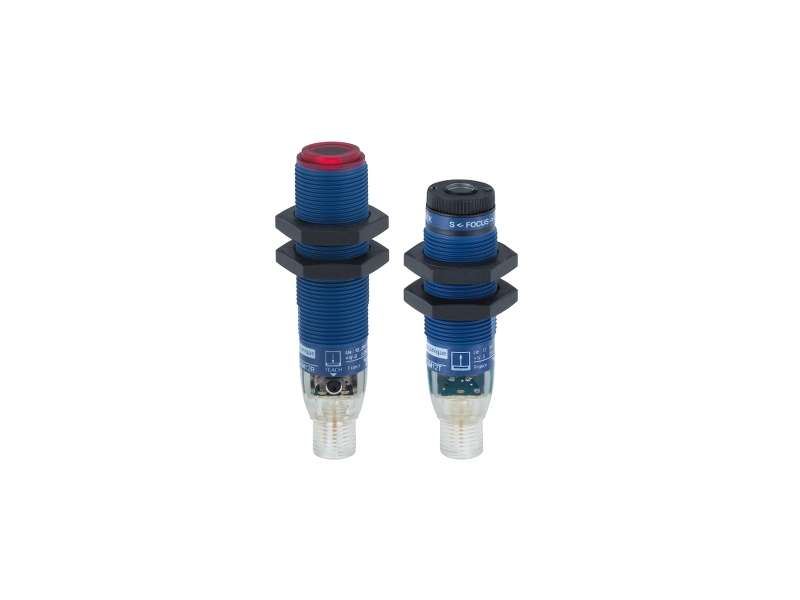

Schneider Electric Fotoelektrični senzor - XUB - thru beam - laser - Sn 100m - 12..24VDC - M12;XUBLAPCNM12
Photoelectric sensors XU, XUB, thru beam, laser, Sn 100 m, 12...24 VDC, M12...
VAT-exclusive price: 43.267,00 |
VAT-inclusive price: 51.920,40 |
Photoelectric sensors XU, XUB, thru beam, laser, Sn 100 m, 12...24 VDC, M12
| range of product | Telemecanique Photoelectric sensors XU |
|---|---|
| series name | Application material handling |
| electronic sensor type | Photo-electric sensor |
| sensor name | XUB |
| sensor design | Cylindrical M18 |
| detection system | Thru beam |
| material | Plastic |
| type of output signal | Discrete |
| supply circuit type | DC |
| wiring technique | 3-wire |
| discrete output type | PNP |
| discrete output function | 1 NO or 1 NC programmable |
| electrical connection | 1 male connector M12 |
| emission | Red laser class 1 670 nm conforming to IEC 825-1 |
| [Sn] nominal sensing distance | 100 m |
| enclosure material | PBT |
|---|---|
| lens material | PMMA |
| blind zone | 0 mm |
| output type | Solid state |
| status LED |
Supply on and teaching: 1 LED (green) Stability: 1 LED (red) Output state and alignment aid: 1 LED (yellow) |
| [Us] rated supply voltage | 12...24 V DC with reverse polarity protection |
| supply voltage limits | 10…30 V DC |
| switching capacity in mA | <= 100 mA (overload and short-circuit protection) |
| switching frequency | 1500 Hz |
| maximum voltage drop | <1.5 V (closed state) |
| current consumption | 25 mA no-load |
| maximum power consumption in W | 1 W |
| maximum delay first up | 80 ms |
| maximum delay response | 0.4 ms |
| maximum delay recovery | 0.4 ms |
| setting-up | With sensitivity adjustment |
| net weight | 0.078 kg |
| kit composition | Transmitter + receiver XUBLAKCNM12T + XUBLAPCNM12R |
| product certifications |
CE CSA UL |
|---|---|
| ambient air temperature for operation | -10…45 °C |
| ambient air temperature for storage | -40…70 °C |
| vibration resistance | 7 gn, amplitude = +/- 0.75 mm (f = 10…55 Hz) conforming to IEC 60068-2-6 |
| shock resistance | 30 gn (duration = 11 ms) conforming to IEC 60068-2-27 |
| IP degree of protection | IP67 conforming to IEC 60529 (double insulation) |
| Unit Type of Package 1 | PCE |
|---|---|
| Package 1 Length | 12.8 cm |
| Number of Units in Package 1 | 1 |
| Package 2 Width | 30.0 cm |
| Package 2 Height | 15.0 cm |
| Package 2 Weight | 2.509 kg |
| Package 1 Width | 7.0 cm |
| Package 1 Height | 3.4 cm |
| Package 1 Weight | 63.0 g |
| Number of Units in Package 2 | 35 |
| Unit Type of Package 2 | S02 |
| Package 2 Length | 40.0 cm |
| Warranty | 18 months |
|---|
