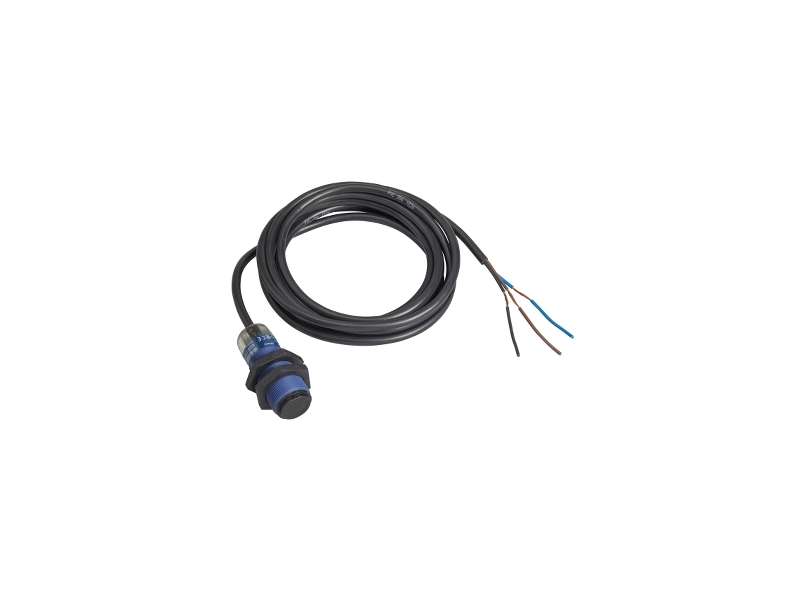

Schneider Electric Fotoelektrični senzor - XUB - predajnik - 12..24VDC - kabl 2m;XUB0AKSNL2T
Photoelectric sensors XU, XUB, emitter, 12...24 VDC, cable 2 m...
VAT-exclusive price: 6.317,00 |
VAT-inclusive price: 7.580,40 |
Photoelectric sensors XU, XUB, emitter, 12...24 VDC, cable 2 m
| range of product | Telemecanique Photoelectric sensors XU |
|---|---|
| series name | General purpose multimode |
| electronic sensor type | Photo-electric sensor transmitter |
| sensor name | XUB |
| sensor design | Cylindrical M18 |
| detection system | Thru beam |
| material | Plastic |
| line of sight type | Axial |
| type of output signal | Discrete |
| supply circuit type | DC |
| wiring technique | 3-wire |
| electrical connection | Cable |
| cable length | 2 m |
| product specific application | - |
| emission | Infrared thru beam |
| [Sn] nominal sensing distance | 20 m thru beam need a receiver |
| enclosure material | PBT |
|---|---|
| lens material | PMMA |
| maximum sensing distance | 30 m thru beam |
| output type | Solid state |
| add on input | Test by emission breaking |
| wire insulation material | PvR |
| status LED | 1 LED (green) for supply on |
| [Us] rated supply voltage | 12...24 V DC with reverse polarity protection |
| supply voltage limits | 10…36 V DC |
| switching capacity in mA | <= 100 mA (overload and short-circuit protection) |
| switching frequency | <= 250 Hz |
| maximum voltage drop | <1.5 V (closed state) |
| current consumption | 20 mA no-load |
| maximum delay first up | 200 ms |
| maximum delay response | 2 ms |
| maximum delay recovery | 2 ms |
| setting-up | Without sensitivity adjustment |
| diameter | 18 mm |
| length | 62 mm |
| net weight | 0.095 kg |
| product certifications |
CSA CE UL |
|---|---|
| ambient air temperature for operation | -25…55 °C |
| ambient air temperature for storage | -40…70 °C |
| vibration resistance | 7 gn, amplitude = +/- 1.5 mm (f = 10…55 Hz) conforming to IEC 60068-2-6 |
| shock resistance | 30 gn (duration = 11 ms) conforming to IEC 60068-2-27 |
| IP degree of protection |
IP65 double insulation conforming to IEC 60529 IP67 double insulation conforming to IEC 60529 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 92 g |
| Package 1 Height | 4.2 cm |
| Package 1 width | 9.5 cm |
| Package 1 Length | 13.1 cm |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 22 |
| Package 2 Weight | 2.62 kg |
| Package 2 Height | 15 cm |
| Package 2 width | 30 cm |
| Package 2 Length | 40 cm |
| Warranty | 18 months |
|---|
