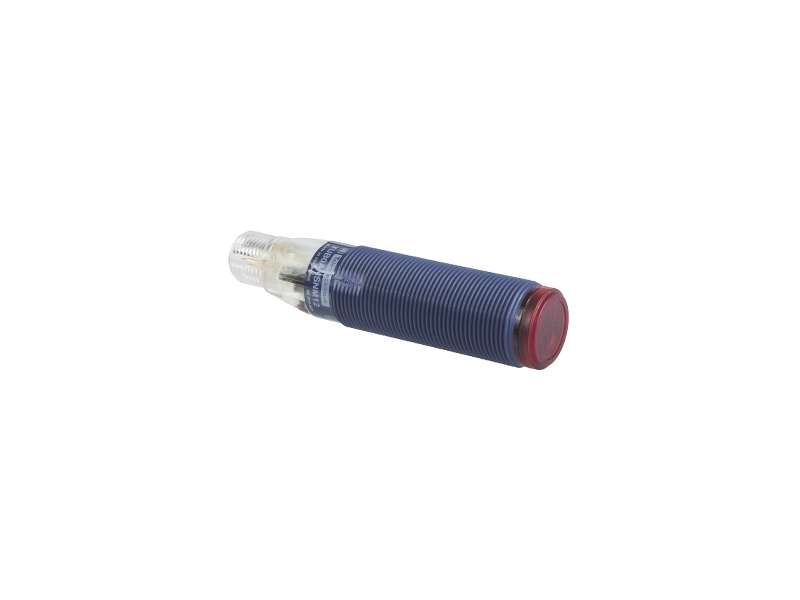

Schneider Electric Fotoelektrični senzor - XUB - multi - Sn 0..20m - 12..24VDC - M12;XUB0APSNM12
Photoelectric sensors XU, XUB, multi, Sn 0...20 m, 12...24 VDC, M12...
VAT-exclusive price: 11.196,00 |
VAT-inclusive price: 13.435,20 |
Photoelectric sensors XU, XUB, multi, Sn 0...20 m, 12...24 VDC, M12
| range of product | Telemecanique Photoelectric sensors XU |
|---|---|
| series name | General purpose multimode |
| electronic sensor type | Photo-electric sensor |
| sensor name | XUB |
| sensor design | Cylindrical M18 |
| detection system | Multimode |
| material | Plastic |
| line of sight type | Axial |
| type of output signal | Discrete |
| supply circuit type | DC |
| wiring technique | 3-wire |
| discrete output type | PNP |
| discrete output function | 1 NO or 1 NC programmable |
| electrical connection | 1 male connector M12, 4 pins |
| product specific application | - |
| emission |
Infrared diffuse Infrared diffuse with background suppression Infrared thru beam Red polarised reflex |
| [Sn] nominal sensing distance |
3 m polarised reflex need reflector XUZC50 20 m thru beam need a transmitter XUB0AKSNM12T 0.12 m diffuse with background suppression 0.3 m diffuse |
| enclosure material | PBT |
|---|---|
| lens material | PMMA |
| maximum sensing distance |
0.12 m diffuse with background suppression 0.4 m diffuse 30 m thru beam 4.5 m polarised reflex |
| output type | Solid state |
| add on output | Without |
| status LED |
1 LED (green) for supply 1 LED (red) for instability 1 LED (yellow) for output state |
| [Us] rated supply voltage | 12...24 V DC with reverse polarity protection |
| supply voltage limits | 10…36 V DC |
| switching capacity in mA | <= 100 mA (overload and short-circuit protection) |
| switching frequency | <= 250 Hz |
| maximum voltage drop | <1.5 V (closed state) |
| current consumption | 35 mA no-load |
| maximum delay first up | 200 ms |
| maximum delay response | 2 ms |
| maximum delay recovery | 2 ms |
| setting-up | Self-teaching |
| diameter | 18 mm |
| length | 78 mm |
| net weight | 0.045 kg |
| product certifications |
CSA UL CE |
|---|---|
| ambient air temperature for operation | -25…55 °C |
| ambient air temperature for storage | -40…70 °C |
| vibration resistance | 7 gn, amplitude = +/- 1.5 mm (f = 10…55 Hz) conforming to IEC 60068-2-6 |
| shock resistance | 30 gn (duration = 11 ms) conforming to IEC 60068-2-27 |
| IP degree of protection |
IP65 double insulation conforming to IEC 60529 IP67 double insulation conforming to IEC 60529 IP69K double insulation conforming to DIN 40050 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 42.9 g |
| Package 1 Height | 4.2 cm |
| Package 1 width | 6.7 cm |
| Package 1 Length | 9.7 cm |
| Unit Type of Package 2 | S01 |
| Number of Units in Package 2 | 22 |
| Package 2 Weight | 1.305 kg |
| Package 2 Height | 15.0 cm |
| Package 2 width | 15.0 cm |
| Package 2 Length | 40.0 cm |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 704 |
| Package 3 Weight | 48.116 kg |
| Package 3 Height | 75.0 cm |
| Package 3 width | 80.0 cm |
| Package 3 Length | 60.0 cm |
| Warranty | 18 months |
|---|
