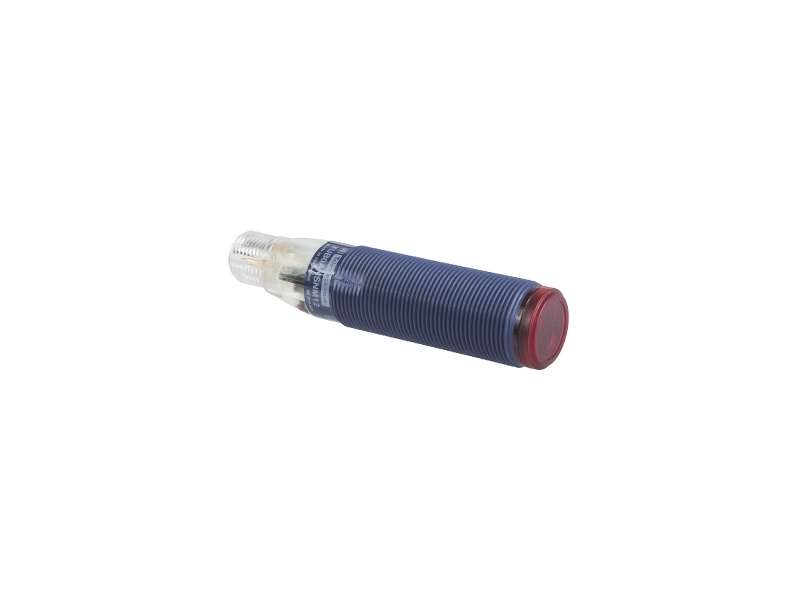

Photoelectric sensors XU, XUB, diffuse, Sn 0.6 m, 12...24 VDC, M12

Main

range of product	Telemecanique Photoelectric sensors XU
series name	General purpose single mode
electronic sensor type	Photo-electric sensor
sensor name	XUB
sensor design	Cylindrical M18
detection system	Diffuse
material	Plastic
line of sight type	Axial
type of output signal	Discrete
supply circuit type	DC
wiring technique	3-wire
discrete output type	PNP
discrete output function	1 NO
electrical connection	1 male connector M12, 4 pins
product specific application	-
emission	Infrared diffuse
[Sn] nominal sensing distance	0.6 m diffuse

Complementary

enclosure material	PBT
lens material	PMMA
maximum sensing distance	0.8 m diffuse
output type	Solid state
add on output	Without
wire insulation material	PvR
status LED	1 LED (yellow) for output state
[Us] rated supply voltage	12...24 V DC with reverse polarity protection
supply voltage limits	10…36 V DC
switching capacity in mA	<= 100 mA (overload and short-circuit protection)
switching frequency	<= 500 Hz
maximum voltage drop	<1.5 V (closed state)
current consumption	35 mA no-load
maximum delay first up	15 ms
maximum delay response	1 ms
maximum delay recovery	1 ms
setting-up	Sensitivity adjustment
diameter	18 mm
length	78 mm
net weight	0.045 kg

Environment

product certifications	UL CE CSA
ambient air temperature for operation	-25…55 °C
ambient air temperature for storage	-40…70 °C
vibration resistance	7 gn, amplitude = +/- 1.5 mm (f = 10…55 Hz) conforming to IEC 60068-2-6
shock resistance	30 gn (duration = 11 ms) conforming to IEC 60068-2-27
IP degree of protection	IP67 double insulation conforming to IEC 60529 IP65 double insulation conforming to IEC 60529 IP69K double insulation conforming to DIN 40050

Packing Units

Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Weight	36 g
Package 1 Height	4.2 cm
Package 1 width	6.7 cm
Package 1 Length	9.6 cm
Unit Type of Package 2	S01
Number of Units in Package 2	22
Package 2 Weight	1.112 kg
Package 2 Height	15 cm
Package 2 width	15 cm
Package 2 Length	40 cm

Contractual warranty

Warranty	18 months
