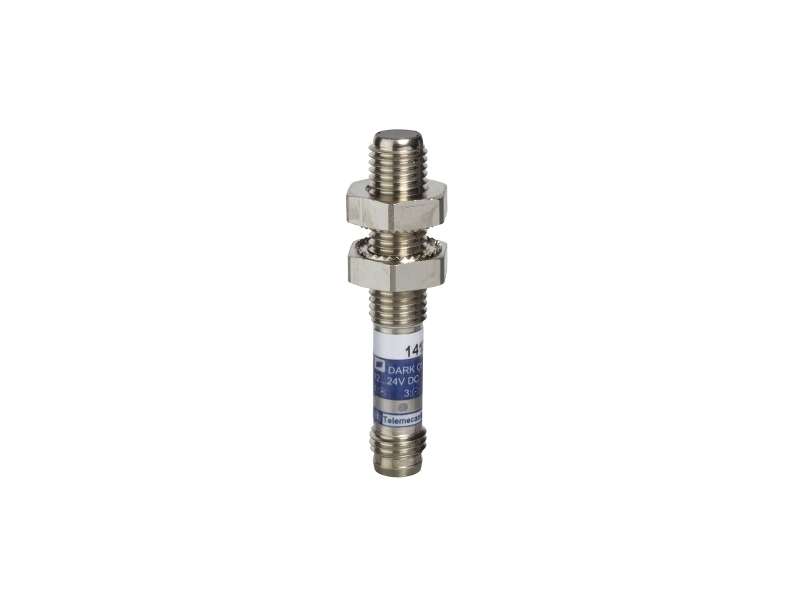

Schneider Electric Fotoelektrični senzor - XUA - difuzni - Sn 0.05m - 12..24VDC - M8;XUAH0515S
Photoelectric sensors XU, XUA, diffuse, Sn 0.05 m, 12...24 VDC, M8...
VAT-exclusive price: 17.797,00 |
VAT-inclusive price: 21.356,40 |
Photoelectric sensors XU, XUA, diffuse, Sn 0.05 m, 12...24 VDC, M8
| range of product | Telemecanique Photoelectric sensors XU |
|---|---|
| series name | Application assembly |
| electronic sensor type | Photo-electric sensor |
| sensor name | XUA |
| sensor design | Cylindrical M8 |
| detection system | Diffuse |
| material | Metal |
| line of sight type | Axial |
| type of output signal | Discrete |
| supply circuit type | DC |
| wiring technique | 3-wire |
| discrete output type | PNP |
| discrete output function | 1 NO |
| electrical connection | 1 male connector M8, 3 pins |
| product specific application | - |
| emission | Infrared diffuse |
| [Sn] nominal sensing distance | 0.05 m diffuse |
| enclosure material | Nickel plated brass |
|---|---|
| lens material | PMMA |
| maximum sensing distance | 0.06 m |
| output type | Solid state |
| add on output | Without |
| cable composition | 3 x 0.14 mm² |
| wire insulation material | PvR |
| cable outer diameter | 3.5 mm |
| status LED | 1 LED (yellow) for output state |
| [Us] rated supply voltage | 12...24 V DC with reverse polarity protection |
| supply voltage limits | 10…30 V DC |
| switching capacity in mA | <= 100 mA (overload and short-circuit protection) |
| switching frequency | <= 1000 Hz |
| maximum voltage drop | <1 V (closed state) |
| current consumption | <= 25 mA no-load |
| maximum delay first up | 20 ms |
| maximum delay response | 0.5 ms |
| maximum delay recovery | 0.5 ms |
| setting-up | Without sensitivity adjustment |
| diameter | 8 mm |
| length | 48 mm |
| net weight | 0.5 kg |
| product certifications |
CE cULus |
|---|---|
| ambient air temperature for operation | -25…55 °C |
| ambient air temperature for storage | -30…70 °C |
| vibration resistance | 7 gn, amplitude = +/- 1 mm (f = 10…55 Hz) conforming to IEC 60068-2-6 |
| shock resistance | 30 gn (duration = 11 ms) conforming to IEC 60068-2-27 |
| IP degree of protection |
IP67 conforming to IEC 60529 IP65 conforming to IEC 60529 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 28.0 g |
| Package 1 Height | 4.4 cm |
| Package 1 width | 6.8 cm |
| Package 1 Length | 9.6 cm |
| Unit Type of Package 2 | S01 |
| Number of Units in Package 2 | 24 |
| Package 2 Weight | 872.0 g |
| Package 2 Height | 15.0 cm |
| Package 2 width | 15.0 cm |
| Package 2 Length | 40.0 cm |
| Warranty | 18 months |
|---|
