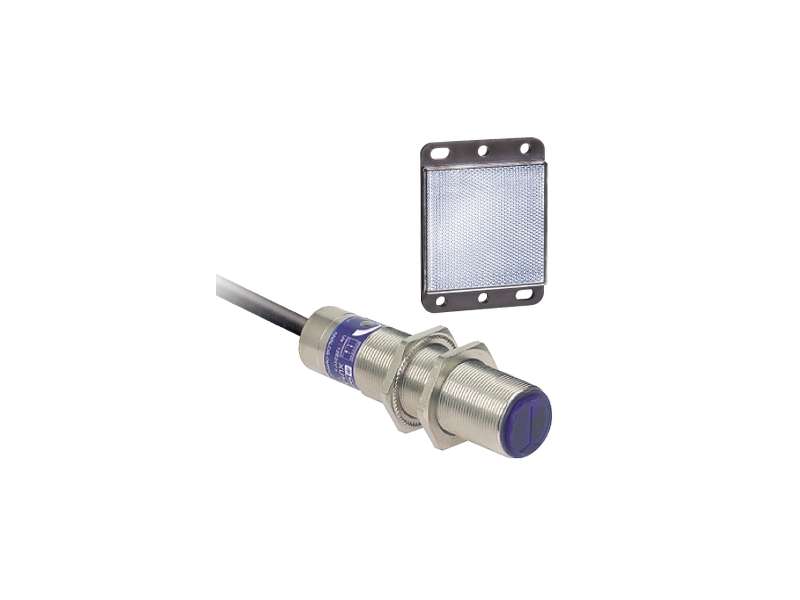

Schneider Electric Fotoelektrični senzor - XU9 - polarizovan - Sn 2m - 24..240VAC/DC - kabl 2m;XU9M18MB230
Photoelectric sensors XU, XU9, polarised, Sn 2 m, 24...240VAC/DC, cable 2 m...
VAT-exclusive price: 15.875,00 |
VAT-inclusive price: 19.050,00 |
Photoelectric sensors XU, XU9, polarised, Sn 2 m, 24...240VAC/DC, cable 2 m
| range of product | Telemecanique Photoelectric sensors XU |
|---|---|
| series name | General purpose single mode |
| electronic sensor type | Photo-electric sensor |
| sensor name | XU9 |
| sensor design | Cylindrical M18 |
| detection system | Polarised reflex |
| material | Metal |
| line of sight type | Axial |
| type of output signal | Discrete |
| supply circuit type | AC/DC |
| wiring technique | 2-wire |
| discrete output function | 1 NC |
| electrical connection | Cable |
| cable length | 2 m |
| product specific application | - |
| emission | Red polarised reflex |
| [Sn] nominal sensing distance | 2 m polarised reflex need reflector XUZC50 |
| enclosure material | Nickel plated brass |
|---|---|
| lens material | PMMA |
| maximum sensing distance | 3 m |
| output type | Solid state |
| add on output | Without |
| wire insulation material | PvR |
| status LED |
1 LED (yellow) for output state 1 LED (red) for instability |
| [Us] rated supply voltage | 24...240 V AC/DC |
| supply voltage limits | 20…264 V AC/DC |
| maximum residual current | 1.5 mA open state |
| switching capacity in mA | 10...200 mA (to be used with 0.4 A quick-blow fuse in series with the load) |
| switching frequency | <= 25 Hz |
| maximum voltage drop | <6 V (closed state) |
| maximum delay first up | 300 ms |
| maximum delay response | 20 ms |
| maximum delay recovery | 20 ms |
| setting-up | Sensitivity adjustment |
| diameter | 18 mm |
| length | 95 mm |
| net weight | 0.095 kg |
| kit composition |
Reflector XUZC50 Sensor |
| product certifications |
UL CSA CE |
|---|---|
| ambient air temperature for operation | -25…55 °C |
| ambient air temperature for storage | -40…70 °C |
| vibration resistance | 7 gn, amplitude = +/- 1.5 mm (f = 10…55 Hz) conforming to IEC 60068-2-6 |
| shock resistance | 30 gn (duration = 11 ms) conforming to IEC 60068-2-27 |
| IP degree of protection | IP67 conforming to IEC 60529 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 152.0 g |
| Package 1 Height | 4.1 cm |
| Package 1 width | 9.4 cm |
| Package 1 Length | 13.0 cm |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 22 |
| Package 2 Weight | 3.654 kg |
| Package 2 Height | 15.0 cm |
| Package 2 width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Warranty | 18 months |
|---|
