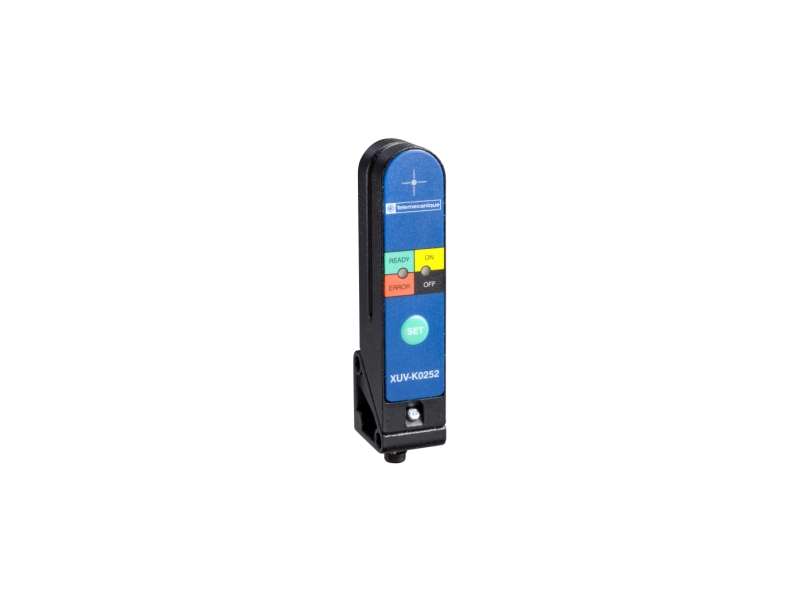

Schneider Electric Fotoelektrični senzor - thru-beam - Sn 2 mm - NO ili NC - M8 konektor;XUVK0252S
Photoelectric sensors XU, thru beam, Sn 2 mm, NO or NC, M8 connector...
VAT-exclusive price: 36.851,00 |
VAT-inclusive price: 44.221,20 |
Photoelectric sensors XU, thru beam, Sn 2 mm, NO or NC, M8 connector
| range of product | Telemecanique Photoelectric sensors XU |
|---|---|
| series name | Application packaging |
| electronic sensor type | Photo-electric sensor |
| sensor name | XUV |
| sensor design | Fork |
| detection system | Thru beam |
| emission | Infrared |
| type of setting | Without |
| passage width | 2 mm |
| passage depth | 50 mm |
| material | Metal |
| supply circuit type | DC |
| wiring technique | 3-wire |
| discrete output type | PNP and NPN |
| discrete output function | 2 NO/NC programmable |
| electrical connection | 1 male connector M8 adjustable through 90°, 4 pins |
| product specific application | Detection of labels |
| [Sn] nominal sensing distance | 2 mm |
| setting-up | Teach mode |
|---|---|
| enclosure material | Zinc alloy |
| lens material | Glass |
| type of output signal | Discrete |
| output type | Solid state |
| status LED |
Sensor ready: 1 LED (green) Read error: 1 LED (red) Output state: 1 LED (yellow) |
| [Us] rated supply voltage | 12...24 V DC with reverse polarity protection |
| supply voltage limits | 10…30 V DC |
| switching capacity in mA | <= 100 mA (overload and short-circuit protection) |
| switching frequency | <= 25 kHz |
| maximum voltage drop | <1.5 V (closed state) |
| output clamping resistor | 10 kOhm |
| current consumption | <= 50 mA no-load |
| maximum delay first up | 30 ms |
| maximum delay response | 0.1 ms |
| maximum delay recovery | 0.1 ms |
| depth | 90 mm |
| height | 20 mm |
| width | 20 mm |
| net weight | 0.085 kg |
| product certifications | CE |
|---|---|
| ambient air temperature for operation | 0…55 °C |
| ambient air temperature for storage | -20…70 °C |
| vibration resistance | 7 gn, amplitude = +/- 1.5 mm (f = 10…55 Hz) conforming to IEC 60068-2-6 |
| shock resistance | 30 gn (duration = 11 ms) conforming to IEC 60068-2-27 |
| IP degree of protection | IP65 conforming to IEC 60529 |
| Unit Type of Package 1 | PCE |
|---|---|
| Package 1 Length | 3.6 cm |
| Number of Units in Package 1 | 1 |
| Package 2 Width | 30.0 cm |
| Package 2 Height | 15.0 cm |
| Package 2 Weight | 6.344 kg |
| Package 1 Width | 8.0 cm |
| Package 1 Height | 8.2 cm |
| Package 1 Weight | 130.0 g |
| Number of Units in Package 2 | 45 |
| Unit Type of Package 2 | S02 |
| Package 2 Length | 40.0 cm |
| Warranty | 18 months |
|---|
