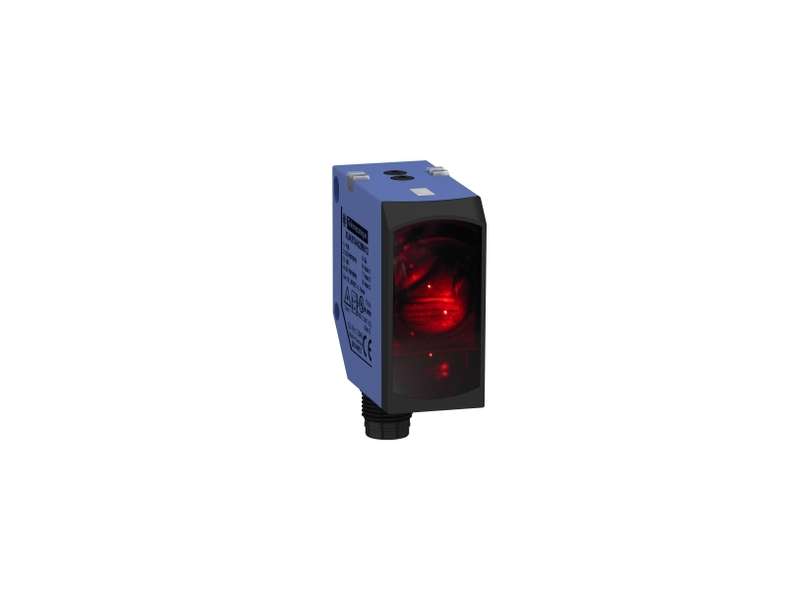

Schneider Electric Fotoelektrični laserski senzor-XUK-refleksni-Sn 70m-2O,1O aut., 3I -apl. dizanja;XUK9TAH2MM12
Photoelectric sensors XU, photo electric laser sensor, XUK, reflex, Sn 70 m, 2Q 1Qa 3IN, hoisting app...
VAT-exclusive price: 76.669,00 |
VAT-inclusive price: 92.002,80 |
Photoelectric sensors XU, photo electric laser sensor, XUK, reflex, Sn 70 m, 2Q 1Qa 3IN, hoisting app
| range of product | Telemecanique Photoelectric sensors XU |
|---|---|
| series name | Application hoisting |
| electronic sensor type | Photo-electric sensor |
| sensor name | XUK |
| sensor design | Compact 50 x 50 |
| detection system | Polarised reflex |
| material | Plastic |
| type of output signal | Analogue + discrete |
| supply circuit type | DC |
| wiring technique | 8-wire |
| discrete output type | PNP or NPN |
| discrete output function | 1 NO or 1 NC programmable |
| analogue output range | 4...20 mA |
| electrical connection | 1 male connector M12, 8 pins |
| product specific application | Distance measurement on reflector |
| emission | Red laser polarised reflex class 1 conforming to IEC 60825-1 |
| [Sn] nominal sensing distance | 70 m polarised reflex need reflector XUZC250 |
| enclosure material | ABS/PC |
|---|---|
| lens material | PMMA |
| maximum sensing distance | 70 m polarised reflex need reflector XUZC250 |
| output type |
Solid state Analog |
| output function governance | Light or dark programmable |
| add on output | With alarm output |
| add on input | Test by emission breaking |
| status LED |
1 LED (yellow) for output state 1 LED (green/yellow) for supply on/output state |
| [Us] rated supply voltage | 12...24 V DC with reverse polarity protection |
| supply voltage limits | 10…30 V DC |
| switching capacity in mA | <= 100 mA (overload and short-circuit protection) |
| switching frequency | <= 1.5 kHz |
| maximum voltage drop | <2 V (closed state) |
| current consumption | <= 35 mA no-load |
| maximum delay first up | 300 ms |
| maximum delay response | 10 ms |
| maximum delay recovery | 10 ms |
| setting-up | Using teach button or remote teaching |
| depth | 50 mm |
| height | 50 mm |
| width | 23 mm |
| net weight | 0.035 kg |
| product certifications |
CE Ecolab cULus UKCA |
|---|---|
| ambient air temperature for operation |
-20…50 °C, UL certified -30…50 °C |
| ambient air temperature for storage | -30…60 °C |
| vibration resistance | 7 gn (f = 10…55 Hz) conforming to IEC 60068-2-6 |
| shock resistance | 10 gn (duration = 11 ms) conforming to IEC 60068-2-27 |
| IP degree of protection |
IP67 conforming to IEC 60529 IP69K conforming to DIN 40050 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 58.0 g |
| Package 1 Height | 3.0 cm |
| Package 1 Width | 6.0 cm |
| Package 1 Length | 9.2 cm |
| Unit Type of Package 2 | S01 |
| Number of Units in Package 2 | 28 |
| Package 2 Weight | 1.641 kg |
| Package 2 Height | 15.0 cm |
| Package 2 Width | 15.0 cm |
| Package 2 Length | 40.0 cm |
| Warranty | 18 months |
|---|
