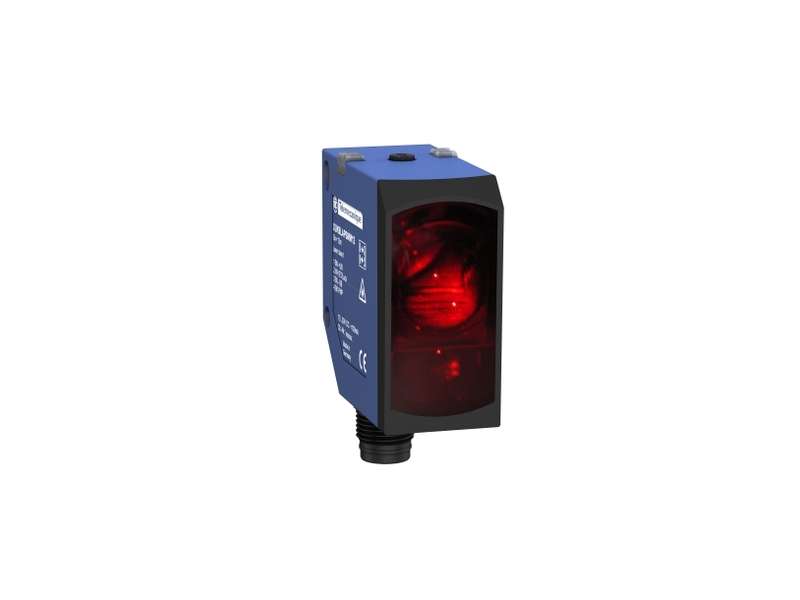

Schneider Electric Fotoelektrični laserski senzor - XUK-polar. refleksni - Sn 14m - 10..30VDC - M12;XUK9LAPSMM12
Photoelectric sensors XU, photo electric laser sensor, XUK, polarised reflex, Sn 14 m, 10...30 VDC, M12...
VAT-exclusive price: 29.087,00 |
VAT-inclusive price: 34.904,40 |
Photoelectric sensors XU, photo electric laser sensor, XUK, polarised reflex, Sn 14 m, 10...30 VDC, M12
| range of product | Telemecanique Photoelectric sensors XU |
|---|---|
| series name |
Application assembly Application material handling |
| electronic sensor type | Photo-electric sensor |
| sensor name | XUK |
| sensor design | Compact 50 x 50 |
| detection system | Polarised reflex |
| material | Plastic |
| type of output signal | Discrete |
| supply circuit type | DC |
| wiring technique | 4-wire |
| discrete output type | PNP |
| discrete output function | 1 NO or 1 NC programmable |
| electrical connection | 1 male connector M12, 4 pins |
| product specific application | - |
| emission | Red laser polarised reflex class 1 |
| [Sn] nominal sensing distance | 12 m polarised reflex need reflector XUZC50HP |
| enclosure material | ABS/PC |
|---|---|
| lens material | PMMA |
| maximum sensing distance | 14 m polarised reflex need reflector XUZC50HP |
| output type | Solid state |
| status LED |
1 LED (yellow) for output state 1 LED (green/yellow) for supply on/output state |
| [Us] rated supply voltage | 24 V DC with reverse polarity protection |
| supply voltage limits | 10…30 V DC |
| switching capacity in mA | <= 100 mA (overload and short-circuit protection) |
| switching frequency | <= 2000 Hz |
| maximum voltage drop | <2 V |
| current consumption | <= 60 mA no-load |
| maximum delay first up | 300 ms |
| maximum delay response | 2 ms |
| maximum delay recovery | 2 ms |
| setting-up | Using teach button or remote teaching |
| depth | 50 mm |
| height | 50 mm |
| width | 23 mm |
| net weight | 0.035 kg |
| product certifications |
Ecolab CE cULus |
|---|---|
| ambient air temperature for operation |
-20…60 °C -20…50 °C |
| ambient air temperature for storage | -20…80 °C |
| vibration resistance | 7 gn, amplitude = +/- 1.5 mm (f = 10…55 Hz) conforming to IEC 60068-2-6 |
| shock resistance | 30 gn (duration = 11 ms) conforming to IEC 60068-2-27 |
| IP degree of protection |
IP67 conforming to IEC 60529 IP69K conforming to DIN 40050 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 48.0 g |
| Package 1 Height | 2.8 cm |
| Package 1 Width | 9.0 cm |
| Package 1 Length | 6.0 cm |
| Unit Type of Package 2 | S01 |
| Number of Units in Package 2 | 28 |
| Package 2 Weight | 1.729 kg |
| Package 2 Height | 15.0 cm |
| Package 2 Width | 15.0 cm |
| Package 2 Length | 40.0 cm |
| Warranty | 18 months |
|---|
