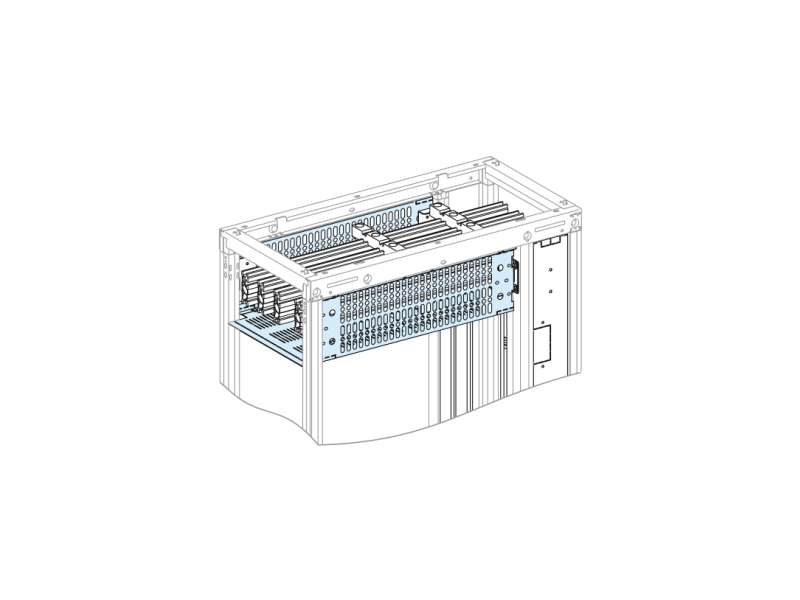

Schneider Electric Form 2 cover for horizontal busbars LGYE 2500A or BS 3200A, W650 mm, D600 mm; LVS04986
Form 2 cover for horizontal busbars LGYE 2500A or BS 3200A, W650 mm, D600 mm...
VAT-exclusive price: 11.370,00 |
VAT-inclusive price: 13.644,00 |
Form 2 cover for horizontal busbars LGYE 2500A or BS 3200A, W650 mm, D600 mm
| Range | PrismaSeT |
|---|---|
| range of product | PrismaSeT P |
| Product or component type | Cover |
| accessory / separate part category | Insulation accessory |
| Range compatibility | PrismaSeT (PrismaSeT P) framework |
| Cubicle partitioning form | Form 2 |
| installation description | Cubicle - width 650 mm, depth 600 mm |
|---|---|
| Installed device | Horizontal busbar |
| Quantity per set | Set of 1 |
| Height | 150 mm |
| Width | 650 mm |
| Net weight | 3.02 kg |
| Surface finish |
Matt Textured |
| Protective treatment | Electrophoresis treatment and hot-polymerised polyester epoxy powder |
| Colour | White (RAL 9003) |
| Unit Type of Package 1 | Db |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.7 cm |
| Package 1 Width | 35.0 cm |
| Package 1 Length | 57.5 cm |
| Package 1 Weight | 2.989 kg |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 4 |
| Package 2 Height | 30.0 cm |
| Package 2 Width | 40.0 cm |
| Package 2 Length | 60.0 cm |
| Package 2 Weight | 12.575 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 48 |
| Package 3 Height | 102.0 cm |
| Package 3 Width | 80.0 cm |
| Package 3 Length | 120.0 cm |
| Package 3 Weight | 164.5 kg |
