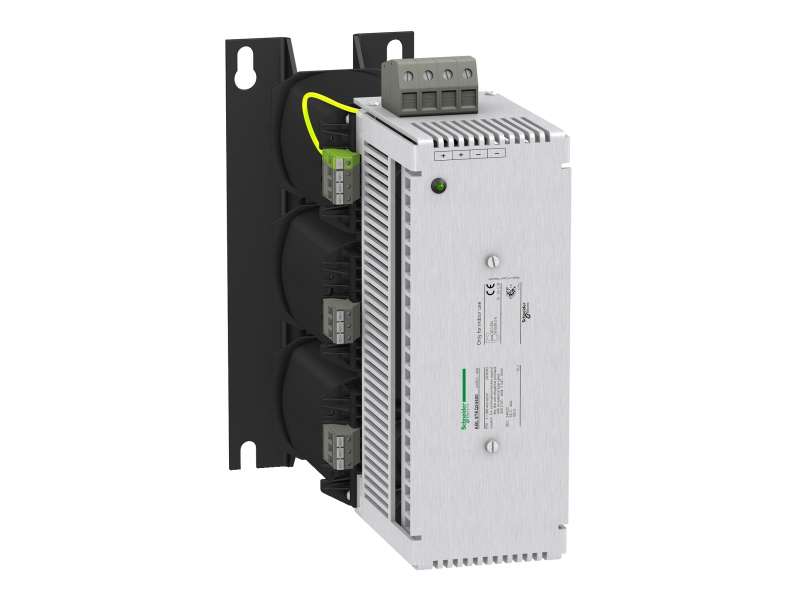

Schneider Electric Filtrirano napajanje - trofazno - 400 V AC - 24 V - 40 A;ABL8TEQ24400
Rectified and filtered power supply - 3-phase - 400 V AC - 24 V - 40 A...
VAT-exclusive price: 126.161,00 |
VAT-inclusive price: 151.393,20 |
Rectified and filtered power supply - 3-phase - 400 V AC - 24 V - 40 A
| range of product |
Phaseo Rectified
|
|
|---|---|---|
| product or component type |
Power supply
|
|
| power supply type |
Rectified and filtered
|
|
| rated power in W |
960 W
|
|
| Nominal input voltage |
400 V AC three phase, terminal(s): L1, L2, L3
|
|
| output voltage |
24 V DC
|
|
| power supply output current |
40 A
|
|
| anti-harmonic filter |
Low frequency harmonic currents
|
|
| product certifications |
KC
CULus UL 508 EAC |
| network frequency limits |
47…63 Hz
|
|
|---|---|---|
| input voltage limits |
360...440 V
|
|
| Power Factor |
0.857 at 400 V
|
|
| efficiency |
78 %
|
|
| power dissipation in W |
211 W
|
|
| output coupling |
Parallel
Series |
|
| output protection type |
Against overvoltage, protection technology: 2 J peak limiter
Against overload and short-circuits, protection technology: external fuse, 50 A |
|
| Hold-up time |
5 ms
|
|
| status LED |
1 LED (green)output voltage
|
|
| connections - terminals |
For input ground connection: screw type terminals, connection capacity: 1 x 2.5...1 x 4 mm² AWG 14...AWG 11
For input connection: screw type terminals, connection capacity: 9 x 2.5...9 x 4 mm² AWG 14...AWG 11 For output connection: screw type terminals, connection capacity: 4 x 16 mm² AWG 6 |
|
| depth |
140 mm
|
|
| height |
310 mm
|
|
| width |
310 mm
|
|
| net weight |
17.5 kg
|
|
| compatibility code |
ABL8T
|
| IP degree of protection |
IP20 conforming to EN/IEC 60529
|
|
|---|---|---|
| ambient air temperature for operation |
-20…55 °C
|
|
| ambient air temperature for storage |
-40…80 °C
|
|
| relative humidity |
0…95 % without condensation or dripping water
|
|
| operating altitude |
3000 m
|
|
| Safety class |
Class I conforming to VDE 0106-1
|
|
| dielectric strength |
2000 V between input and ground
4600 V between input and output 500 V between output and ground |
|
| Other environmental characteristic |
EMC conforming to IEC 62041
Safety conforming to EN/IEC 61558-2-6 Safety conforming to UL 508 Safety conforming to UL 60950-1 EMC conforming to EN/IEC 61000-3-2 |
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
20.428 kg
|
|
| Package 1 Height |
25 cm
|
|
| Package 1 width |
40.5 cm
|
|
| Package 1 Length |
42.5 cm
|
|
| Unit Type of Package 2 |
P06
|
|
| Number of Units in Package 2 |
4
|
|
| Package 2 Weight |
90.212 kg
|
|
| Package 2 Height |
80 cm
|
|
| Package 2 width |
80 cm
|
-
Phaseo ABL7 ABL8 ABL8TEQ24400
