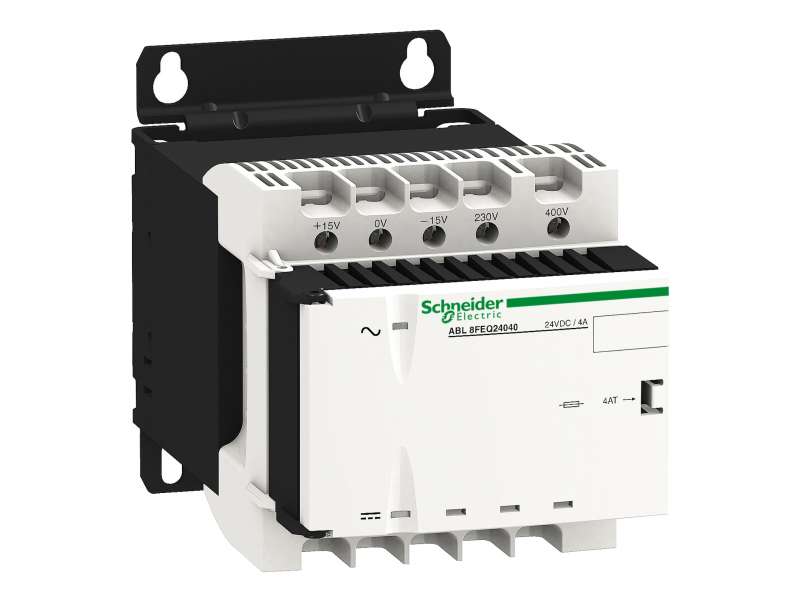

Schneider Electric Filtrirano napajanje - monofazno ili dvofazno - 400 V AC - 24 V - 4 A ; ABL8FEQ24040
rectified and filtered power supply - 1 or 2-phase - 400 V AC - 24 V - 4 A...
VAT-exclusive price: 26.194,00 |
VAT-inclusive price: 31.432,80 |
rectified and filtered power supply - 1 or 2-phase - 400 V AC - 24 V - 4 A
| range of product |
Phaseo Rectified
|
|
|---|---|---|
| product or component type |
Power supply
|
|
| power supply type |
Rectified and filtered
|
|
| rated power in W |
96 W
|
|
| Nominal input voltage |
230 V AC single phase, terminal(s): N-L1
400 V AC phase to phase, terminal(s): L1-L2 |
|
| output voltage |
24 V DC
|
|
| power supply output current |
4 A
|
|
| anti-harmonic filter |
Low frequency harmonic currents
|
|
| product certifications |
CULus
KC UL 508 EAC |
| network frequency limits |
47…63 Hz
|
|
|---|---|---|
| input voltage limits |
360...440 V
207...253 V |
|
| Power Factor |
0.689 at 230 V
0.867 at 400 V |
|
| efficiency |
75 %
|
|
| power dissipation in W |
24 W
|
|
| output coupling |
Series
Parallel |
|
| output protection type |
Against overload and short-circuits, protection technology: internal fuse, 4 A, 5 x 20 mm, T curve
Against overvoltage, protection technology: 2 J peak limiter |
|
| Hold-up time |
14 ms
|
|
| status LED |
1 LED (green)output voltage:
1 LED (orange)input voltage: |
|
| residual ripple |
<= 1200 MV
|
|
| connections - terminals |
For input connection: screw type terminals, connection capacity: 5 x 2.5...5 x 4 mm² AWG 14...AWG 11
For input ground connection: screw type terminals, connection capacity: 1 x 2.5...1 x 4 mm² AWG 14...AWG 11 For output connection: screw type terminals, connection capacity: 4 x 2.5...4 x 4 mm² AWG 14...AWG 11 |
|
| depth |
165 mm
|
|
| height |
108 mm
|
|
| width |
87 mm
|
|
| net weight |
2.9 kg
|
|
| compatibility code |
ABL8F
|
| IP degree of protection |
IP20 conforming to EN/IEC 60529
|
|
|---|---|---|
| ambient air temperature for operation |
-20…60 °C
|
|
| ambient air temperature for storage |
-40…80 °C
|
|
| relative humidity |
0…95 % without condensation or dripping water
|
|
| operating altitude |
3000 m
|
|
| vibration resistance |
0.05 mm (f= 47…57 Hz) conforming to IEC 60068-1
0.7 gn (f= 13.9…47 Hz) conforming to IEC 60068-1 1 gn (f= 57…150 Hz) conforming to IEC 60068-1 1 mm (f= 3…13.9 Hz) conforming to IEC 60068-1 |
|
| Safety class |
Class I conforming to VDE 0106-1
|
|
| dielectric strength |
2000 V between input and ground
4600 V between input and output 500 V between output and ground |
|
| Other environmental characteristic |
EMC conforming to IEC 62041
Safety conforming to EN/IEC 61558-2-6 Safety conforming to UL 508 Safety conforming to UL 60950-1 EMC conforming to EN/IEC 61000-3-2 |
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Unit Type of Package 2 |
P06
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| REACh Regulation | ||
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation | ||
| Environmental Disclosure | ||
| Circularity Profile | ||
| PVC free |
Yes
|
| Warranty |
18 months
|
|---|
Documents
-
Power supplies for industrial use rail mounting ABL8FEQ24040
