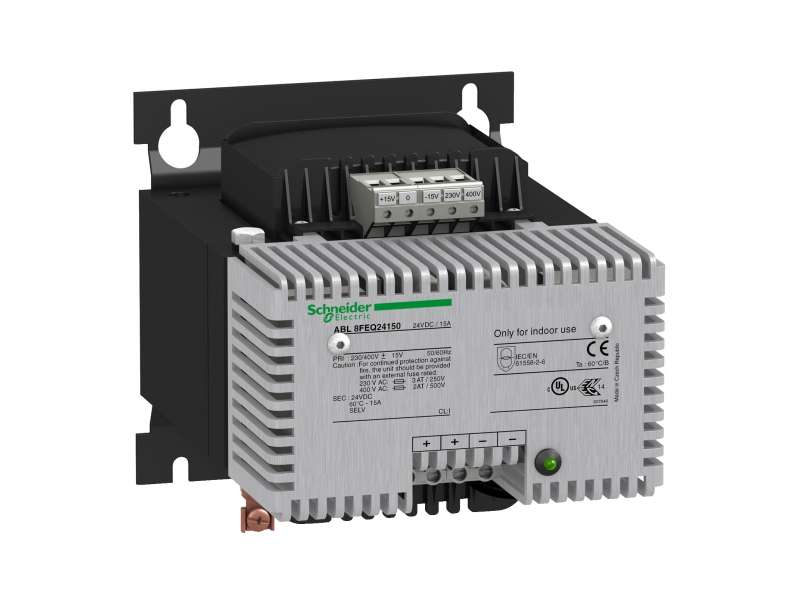

Schneider Electric Filtrirano napajanje - monofazno ili dvofazno - 400 V AC - 24 V - 15 A;ABL8FEQ24150
Rectified and filtered power supply - 1 or 2-phase - 400 V AC - 24 V - 15 A...
VAT-exclusive price: 36.231,00 |
VAT-inclusive price: 43.477,20 |
Rectified and filtered power supply - 1 or 2-phase - 400 V AC - 24 V - 15 A
| range of product |
Phaseo Rectified
|
|
|---|---|---|
| product or component type |
Power supply
|
|
| power supply type |
Rectified and filtered
|
|
| rated power in W |
360 W
|
|
| Nominal input voltage |
230 V AC single phase, terminal(s): N-L1
400 V AC phase to phase, terminal(s): L1-L2 |
|
| output voltage |
24 V DC
|
|
| power supply output current |
15 A
|
|
| anti-harmonic filter |
Low frequency harmonic currents
|
|
| product certifications |
EAC
KC CULus UL 508 |
| network frequency limits |
47…63 Hz
|
|
|---|---|---|
| input voltage limits |
360...440 V
207...253 V |
|
| Power Factor |
0.663 at 400 V
0.693 at 230 V |
|
| efficiency |
80 %
|
|
| power dissipation in W |
72 W
|
|
| output coupling |
Series
Parallel |
|
| output protection type |
Against overvoltage, protection technology: 2 J peak limiter
Against overload and short-circuits, protection technology: external fuse, 20 A |
|
| Hold-up time |
14 ms
|
|
| status LED |
1 LED (green)output voltage
1 LED (orange)input voltage |
|
| residual ripple |
<= 1200 MV
|
|
| connections - terminals |
For input connection: screw type terminals, connection capacity: 5 x 2.5...5 x 4 mm² AWG 14...AWG 11
For input ground connection: screw type terminals, connection capacity: 1 x 2.5...1 x 4 mm² AWG 14...AWG 11 For output connection: screw type terminals, connection capacity: 4 x 4 mm² AWG 11 |
|
| depth |
138 mm
|
|
| height |
185 mm
|
|
| width |
135 mm
|
|
| net weight |
8.82 kg
|
|
| compatibility code |
ABL8F
|
| IP degree of protection |
IP20 conforming to EN/IEC 60529
|
|
|---|---|---|
| ambient air temperature for operation |
-20…60 °C
|
|
| ambient air temperature for storage |
-40…80 °C
|
|
| relative humidity |
0…95 % without condensation or dripping water
|
|
| operating altitude |
3000 m
|
|
| Safety class |
Class I conforming to VDE 0106-1
|
|
| dielectric strength |
2000 V between input and ground
4600 V between input and output 500 V between output and ground |
|
| Other environmental characteristic |
EMC conforming to IEC 62041
Safety conforming to EN/IEC 61558-2-6 Safety conforming to UL 508 Safety conforming to UL 60950-1 EMC conforming to EN/IEC 61000-3-2 |
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
10.203 kg
|
|
| Package 1 Height |
16.5 cm
|
|
| Package 1 width |
32.5 cm
|
|
| Package 1 Length |
37 cm
|
|
| Unit Type of Package 2 |
P06
|
|
| Number of Units in Package 2 |
12
|
|
| Package 2 Weight |
130.936 kg
|
|
| Package 2 Height |
80 cm
|
-
Phaseo ABL7 ABL8 ABL8FEQ24150
