Schneider Electric EVlink Wallbox - 3.7 kW - T2 attached cable - charging station; EVH2S3P0CK
EVlink Wallbox - 3.7 kW - T2 attached cable - charging station...
VAT-exclusive price: 119.387,00 |
VAT-inclusive price: 143.264,40 |

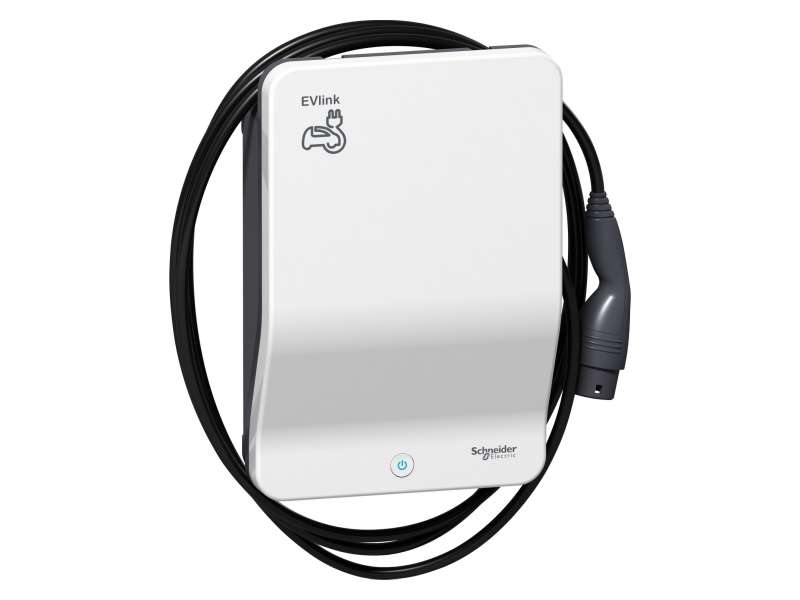

EVlink Wallbox - 3.7 kW - T2 attached cable - charging station
| Range | EVlink |
|---|---|
| Product name | EVlink Wallbox |
| Product or component type | Charging station |
| device short name | EVH2 |
| poles description | 1P + N |
| Mounting mode | Wall-mounted |
| Offer type | Standard |
| Max power | 3.7 kW 16 A |
| Number of charge point | 1 |
| Connection to the vehicle | Attached cable T2 4 m |
| access control system | Key |
| rated supply voltage | 220...240 V AC 50/60 Hz |
|---|---|
| earthing system |
TT TN |
| Number of inputs | 1 |
| input type |
Contact for power limitation Contact for delayed charging |
| control type |
1 white button, function: stop/restart Green button, function: cable unlocking |
| local signalling | 1 multi-colour LED, function: status indication |
| Height | 480 mm |
| Width | 330 mm |
| Depth | 170 mm |
| Net weight | 7.5 kg |
| colour |
White (RAL 9003) Grey (RAL 7016) |
| Standards |
IEC 62196-2 IEC 61851-1 IEC 61851-22 IEC 62196-1 |
| product certifications |
CE CB |
| IP degree of protection | IP54 conforming to IEC 60529 |
|---|---|
| IK degree of protection | IK10 conforming to IEC 62262 |
| ambient air temperature for operation | -30…50 °C |
| Ambient air temperature for storage | -40…80 °C |
| Relative humidity | 5…95 % |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 25.500 cm |
| Package 1 Width | 53.500 cm |
| Package 1 Length | 39.800 cm |
| Package 1 Weight | 8.565 kg |
| Unit Type of Package 2 | P06 |
| Number of Units in Package 2 | 4 |
| Package 2 Height | 75.000 cm |
| Package 2 Width | 60.000 cm |
| Package 2 Length | 80.000 cm |
| Package 2 Weight | 44.568 kg |
-
EVlink Wallbox EVH2S3P0CK
