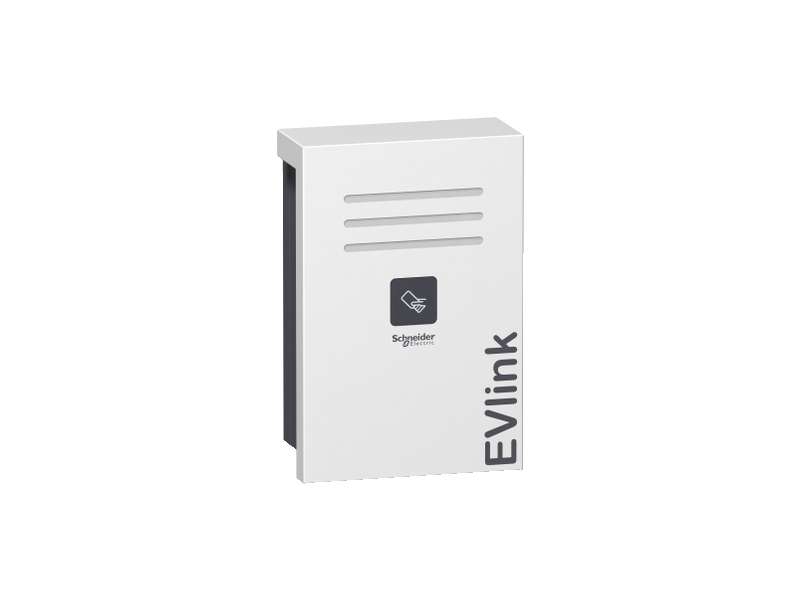

Schneider Electric EVlink PARKING NADZIDNA 22KW 1xT2 RFID STANICA ZA PUNJENJE EV; EVW2S22P02R
EVlink PARKING Wall Mounted 22KW 1xT2 RFID EV CHARGING STATION...
VAT-exclusive price: 386.266,86 |
VAT-inclusive price: 463.520,23 |
EVlink PARKING Wall Mounted 22KW 1xT2 RFID EV CHARGING STATION
| Range | EVlink |
|---|---|
| Product name | EVlink parking |
| Product or component type | Charging station |
| device short name | EVW2 |
| poles description |
3P + N for power circuit 1P + N for control circuit |
| Mounting mode | Wall-mounted |
| Offer type | Standard |
| rated supply voltage |
230 V AC 50/60 Hz control circuit 380...415 V AC 50/60 Hz power circuit |
| Earthing system |
TN TT IT |
| socket-outlet number | 1 |
| socket-outlet type | Right: T2 / silver plated contacts |
| maximum supply current | 32 A for T2 |
| Max power | 22 kW for T2 |
| access control system |
Badge RFID conforming to ISO/IEC 14443 Badge RFID conforming to ISO/IEC 15693 |
| Product compatibility | Not compatible with RFID badges with chips Mifare Classic 1K |
| control type |
1 red push-button, function: stop 1 green illuminated push-button, function: start/unlock flap |
|---|---|
| local signalling |
On charge: 1 LED (green) (flashing) on side Available: 1 LED (green) on front Reserved: 1 LED (orange) on front Not operational: 1 LED (red) on front |
| communication port protocol | OCPP 1.6 |
| Configuration /Architecture |
Standalone Clustured architecture |
| Operation and maintenance |
Circuit breaker status Load management Diagnosis capabilities Postponed charge User privilege configuration Charge detail records |
| Web server | Embedded |
| Ethernet service | Configuration via web server |
| Standards |
IEC 61851-22 IEC 61851-1 |
| Product certifications |
ZE Ready CB CE EV Ready |
| Height | 620 mm |
| Width | 413 mm |
| Depth | 256 mm |
| Net weight | 33 kg |
| colour |
Front: white (RAL 9003) Side: grey (RAL 7016) |
| IP degree of protection |
IP54 off load conforming to IEC 61851-1 IP54 on load conforming to IEC 61851-1 |
|---|---|
| IK degree of protection |
IK10 charging station conforming to IEC 61851-22 IK10 socket-outlet conforming to IEC 61851-22 |
| ambient air temperature for operation | -30…50 °C conforming to IEC 61851-22 |
| Ambient air temperature for storage | -40…80 °C |
| operating altitude | 0...2000 m conforming to IEC 61851-22 |
| Relative humidity | 0…95 % |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 45 cm |
| Package 1 Width | 50 cm |
| Package 1 Length | 68 cm |
| Package 1 Weight | 22.6 kg |
