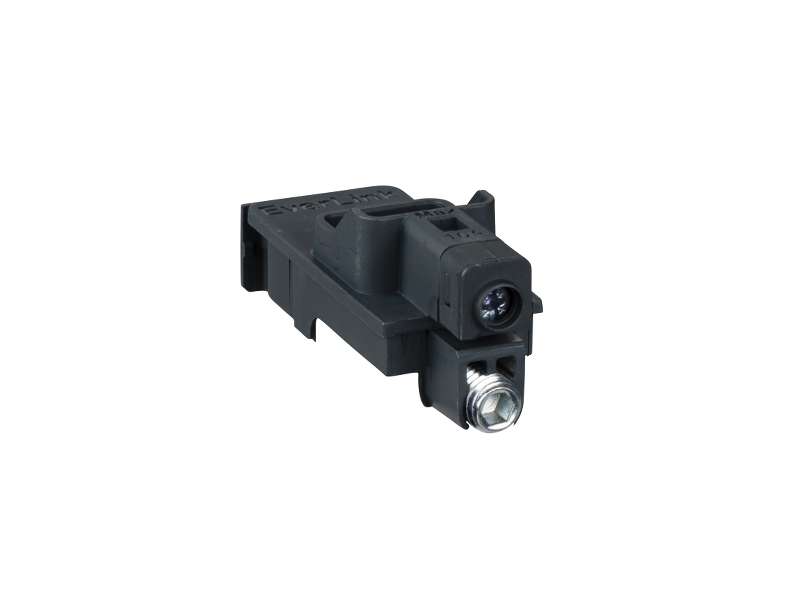

Schneider Electric EverLink konektor sa terminalom za kontrolu žice, Compact NSXm, za 1 kabl od 2,5 mm² do 95 mm², 160 A mak, 4 dela;LV426971

EverLink connector with control wire terminal, ComPact NSXm, for 1 cable 2.5 mm² to 95 mm², 160 A max, 4 parts...

Brand: Schneider Electric
Product Code: LV426971
Availability: Check availability

Price on request

Description
Specification

EverLink connector with control wire terminal, ComPact NSXm, for 1 cable 2.5 mm² to 95 mm², 160 A max, 4 parts

Main
range compatibility	ComPact NSXm
product or component type	Cable connector
Accessory / separate part type	Connection accessories
poles description	4P

Complementary
quantity per set	Set of 4
location of connection	Downstream Upstream
[In] rated current	16…160 A for copper 16…100 A for aluminium
conductor material	Steel
connections - terminals	Screw terminal - 1 cable(s) 2.5…95 mm² - solid Screw terminal2.5…95 mm² - stranded Screw terminal2.5…70 mm² - fine stranded
Control wire terminal	10 A for 0.5…6 mm² (AWG 20...AWG 10), stranded or fine stranded 10 A for 1.5…6 mm² (AWG 20...AWG 10), rigid

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Weight	171.0 g
Package 1 Height	2.5 cm
Package 1 width	14.0 cm
Package 1 Length	22.5 cm
Unit Type of Package 2	S03
Number of Units in Package 2	50
Package 2 Weight	62.0 kg
Package 2 Height	30.0 cm
Package 2 width	30.0 cm
Package 2 Length	40.0 cm
