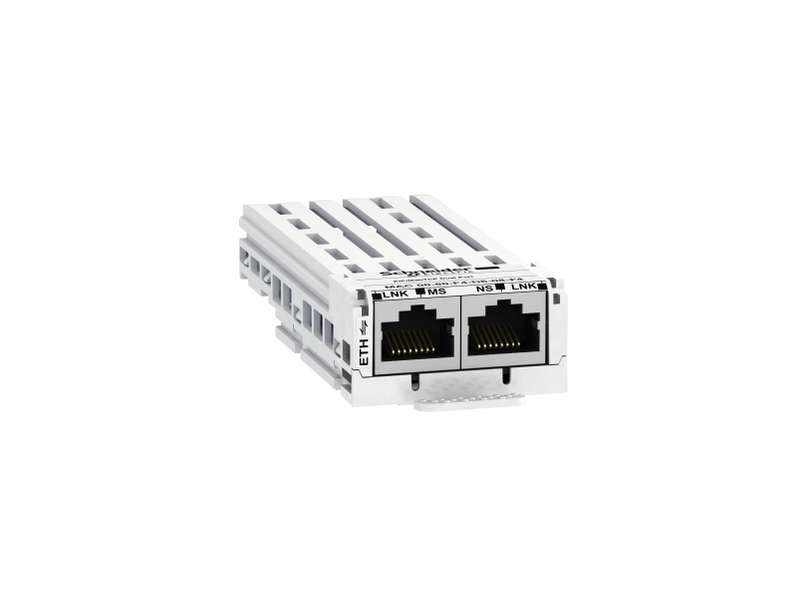

Schneider Electric Ethernet/IP, ModbusTCP komunikacioni modul - 2RJ45;VW3A3720

EtherNet/IP, ModbusTCP communication module - 2RJ45...

Brand: Schneider Electric
Product Code: VW3A3720
Availability: Check availability

VAT-exclusive price: 33.004,00

VAT-inclusive price: 39.604,80

Qnt:

Description
Specification

EtherNet/IP, ModbusTCP communication module - 2RJ45

Main
range of product	Altivar
product or component type	Communication module

Complementary
range compatibility	Altivar Process ATV600 Altivar Process Modular
communication port protocol	Modbus TCP EtherNet/IP
electrical connection	2 connectors RJ45, Ethernet IP/Modbus TCP
transmission rate	10/100 Mbps
exchange mode	Half duplex and full duplex
communication service	SNMP agent for Ethernet IP Modbus TCP server for Ethernet IP/Modbus TCP Ethernet/IP adapter for Ethernet IP RSTP support for Ethernet IP FTP for Ethernet IP ODVA AC drive and CiA 402 profile for Ethernet IP/Modbus TCP Auto-MDIX for Ethernet IP/Modbus TCP 32 parameters IN - 32 parameters OUT implicit messaging for Ethernet IP/Modbus TCP FDR for Ethernet IP/Modbus TCP
communication network type	IPv6 (internet protocol)
topology	Daisy chain
time synchronisation protocol	SNTP
web server	Embedded HTTP server
web services	Save/restore drive configuration Drive setting and diagnostic Energy monitoring Widgets (ID, control, data table, diagnostic, charts) Upgrade drive firmware Customizable home page Drive monitor Pump function setting and monitoring Ethernet setting and diagnostic
display type	1 LED for MS (Module Status) 1 LED for NS (Network Status) 1 LED for TX/RX (Transmit/Receive port 1) 1 LED for TX/RX (Transmit/Receive port 2)
bus profile	CIP AC Drive CiA 402
net weight	0.2 kg

Environment
product certifications	ODVA Achilles: level 2

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Weight	156.0 g
Package 1 Height	6.7 cm
Package 1 width	13.0 cm
Package 1 Length	18.8 cm
Unit Type of Package 2	S03
Number of Units in Package 2	16
Package 2 Weight	3.21 kg
Package 2 Height	30.0 cm
Package 2 width	30.0 cm
Package 2 Length	40.0 cm
Unit Type of Package 3	P06
Number of Units in Package 3	64
Package 3 Weight	21.86 kg
Package 3 Height	45.0 cm
Package 3 width	60.0 cm
Package 3 Length	80.0 cm
