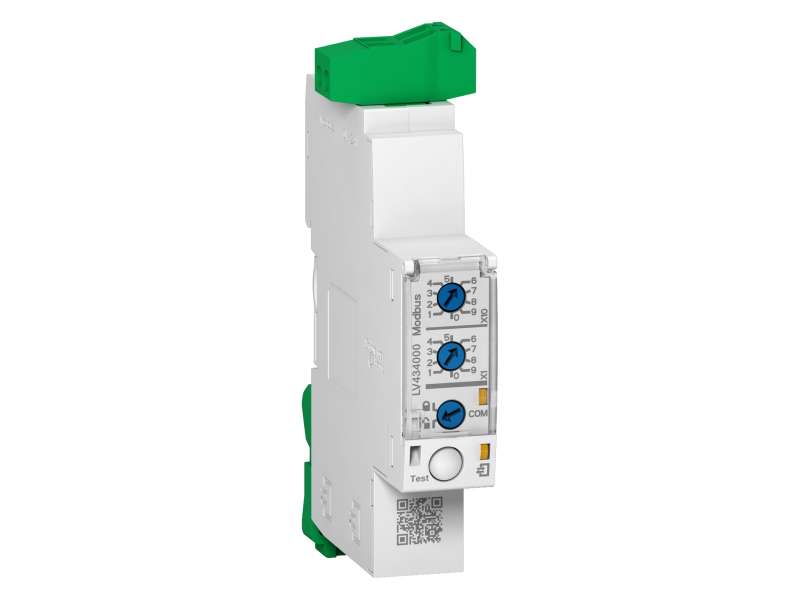

Schneider Electric Enerlin'X IFM - Modbus - serijski interfejs za One prekidač;LV434000
IFM Modbus-SL interface module, Enerlin'X...
VAT-exclusive price: 15.777,00 |
VAT-inclusive price: 18.932,40 |
IFM Modbus-SL interface module, Enerlin'X
| device short name |
IFM
|
|
|---|---|---|
| product or component type |
Interface module
|
|
| range compatibility |
Masterpact MTZ
MasterPact NT Masterpact NW ComPact NSX ComPact NS630b...1600 ComPact NS1600b...3200 PowerPact J PowerPact L PowerPact H PowerPact P PowerPact R |
| communication network type |
Universal Logic Plug on 2-port RJ45
Modbus, Modbus Serial line slave9.6...38.4 kbauds on 1 RJ45 |
|
|---|---|---|
| mounting mode |
By clips
|
|
| mounting support |
35 mm DIN rail
|
|
| accuracy class |
Class 2 power supply
|
|
| input voltage |
24 V DC - 20...10 %
|
|
| output voltage |
24 V DC
|
|
| Number output current |
3 A
|
|
| current consumption |
30 mA 24 V DC room temperature
|
|
| power consumption in W |
1.635 W
|
|
| memory type |
EEPROM data storage
|
|
| connections - terminals |
RJ45 connector
Screw type terminals |
|
| product certifications |
EAC
CULus CE FCC |
|
| standards |
CISPR 22
UL 61010 UL 60950 CISPR 24 CISPR 11 IEC 60950 IACS E10 |
|
| height |
109 mm
|
|
| width |
18 mm
|
|
| depth |
73 mm
|
|
| net weight |
120 g
|
| IP degree of protection |
Connectors: IP20
Other parts: IP30 |
|
|---|---|---|
| relative humidity |
5…85 % at 55 °C without condensation
|
|
| ambient air temperature for storage |
-40…85 °C
|
|
| ambient air temperature for operation |
-20…70 °C
|
|
| pollution degree |
3
|
|
| flame retardance |
V0 conforming to UL 94
|
|
| shock resistance |
+/- 15 gn 11 ms conforming to EN/IEC 60068-2-27
|
|
| vibration frequency |
5…8.4 Hz conforming to EN/IEC 60068-2
|
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
95 g
|
|
| Package 1 Height |
4.5 cm
|
|
| Package 1 width |
8 cm
|
|
| Package 1 Length |
11.5 cm
|
|
| Unit Type of Package 2 |
S03
|
|
| Number of Units in Package 2 |
54
|
|
| Package 2 Weight |
6.662 kg
|
|
| Package 2 Height |
30 cm
|
|
| Package 2 width |
30 cm
|
|
| Package 2 Length |
40 cm
|
|
| Unit Type of Package 3 |
P12
|
|
| Number of Units in Package 3 |
432
|
|
| Package 3 Weight |
74.3 kg
|
|
-
ComPact NS LV434000
