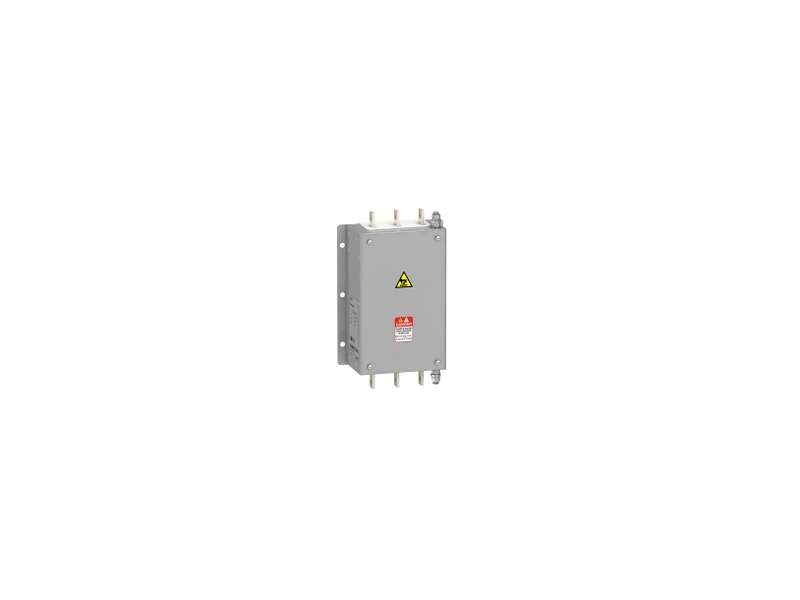

Schneider Electric EMC ulazni filter - za frekventne regulatore - trofazno napajanje;VW3A4710

EMC radio interference input filter - for variable speed drive - 3-phase supply...

Brand: Schneider Electric
Product Code: VW3A4710
Availability: Check availability

VAT-exclusive price: 183.179,00

VAT-inclusive price: 219.814,80

Qnt:

Description
Specification

EMC radio interference input filter - for variable speed drive - 3-phase supply

Main
range of product	Altivar
product or component type	EMC input filter
range compatibility	Altivar Process ATV600 Altivar Process ATV900
product compatibility	Variable speed drive ATV630 wall mount, motor: 160 kW, 380...480 V Variable speed drive ATV630 wall mount, motor: 75 kW, 200...240 V Variable speed drive ATV930 wall mount, motor: 160 kW, 380...480 V Variable speed drive ATV930 wall mount, motor: 75 kW, 200...240 V
product specific application	Radio interference input filter
[In] rated current	305 A
network number of phases	Three phase

Complementary
electrical connection	Copper bar M12
maximum motor cable length	150 m shielded motor cable 4 kHz conforming to EN/IEC 61800-3 category C2, 380...480 V 300 m shielded motor cable 4 kHz conforming to EN/IEC 61800-3 category C3, 380...480 V 150 m shielded motor cable 4 kHz conforming to EN/IEC 61800-3 category C2, 200...240 V 300 m shielded motor cable 4 kHz conforming to EN/IEC 61800-3 category C3, 200...240 V 50 m shielded motor cable 4 kHz conforming to EN/IEC 61800-3 category C1, 200...240 V
maximum earth leakage current	27.8 mA at 400 V 50 Hz TN 27.8 mA at 400 V 50 Hz TT
power supply voltage	200…240 V 380…480 V
tolerance	10 %
mechanical robustness	Shocks class 3M4 conforming to IEC 60721-3-3 Vibrations class 3M4 conforming to IEC 60721-3-3
width	260 mm
height	520 mm
depth	117 mm
net weight	17 kg

Environment
IP degree of protection	IP00
relative humidity	5…95 % without condensation conforming to IEC 61800-5-1
ambient air temperature for operation	-10…50 °C (without current derating) 50…60 °C (with current derating 1.5 % per °C)
ambient air temperature for storage	-40…70 °C
operating altitude	0...1000 m without current derating 1000...4000 m with current derating 1 % per 100 m
standards	EN/IEC 61800-3

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Weight	20.0 kg
Package 1 Height	20.0 cm
Package 1 width	33.2 cm
Package 1 Length	56.2 cm
Unit Type of Package 2	P12
Number of Units in Package 2	8
Package 2 Weight	168.5 kg
Package 2 Height	112.0 cm
Package 2 width	80.0 cm
Package 2 Length	120.0 cm
