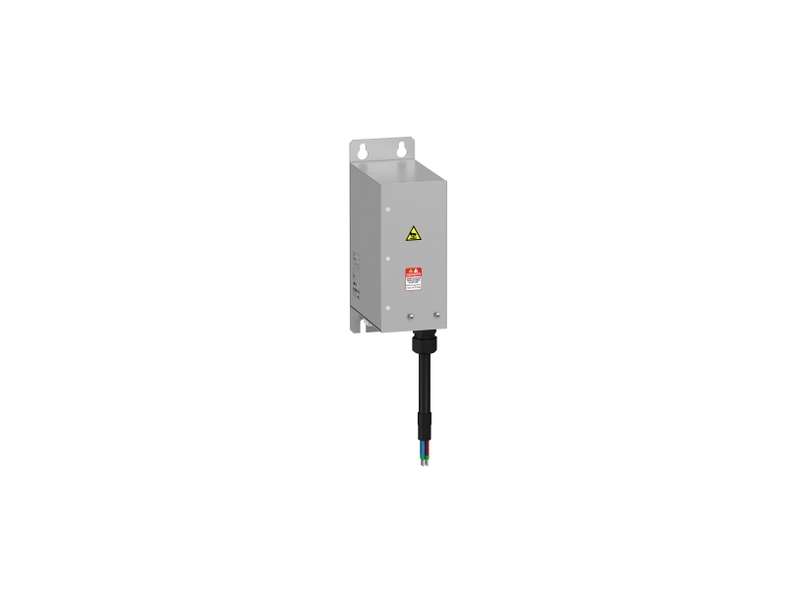

Schneider Electric EMC ulazni filter - za frekventne regulatore - trofazno napajanje;VW3A4702
EMC radio interference input filter - for variable speed drive - 3-phase supply...
VAT-exclusive price: 26.191,00 |
VAT-inclusive price: 31.429,20 |
EMC radio interference input filter - for variable speed drive - 3-phase supply
| range of product | Altivar |
|---|---|
| product or component type | EMC input filter |
| range compatibility |
Altivar Process ATV600 Altivar Process ATV900 |
| product compatibility |
Variable speed drive ATV630 wall mount, motor: 3 kW, 380...480 V Variable speed drive ATV630 wall mount, motor: 4 kW, 380...480 V Variable speed drive ATV630 wall mount, motor: 5.5 kW, 380...480 V Variable speed drive ATV630 wall mount, motor: 2.2 kW, 200...240 V Variable speed drive ATV630 wall mount, motor: 3 kW, 200...240 V Variable speed drive ATV650 wall mount, motor: 3 kW, 380...480 V Variable speed drive ATV650 wall mount, motor: 4 kW, 380...480 V Variable speed drive ATV650 wall mount, motor: 5.5 kW, 380...480 V Variable speed drive ATV930 wall mount, motor: 3 kW, 380...480 V Variable speed drive ATV930 wall mount, motor: 4 kW, 380...480 V Variable speed drive ATV930 wall mount, motor: 5.5 kW, 380...480 V Variable speed drive ATV930 wall mount, motor: 2.2 kW, 200...240 V Variable speed drive ATV930 wall mount, motor: 3 kW, 200...240 V Variable speed drive ATV950 wall mount, motor: 3 kW, 380...480 V Variable speed drive ATV950 wall mount, motor: 4 kW, 380...480 V Variable speed drive ATV950 wall mount, motor: 5.5 kW, 380...480 V |
| product specific application | Radio interference input filter |
| [In] rated current | 15 A |
| thermal losses | 2.25 W |
| network number of phases | Three phase |
| electrical connection | Terminal 4 mm² AWG 12 |
|---|---|
| maximum motor cable length |
150 m shielded motor cable 4 kHz conforming to EN/IEC 61800-3 category C2, 380...480 V 300 m shielded motor cable 4 kHz conforming to EN/IEC 61800-3 category C3, 380...480 V 150 m shielded motor cable 4 kHz conforming to EN/IEC 61800-3 category C2, 200...240 V 300 m shielded motor cable 4 kHz conforming to EN/IEC 61800-3 category C3, 200...240 V 50 m shielded motor cable 4 kHz conforming to EN/IEC 61800-3 category C1, 200...240 V 50 m shielded motor cable 4 kHz conforming to EN/IEC 61800-3 category C1, 380...480 V |
| maximum earth leakage current |
7.6 mA at 400 V 50 Hz TN 7.6 mA at 400 V 50 Hz TT |
| power supply voltage |
200…240 V 380…480 V |
| tolerance | 10 % |
| mechanical robustness |
Shocks class 3M4 conforming to IEC 60721-3-3 Vibrations class 3M4 conforming to IEC 60721-3-3 |
| width | 75 mm |
| height | 240 mm |
| depth | 140 mm |
| net weight | 2.4 kg |
| IP degree of protection |
IP20mounting side by side IP21with kit VW3A47902 |
|---|---|
| relative humidity | 5…95 % without condensation conforming to IEC 61800-5-1 |
| ambient air temperature for operation |
-10…50 °C (without current derating) 50…60 °C (with current derating 1.5 % per °C) |
| ambient air temperature for storage | -40…70 °C |
| operating altitude |
0...1000 m without current derating 1000...4000 m with current derating 1 % per 100 m |
| standards | EN/IEC 61800-3 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 2.621 kg |
| Package 1 Height | 7.8 cm |
| Package 1 width | 13.5 cm |
| Package 1 Length | 25.0 cm |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 2 |
| Package 2 Weight | 5.9 kg |
| Package 2 Height | 30 cm |
| Package 2 width | 30 cm |
| Package 2 Length | 40 cm |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 36 |
| Package 3 Weight | 105.95 kg |
| Package 3 Height | 77 cm |
| Package 3 width | 80 cm |
| Package 3 Length | 60 cm |
| range of product | Altivar |
|---|---|
| product or component type | EMC input filter |
| range compatibility |
Altivar Process ATV600 Altivar Process ATV900 |
| product compatibility |
Variable speed drive ATV630 wall mount, motor: 3 kW, 380...480 V Variable speed drive ATV630 wall mount, motor: 4 kW, 380...480 V Variable speed drive ATV630 wall mount, motor: 5.5 kW, 380...480 V Variable speed drive ATV630 wall mount, motor: 2.2 kW, 200...240 V Variable speed drive ATV630 wall mount, motor: 3 kW, 200...240 V Variable speed drive ATV650 wall mount, motor: 3 kW, 380...480 V Variable speed drive ATV650 wall mount, motor: 4 kW, 380...480 V Variable speed drive ATV650 wall mount, motor: 5.5 kW, 380...480 V Variable speed drive ATV930 wall mount, motor: 3 kW, 380...480 V Variable speed drive ATV930 wall mount, motor: 4 kW, 380...480 V Variable speed drive ATV930 wall mount, motor: 5.5 kW, 380...480 V Variable speed drive ATV930 wall mount, motor: 2.2 kW, 200...240 V Variable speed drive ATV930 wall mount, motor: 3 kW, 200...240 V Variable speed drive ATV950 wall mount, motor: 3 kW, 380...480 V Variable speed drive ATV950 wall mount, motor: 4 kW, 380...480 V Variable speed drive ATV950 wall mount, motor: 5.5 kW, 380...480 V |
| product specific application | Radio interference input filter |
| [In] rated current | 15 A |
| thermal losses | 2.25 W |
| network number of phases | Three phase |
| electrical connection | Terminal 4 mm² AWG 12 |
|---|---|
| maximum motor cable length |
150 m shielded motor cable 4 kHz conforming to EN/IEC 61800-3 category C2, 380...480 V 300 m shielded motor cable 4 kHz conforming to EN/IEC 61800-3 category C3, 380...480 V 150 m shielded motor cable 4 kHz conforming to EN/IEC 61800-3 category C2, 200...240 V 300 m shielded motor cable 4 kHz conforming to EN/IEC 61800-3 category C3, 200...240 V 50 m shielded motor cable 4 kHz conforming to EN/IEC 61800-3 category C1, 200...240 V 50 m shielded motor cable 4 kHz conforming to EN/IEC 61800-3 category C1, 380...480 V |
| maximum earth leakage current |
7.6 mA at 400 V 50 Hz TN 7.6 mA at 400 V 50 Hz TT |
| power supply voltage |
200…240 V 380…480 V |
| tolerance | 10 % |
| mechanical robustness |
Shocks class 3M4 conforming to IEC 60721-3-3 Vibrations class 3M4 conforming to IEC 60721-3-3 |
| width | 75 mm |
| height | 240 mm |
| depth | 140 mm |
| net weight | 2.4 kg |
| IP degree of protection |
IP20mounting side by side IP21with kit VW3A47902 |
|---|---|
| relative humidity | 5…95 % without condensation conforming to IEC 61800-5-1 |
| ambient air temperature for operation |
-10…50 °C (without current derating) 50…60 °C (with current derating 1.5 % per °C) |
| ambient air temperature for storage | -40…70 °C |
| operating altitude |
0...1000 m without current derating 1000...4000 m with current derating 1 % per 100 m |
| standards | EN/IEC 61800-3 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 2.621 kg |
| Package 1 Height | 7.8 cm |
| Package 1 width | 13.5 cm |
| Package 1 Length | 25.0 cm |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 2 |
| Package 2 Weight | 5.9 kg |
| Package 2 Height | 30 cm |
| Package 2 width | 30 cm |
| Package 2 Length | 40 cm |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 36 |
| Package 3 Weight | 105.95 kg |
| Package 3 Height | 77 cm |
