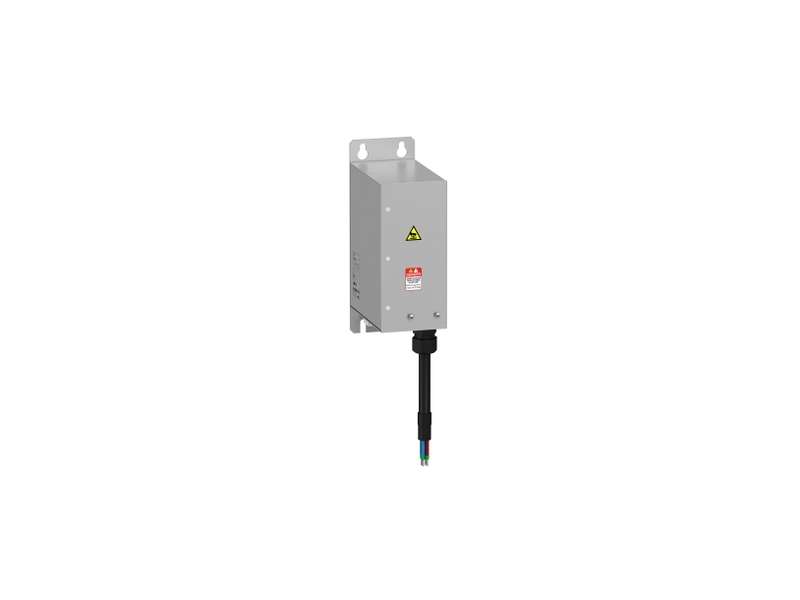

Schneider Electric EMC ulazni filter - za frekventne regulatore - 50 A;VW3A4704
EMC radio interference input filter - for variable speed drive - 50 A...
VAT-exclusive price: 40.135,00 |
VAT-inclusive price: 48.162,00 |
EMC radio interference input filter - for variable speed drive - 50 A
| range of product | Altivar |
|---|---|
| product or component type | EMC input filter |
| range compatibility |
Altivar Process ATV900 Altivar Process ATV600 |
| product compatibility |
Variable speed drive ATV630 wall mount, motor: 18.5 kW, 380...480 V Variable speed drive ATV630 wall mount, motor: 22 kW, 380...480 V Variable speed drive ATV630 wall mount, motor: 11 kW, 200...240 V Variable speed drive ATV650 wall mount, motor: 18.5 kW, 380...480 V Variable speed drive ATV650 wall mount, motor: 22 kW, 380...480 V Variable speed drive ATV930 wall mount, motor: 18.5 kW, 380...480 V Variable speed drive ATV930 wall mount, motor: 22 kW, 380...480 V Variable speed drive ATV930 wall mount, motor: 11 kW, 200...240 V Variable speed drive ATV950 wall mount, motor: 18.5 kW, 380...480 V Variable speed drive ATV950 wall mount, motor: 22 kW, 380...480 V |
| product specific application | Radio interference input filter |
| [In] rated current | 50 A |
| thermal losses | 8 W |
| network number of phases | Three phase |
| electrical connection | Terminal 16 mm² AWG 4 |
|---|---|
| maximum motor cable length |
150 m shielded motor cable 4 kHz conforming to EN/IEC 61800-3 category C2, 380...480 V 300 m shielded motor cable 4 kHz conforming to EN/IEC 61800-3 category C3, 380...480 V 150 m shielded motor cable 4 kHz conforming to EN/IEC 61800-3 category C2, 200...240 V 300 m shielded motor cable 4 kHz conforming to EN/IEC 61800-3 category C3, 200...240 V 50 m shielded motor cable 4 kHz conforming to EN/IEC 61800-3 category C1, 200...240 V 50 m shielded motor cable 4 kHz conforming to EN/IEC 61800-3 category C1, 380...480 V |
| maximum earth leakage current |
7.6 mA at 400 V 50 Hz TN 7.6 mA at 400 V 50 Hz TT |
| power supply voltage |
380…480 V 200…240 V |
| tolerance | 10 % |
| mechanical robustness |
Shocks class 3M4 conforming to IEC 60721-3-3 Vibrations class 3M4 conforming to IEC 60721-3-3 |
| width | 90 mm |
| height | 283 mm |
| depth | 165 mm |
| net weight | 5.2 kg |
| IP degree of protection |
IP20mounting side by side IP21with kit VW3A47904 |
|---|---|
| relative humidity | 5…95 % without condensation conforming to IEC 61800-5-1 |
| ambient air temperature for operation |
-10…50 °C (without current derating) 50…60 °C (with current derating 1.5 % per °C) |
| ambient air temperature for storage | -40…70 °C |
| operating altitude |
0...1000 m without current derating 1000...4000 m with current derating 1 % per 100 m |
| standards | EN/IEC 61800-3 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 6.242 kg |
| Package 1 Height | 29.0 cm |
| Package 1 width | 37.5 cm |
| Package 1 Length | 52.5 cm |
| Unit Type of Package 2 | P06 |
| Number of Units in Package 2 | 4 |
| Package 2 Weight | 35.24 kg |
| Package 2 Height | 77.0 cm |
| Package 2 width | 60.0 cm |
| Package 2 Length | 80.0 cm |
| range of product | Altivar |
|---|---|
| product or component type | EMC input filter |
| range compatibility |
Altivar Process ATV900 Altivar Process ATV600 |
| product compatibility |
Variable speed drive ATV630 wall mount, motor: 18.5 kW, 380...480 V Variable speed drive ATV630 wall mount, motor: 22 kW, 380...480 V Variable speed drive ATV630 wall mount, motor: 11 kW, 200...240 V Variable speed drive ATV650 wall mount, motor: 18.5 kW, 380...480 V Variable speed drive ATV650 wall mount, motor: 22 kW, 380...480 V Variable speed drive ATV930 wall mount, motor: 18.5 kW, 380...480 V Variable speed drive ATV930 wall mount, motor: 22 kW, 380...480 V Variable speed drive ATV930 wall mount, motor: 11 kW, 200...240 V Variable speed drive ATV950 wall mount, motor: 18.5 kW, 380...480 V Variable speed drive ATV950 wall mount, motor: 22 kW, 380...480 V |
| product specific application | Radio interference input filter |
| [In] rated current | 50 A |
| thermal losses | 8 W |
| network number of phases | Three phase |
| electrical connection | Terminal 16 mm² AWG 4 |
|---|---|
| maximum motor cable length |
150 m shielded motor cable 4 kHz conforming to EN/IEC 61800-3 category C2, 380...480 V 300 m shielded motor cable 4 kHz conforming to EN/IEC 61800-3 category C3, 380...480 V 150 m shielded motor cable 4 kHz conforming to EN/IEC 61800-3 category C2, 200...240 V 300 m shielded motor cable 4 kHz conforming to EN/IEC 61800-3 category C3, 200...240 V 50 m shielded motor cable 4 kHz conforming to EN/IEC 61800-3 category C1, 200...240 V 50 m shielded motor cable 4 kHz conforming to EN/IEC 61800-3 category C1, 380...480 V |
| maximum earth leakage current |
7.6 mA at 400 V 50 Hz TN 7.6 mA at 400 V 50 Hz TT |
| power supply voltage |
380…480 V 200…240 V |
| tolerance | 10 % |
| mechanical robustness |
Shocks class 3M4 conforming to IEC 60721-3-3 Vibrations class 3M4 conforming to IEC 60721-3-3 |
| width | 90 mm |
| height | 283 mm |
| depth | 165 mm |
| net weight | 5.2 kg |
| IP degree of protection |
IP20mounting side by side IP21with kit VW3A47904 |
|---|---|
| relative humidity | 5…95 % without condensation conforming to IEC 61800-5-1 |
| ambient air temperature for operation |
-10…50 °C (without current derating) 50…60 °C (with current derating 1.5 % per °C) |
| ambient air temperature for storage | -40…70 °C |
| operating altitude |
0...1000 m without current derating 1000...4000 m with current derating 1 % per 100 m |
| standards | EN/IEC 61800-3 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 6.242 kg |
| Package 1 Height | 29.0 cm |
| Package 1 width | 37.5 cm |
| Package 1 Length | 52.5 cm |
| Unit Type of Package 2 | P06 |
| Number of Units in Package 2 | 4 |
| Package 2 Weight | 35.24 kg |
| Package 2 Height | 77.0 cm |
| Package 2 width | 60.0 cm |
| Package 2 Length | 80.0 cm |
