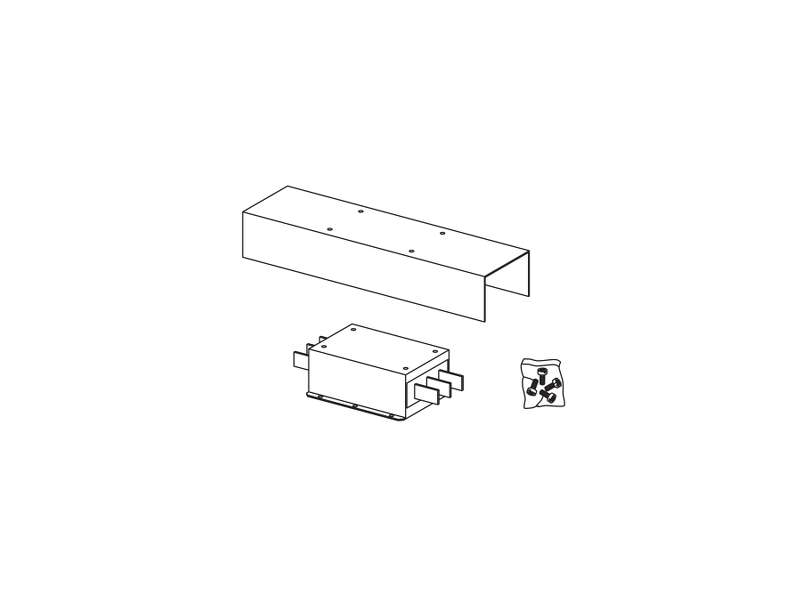

Schneider Electric EMC ulazni filter - 336/546 A - 125 W - trofazno napajanje;VW3A4411
EMC radio interference input filter - 336/546 A - 125 W - 3-phase supply...
VAT-exclusive price: 189.294,00 |
VAT-inclusive price: 227.152,80 |
EMC radio interference input filter - 336/546 A - 125 W - 3-phase supply
| range of product | Altivar |
|---|---|
| product or component type | EMC input filter |
| range compatibility |
Altivar Process ATV900 Altivar 71 Altivar Process ATV600 Altivar 71Q Altivar 61Q Altivar 61 |
| product compatibility |
ATV61HC22N4 ATV61HC25N4 ATV61HC31N4 ATV61HD90M3X ATV61QC20N4 ATV61QC25N4 ATV61QC31N4 ATV71HC16N4 ATV71HC20N4 ATV71HC25N4 ATV71HC28N4 ATV71QC16N4 ATV71QC20N4 ATV71QC25N4 Variable speed drive ATV630 wall mount, motor: 220 kW, 380...480 V Variable speed drive ATV630 wall mount, motor: 250 kW, 380...480 V Variable speed drive ATV630 wall mount, motor: 315 kW, 380...480 V Variable speed drive ATV930 wall mount, motor: 220 kW, 380...480 V Variable speed drive ATV930 wall mount, motor: 250 kW, 380...480 V Variable speed drive ATV930 wall mount, motor: 315 kW, 380...480 V |
| product specific application | Radio interference input filter |
| [In] rated current |
546 A 336 A |
| thermal losses | 125 W |
| network number of phases | Three phase |
| electrical connection | M10 bars |
|---|---|
| maximum motor cable length |
300 m shielded motor cable conforming to EN/IEC 61800-3 category C2 50 m shielded motor cable conforming to EN/IEC 61800-3 category C1 |
| maximum earth leakage current | 500 mA at 400 V 50 Hz |
| power supply voltage |
200…240 V 380…500 V |
| tolerance | 10 % |
| net weight |
25 kg 22 kg |
| IP degree of protection |
IP00 IP30with kits VW3A9601, 602 |
|---|---|
| relative humidity | 0…93 % conforming to IEC 68-2-3 |
| ambient air temperature for operation | -25…45 °C |
| ambient air temperature for storage | -25…85 °C |
| operating altitude |
<= 1000 m without current derating 1000...3000 m with current derating 1 % per 100 m |
| vibration resistance |
1 gn (f= 13…150 Hz) conforming to IEC 60068-2-6 1.5 mm peak to peak (f= 3…13 Hz) conforming to IEC 60068-2-6 |
| shock resistance | 15 gn for 11 ms conforming to EN/IEC 60068-2-27 |
| standards |
EN 133200 EN/IEC 61800-3 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 68.0 kg |
| Package 1 Height | 50.0 cm |
| Package 1 width | 80.0 cm |
| Package 1 Length | 120.0 cm |
| Unit Type of Package 2 | P12 |
| Number of Units in Package 2 | 1 |
| Package 2 Weight | 68.0 kg |
| Package 2 Height | 50.0 cm |
| Package 2 width | 80.0 cm |
| Package 2 Length | 120.0 cm |
| Warranty | 18 months |
|---|
| range of product | Altivar |
|---|---|
| product or component type | EMC input filter |
| range compatibility |
Altivar Process ATV900 Altivar 71 Altivar Process ATV600 Altivar 71Q Altivar 61Q Altivar 61 |
| product compatibility |
ATV61HC22N4 ATV61HC25N4 ATV61HC31N4 ATV61HD90M3X ATV61QC20N4 ATV61QC25N4 ATV61QC31N4 ATV71HC16N4 ATV71HC20N4 ATV71HC25N4 ATV71HC28N4 ATV71QC16N4 ATV71QC20N4 ATV71QC25N4 Variable speed drive ATV630 wall mount, motor: 220 kW, 380...480 V Variable speed drive ATV630 wall mount, motor: 250 kW, 380...480 V Variable speed drive ATV630 wall mount, motor: 315 kW, 380...480 V Variable speed drive ATV930 wall mount, motor: 220 kW, 380...480 V Variable speed drive ATV930 wall mount, motor: 250 kW, 380...480 V Variable speed drive ATV930 wall mount, motor: 315 kW, 380...480 V |
| product specific application | Radio interference input filter |
| [In] rated current |
546 A 336 A |
| thermal losses | 125 W |
| network number of phases | Three phase |
| electrical connection | M10 bars |
|---|---|
| maximum motor cable length |
300 m shielded motor cable conforming to EN/IEC 61800-3 category C2 50 m shielded motor cable conforming to EN/IEC 61800-3 category C1 |
| maximum earth leakage current | 500 mA at 400 V 50 Hz |
| power supply voltage |
200…240 V 380…500 V |
| tolerance | 10 % |
| net weight |
25 kg 22 kg |
| IP degree of protection |
IP00 IP30with kits VW3A9601, 602 |
|---|---|
| relative humidity | 0…93 % conforming to IEC 68-2-3 |
| ambient air temperature for operation | -25…45 °C |
| ambient air temperature for storage | -25…85 °C |
| operating altitude |
<= 1000 m without current derating 1000...3000 m with current derating 1 % per 100 m |
| vibration resistance |
1 gn (f= 13…150 Hz) conforming to IEC 60068-2-6 1.5 mm peak to peak (f= 3…13 Hz) conforming to IEC 60068-2-6 |
| shock resistance | 15 gn for 11 ms conforming to EN/IEC 60068-2-27 |
| standards |
EN 133200 EN/IEC 61800-3 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 68.0 kg |
| Package 1 Height | 50.0 cm |
| Package 1 width | 80.0 cm |
| Package 1 Length | 120.0 cm |
| Unit Type of Package 2 | P12 |
| Number of Units in Package 2 | 1 |
| Package 2 Weight | 68.0 kg |
| Package 2 Height | 50.0 cm |
| Package 2 width | 80.0 cm |
| Package 2 Length | 120.0 cm |
| Warranty | 18 months |
|---|
