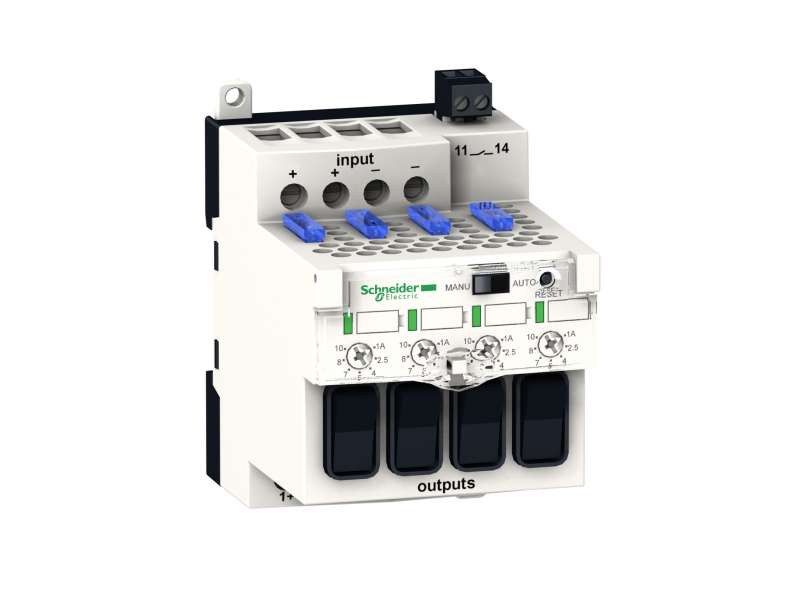

Schneider Electric Elektronski zaštitni modul - 28..28.8 V DC- 10A - za regulisano napajanje SMPS;ABL8PRP24100
Electronic protection module - 28..28.8 V DC - 10 A - for regulated SMPS...
VAT-exclusive price: 26.818,00 |
VAT-inclusive price: 32.181,60 |
Electronic protection module - 28..28.8 V DC - 10 A - for regulated SMPS
| range of product |
Phaseo
|
|
|---|---|---|
| product or component type |
Electronic protection module
|
|
| input voltage |
24...28.8 V DC
|
|
| output voltage |
(Uin-0.3) V DC
|
|
| maximum output current |
10 A per channel, rating: 1/2.5/4/5/7/8/10
|
| input voltage limits |
19...32 V
|
|
|---|---|---|
| input current |
40 A
|
|
| number of output channels |
4
|
|
| output protection type |
Against overload, protection technology: 1.3 x In
Against short-circuits, protection technology: automatic reset Line protection, protection technology: 1 x 15 A integrated fuse per channel |
|
| complementary function |
2-pole breaking by channel
|
|
| breaking capacity |
1000 A at 32 V DC by fuse
|
|
| connections - terminals |
For input connection: screw type terminals, connection capacity: 4 x 0.5...4 x 10 mm² AWG 20...AWG 8
For diagnostic relay: removable screw terminal block, connection capacity: 1 x 2.5 mm² AWG 14 For output connection: screw type terminals, connection capacity: 8 x 0.5...8 x 4 mm² AWG 20...AWG 10 |
|
| fixing mode |
By clips on 35 mm symmetrical DIN rail, operating position: vertical
On panel |
|
| operating altitude |
2000 m
|
|
| marking |
CE
|
|
| name of test |
Electrostatic discharges conforming to EN/IEC 61000-4-2
Emission conforming to EN 61000-6-3 Induced electromagnetic field conforming to EN/IEC 61000-4-6 level 3 Radiated electromagnetic field conforming to EN/IEC 61000-4-3 level 3 Rapid transient conforming to IEC 61000-4-4 level 3 Surge conforming to EN/IEC 61000-4-5 level 2 Conducted/radiated emissions conforming to EN 55022 class B Emission conforming to EN 50081-1 |
|
| local signalling |
1 LED per channel (green/red) for channel status
1 relay for channel status |
|
| net weight |
0.47 kg
|
| product certifications |
RCM
EAC |
|
|---|---|---|
| standards |
UL 508
CSA C22.2 No 60950-1 |
|
| ambient air temperature for operation |
-25…60 °C
|
|
| ambient air temperature for storage |
-40…85 °C
|
|
| environmental characteristic |
EMC conforming to EN 61000-6-3
EMC conforming to EN/IEC 61000-6-2 Safety conforming to EN/IEC 60950-1 Safety conforming to EN/IEC 61204-3 |
|
| IP degree of protection |
IP20 conforming to EN/IEC 60529
|
|
| dielectric strength |
500 V between input and ground
500 V between output and ground |
|
| overvoltage category |
Class II conforming to VDE 0106-1
|
|
| relative humidity |
0…90 % during operation
0…95 % during storage |
|
| vibration resistance |
2 gn (f= 11.9…150 Hz) conforming to EN/IEC 61131-2
3.5 mm (f= 3…11.9 Hz) conforming to EN/IEC 61131-2 |
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
582 g
|
|
| Package 1 Height |
13.8 cm
|
|
| Package 1 width |
10 cm
|
|
| Package 1 Length |
13.5 cm
|
|
| Unit Type of Package 2 |
S04
|
|
| Number of Units in Package 2 |
21
|
|
| Package 2 Weight |
13.474 kg
|
|
| Package 2 Height |
30 cm
|
|
| Package 2 width |
40 cm
|
|
| Package 2 Length |
60 cm
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| REACh Regulation |
|
-
Phaseo ABL7 ABL8 ABL8PRP24100
