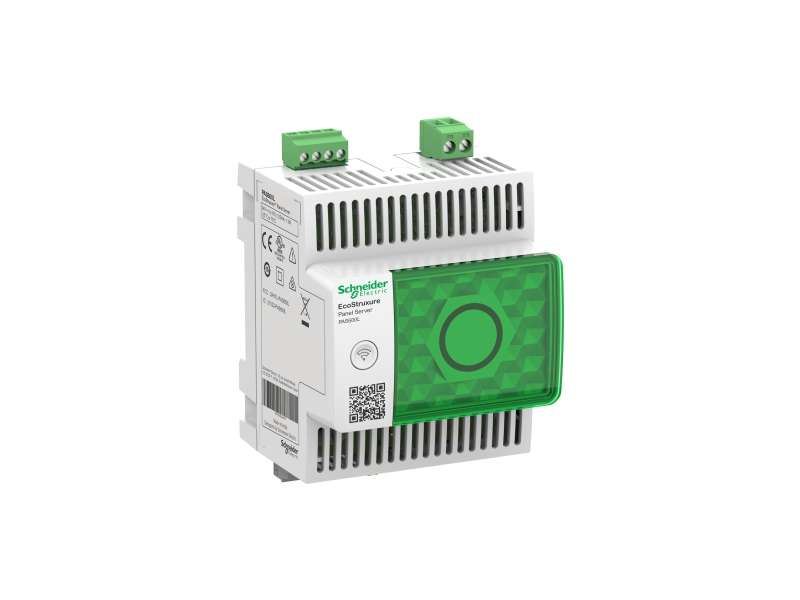

Schneider Electric EcoStruxure Panel Server - univerzalni bežični, koncentrator modbus mrežni prolaz 24 VDC;PAS600L
EcoStruxure Panel Server - universal wireless, concentrator modbus gateway 24 VDC...
VAT-exclusive price: 79.181,00 |
VAT-inclusive price: 95.017,20 |
EcoStruxure Panel Server - universal wireless, concentrator modbus gateway 24 VDC
| range | EcoStruxure |
|---|---|
| product name | Panel Server Universal |
| product or component type | Gateway |
| device short name | PAS600L |
| device application | Gateway |
| [Us] rated supply voltage | 24 V DC |
| communication gateway |
Ethernet TCP/IP to wireless devices Ethernet/serial |
| communication network type |
Ethernet, 10/100BASE-T Wi-Fi2.4 GHz Bluetooth low energy (BLE) Wireless, IEEE 802.15.4 Modbus RTU, Modbus RTU master even/odd or none parity, at 1.2...115.2 kbit/s |
|---|---|
| communication port protocol |
Modbus TCP DHCP HTTPS NTP/SNTP IPv4 IPv6 TCP/IP |
| communication port support |
2 RJ45: Ethernet Screw terminal block: RS485 |
| number of slave |
128 Modbus RTU: 100 IEEE 802.15.4: |
| memory capacity | 512 MB NAND |
| number of inputs | 2 dry-contact/pulse |
| connections - terminals |
Discrete I/O: screw terminal block (top) 0.14…1.5 mm² cable(s) Power supply: screw terminal block (top) 1.5…2.5 mm² cable(s) Communication: screw terminal block (bottom) 0.14…1.5 mm² cable(s) |
| tightening torque |
Discrete I/O: 0.25 N.m Power supply: 0.6 N.m Communication: 0.25 N.m |
| wire stripping length |
Power supply: 7 mm Communication: 7 mm Discrete I/O: 7 mm |
| connector type | RP-SMA antenna |
| mounting mode | Clip-on |
| mounting support | DIN rail |
| product certifications |
CE cULus RCM UKCA FCC IC |
| standards |
IEC 61010 IEC 61010-1 IEC 61010-2-201 UL 61010 UL 61010-1 UL 61010-2-201 CSA C22.2 No 61010-1-12 CSA C22.2 No 61010-2-201 IEC 62974-1 IEC 62443-4-1 IEC 61326-1 EN 301-489-1 EN 301-489-17 EN 55032 CISPR 11 EN 300-328 IEEE 802.15.4 IEEE 802.11b/g/n |
| depth | 70.2 mm |
| height | 85 mm |
| width | 72 mm |
| function available |
Embedded web page for configuration and upgrade Diagnosis capabilities Diagnostic report Diagnostics on communication Energy management With integrated web server Event Logger Energy and alarm reports via email Firmware update Backup/restore configuration Configurable event CSV export |
| product specific application | Wireless Schneider Electric devices ecosystem |
| topology |
Separate Ethernet network Switched Ethernet network |
| web services | HTTPS server |
| communication service |
Device Profile for Web Services (DPWS) Modbus TCP client Modbus TCP server SNTP client DHCP client DHCP server |
| commissioning interface |
EcoStruxure Power Commission Mobile Web page |
| realtime clock |
With RTC-battery set Without any user calibration |
| time synchronisation protocol |
NTP SNTP |
| range compatibility |
Facility Expert Building Operation Power Operation Power Monitoring Expert Asset Advisor |
| relative humidity | 5…95 % |
|---|---|
| IP degree of protection |
IP40 (front face) IP20 (casing) |
| ambient air temperature for operation | -25…70 °C |
| ambient air temperature for storage | -40…85 °C |
| pollution degree | 3 |
| operating altitude | 0...2000 m |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 267.0 g |
| Package 1 Height | 9 cm |
| Package 1 width | 8.5 cm |
| Package 1 Length | 11 cm |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 27 |
| Package 2 Weight | 7.89 kg |
| Package 2 Height | 30 cm |
| Package 2 width | 30 cm |
| Package 2 Length | 40 cm |
| Package 3 Height | 73.5 cm |
