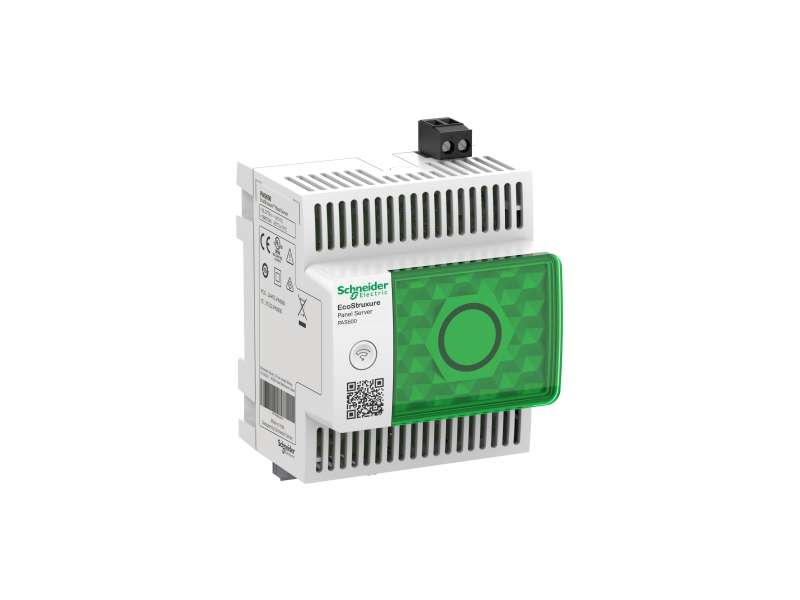

Schneider Electric EcoStruxure Panel Server - univerzalni bežični, koncentrator modbus mrežni prolaz 110-240 VAC/DC; PAS600T
EcoStruxure Panel Server - universal wireless, concentrator modbus gateway 110-240 VAC/DC...
VAT-exclusive price: 80.782,00 |
VAT-inclusive price: 96.938,40 |
EcoStruxure Panel Server - universal wireless, concentrator modbus gateway 110-240 VAC/DC
| Range | EcoStruxure |
|---|---|
| Product name | Panel Server Universal |
| Product or component type | Gateway |
| device short name | PAS600T |
| Device application | Gateway |
| [Us] rated supply voltage |
110...240 V AC 50/60 Hz 110...240 V DC |
| Communication gateway |
Ethernet TCP/IP to wireless devices Ethernet/serial |
| communication network type |
Ethernet, 10/100BASE-T Wi-Fi2.4 GHz Wireless, IEEE 802.15.4 Modbus RTU, Modbus RTU master even/odd or none parity, at 1.2...115.2 kbit/s |
|---|---|
| communication port protocol |
Modbus TCP DHCP HTTPS NTP/SNTP IPv4 IPv6 TCP/IP |
| communication port support |
2 RJ45: ETHERNET Screw terminal block: RS485 |
| number of slave |
64 Modbus RTU: 40 IEEE 802.15.4: |
| memory capacity | 512 MB NAND |
| number of inputs | 0 |
| connections - terminals |
Power supply: screw terminal block (top) 1.5…2.5 mm² cable(s) Communication: screw terminal block (bottom) 0.14…1.5 mm² cable(s) |
| tightening torque |
Power supply: 0.6 N.m Communication: 0.25 N.m |
| wire stripping length |
Power supply: 7 mm Communication: 7 mm |
| connector type | RP-SMA antenna |
| Mounting mode | Clip-on |
| Mounting support | DIN rail |
| Product certifications |
CE cULus RCM UKCA FCC IC |
| standards |
IEC 61010 IEC 61010-1 IEC 61010-2-201 UL 61010 UL 61010-1 UL 61010-2-201 CSA C22.2 No 61010-1-12 CSA C22.2 No 61010-2-201 IEC 62974-1 IEC 62443-4-1 IEC 61326-1 EN 301-489-1 EN 301-489-17 EN 55032 CISPR 11 EN 300-328 IEEE 802.15.4 IEEE 802.11b/g/n |
| Width | 72 mm |
| Function available |
Embedded web page for configuration and upgrade Diagnosis capabilities Diagnostic report Diagnostics on communication Energy management With integrated web server Firmware update Backup/restore configuration Configurable event CSV export |
| Product specific application | Wireless Schneider Electric devices ecosystem |
| Topology |
Separate Ethernet network Switched Ethernet network |
| Web services | HTTPS server |
| Communication service |
Device Profile for Web Services (DPWS) Modbus TCP client Modbus TCP server SNTP client DHCP client DHCP server |
| Commissioning interface |
EcoStruxure Power Commission Mobile Web page |
| Realtime clock |
With RTC-battery set Without any user calibration |
| Time synchronisation protocol |
NTP SNTP |
| range compatibility |
EcoStruxure (Facility Expert) EcoStruxure (Building Operation) EcoStruxure (Power Operation) EcoStruxure (Power Monitoring Expert) EcoStruxure (Asset Advisor) |
| relative humidity | 0…93 % |
|---|---|
| IP degree of protection |
IP40 (front face) IP20 (casing) |
| Ambient air temperature for operation | -25…70 °C |
| Ambient air temperature for storage | -40…85 °C |
| Pollution degree | 2 |
| Operating altitude | < 2300 m |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 8.5 cm |
| Package 1 Width | 9.0 cm |
| Package 1 Length | 11.0 cm |
| Package 1 Weight | 289.0 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 27 |
| Package 2 Height | 30 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 8.407 kg |
